Tinyhawk II All-in-One Flight Controller

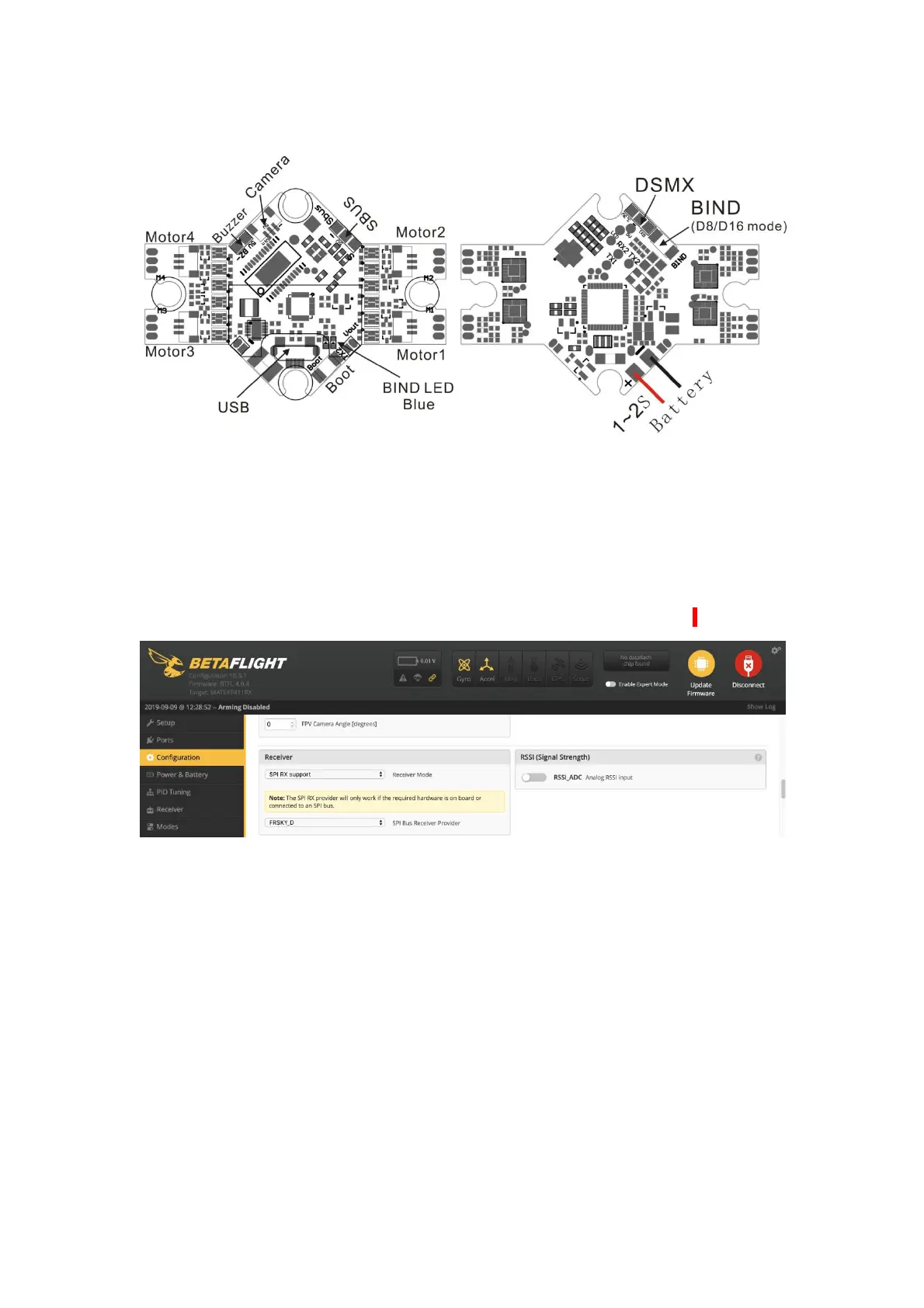

Tinyhawk II’s main electronic board is shown above. This board contains a F4 flight
controller with all 4 esc’s and an 8CH receiver.
Emax On-Board Receiver
The receiver is integrated into the main flight controller board and is set up via
betaflight.
Number of Channels: 8CH
Compatibility: Receiver mode is SPI RX default protocol is FrSky_D (D8).
NOTE: It is also compatible with Frsky_X (D16) but for best performance it is
recommended to use Frsky_D and set “Telemetry” OFF on your radio.
Binding Procedure
Binding is the process of uniquely associating a receiver to a transmitter module. A
transmitter module can be bound to multiple receivers (not to be used
simultaneously). A receiver can only be bound to one transmitter module.
1.Hold the bind button for 2 seconds while the flight controller is already on. When
the RED LED is flashing, it means the receiver is in BIND MODE
2.Turn on the transmitter, make sure it is set to D8 mode, and then set it into bind
mode. When the BLUE LED on the flight controller starts flashing, it means bind
successful.
3.Power cycle the flight controller and take your radio out of bind mode.
Alternate Binding Method
