Nighthawk Pro
www.emaxmodel.com
１３
Inclined Motor Mounting Base
（1）Install motor to inclined motor mounting base. (Please install the M1-M4 motor to the corresponding position,
M1-M4 is indicated at the motor base)
（2）Use M3x7mm steel screws to secure the motors
（3）Install inclined motor mounting plate to the motor arm plate.
（4）Use M2.5x8mm stainless steel screw to secure
After installation completed, all motors should be inclined to the same angle. If any motor is not level, check motor and
motor mount.

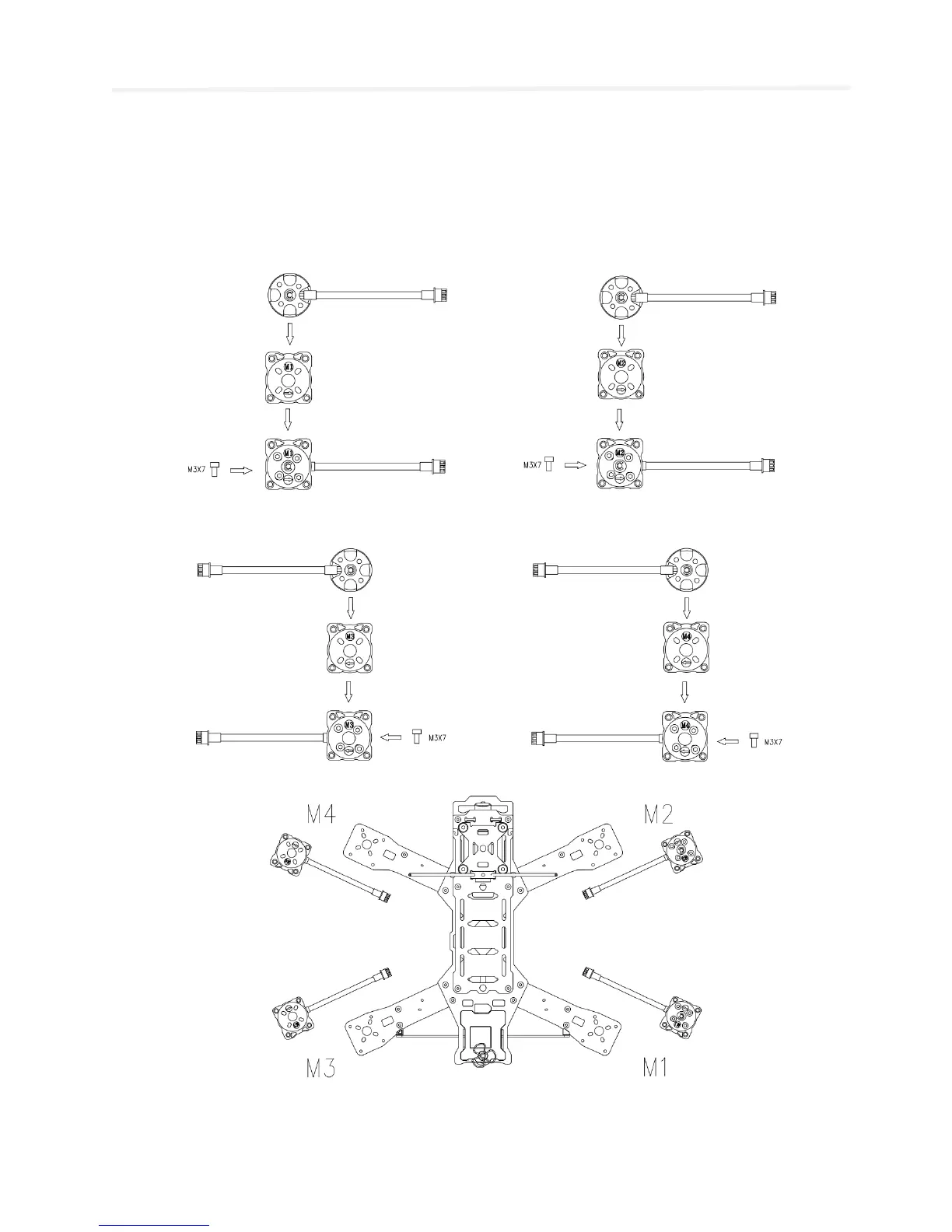

M1 Install Motor inclined mount M2 Install Motor inclined mount
M3 Install Motor inclined mount M4 Install Motor inclined mount
、
Install motors
To Next Page
