emax-usa.com
Tinyhawk III Plus
30
4.Tinyhawk III Plus

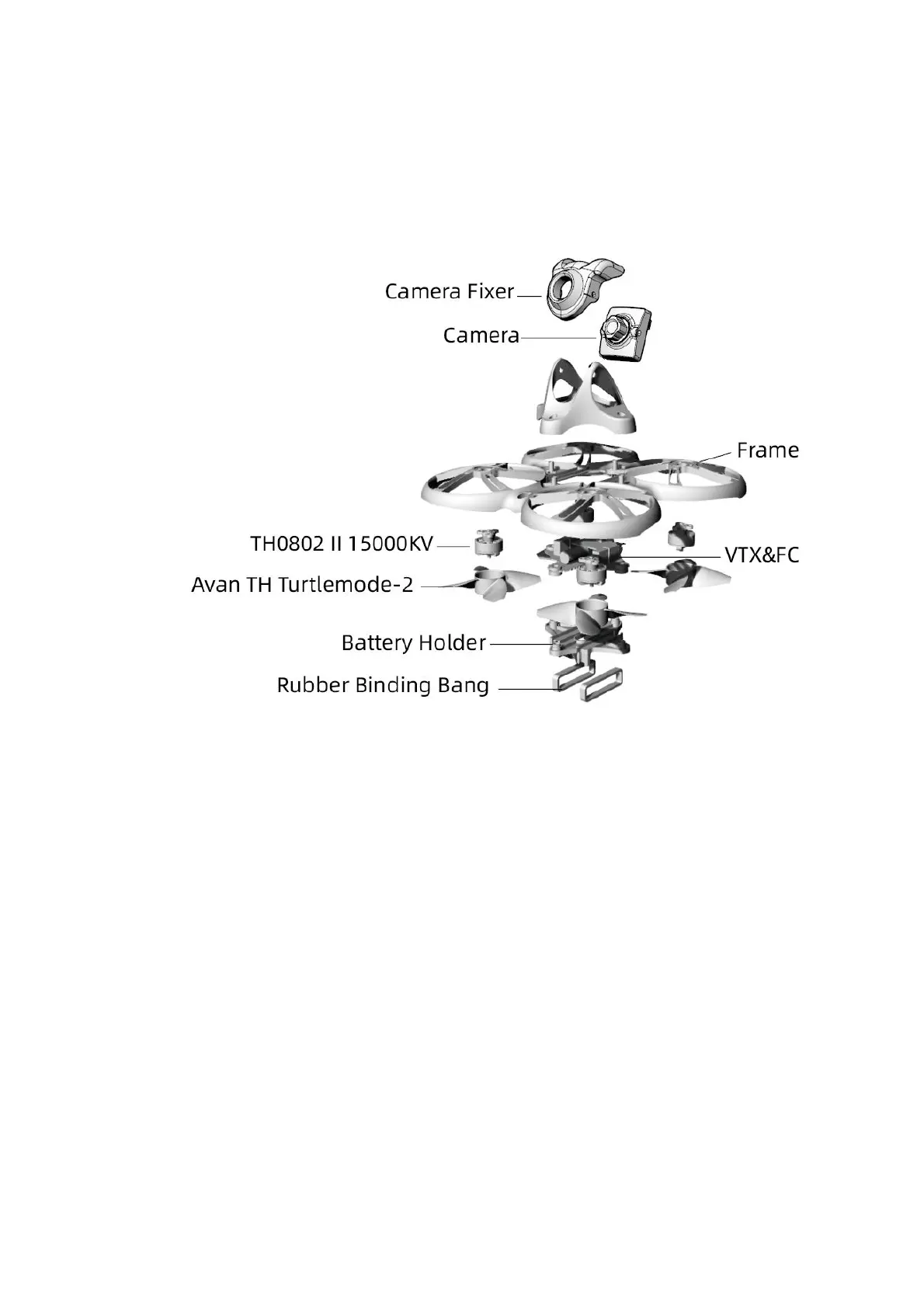

4.1Tinyhawk III Plus
4.2 Tinyhawk III Plus Propellers
Tinyhawk III Plus propellers come in two rotation directions: Clockwise (CW)
and Counterclockwise (CCW). When purchasing a set of propellers, ensure you
buy 2 propellers of each rotation direction (2 CW and 2 CCW). The propellers
rotate along the blunt edge. When installing the propellers, follow the correct
orientation as shown in the diagram.
1. Propeller Installation Align the three tabs of the propeller with the
three tabs of the motor, supporting the motor from behind. Press the propeller
blades in with your hand until they are flush with the motor shaft.
Warning: Incorrect propeller installation can lead to improper flight and
loss of control of the Tinyhawk III Plus. Double-check the propeller orientations
for accuracy. If the motor is not supported properly, it might lead to frame
breakage. Always prioritize safety when installing propellers.
