14
EMC Rails and Enclosures (CX3-10 Class and CX3-20 Class Storage Systems) Field Installation Guide
Installing a 1U SPS tray and SPS units in a cabinet
SPS mounting kit
The SPS mounting kit includes the components listed in Table 4.
.

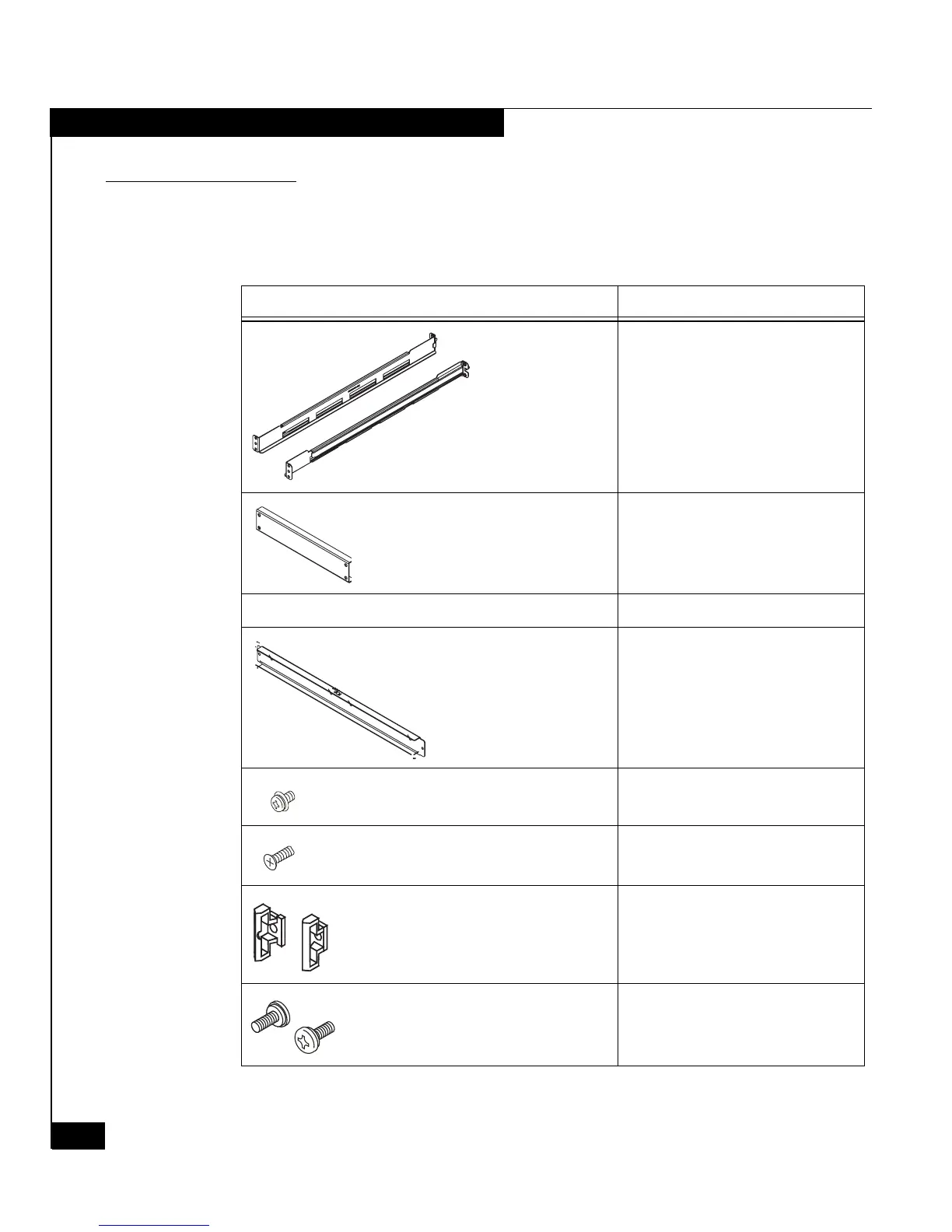

Table 4 SPS mounting materials
Component Use
2 adjustable
(20.5-34 inches) rails
Attach front to back on either side
between NEMA channels in a 40U
cabinet
SPS B filler unit
For configurations with a single SPS
unit, covers opening in back of tray
SPS tray - see Figure 10 on page 17 For one or two SPSs
Front fastener bracket
Secure SPS units to tray
M4 x 8-mm panhead screw, lock washer,
and flat washer assemblies
8 for back of tray
M4 x 10-mm flathead screws
6 for front of tray and fastener bracket
2 latch brackets
Secure 1U bezel in 40U cabinets
10 Phillips M5 x 16-mm panhead screws
(black)
Attach the rail mounting hardware in a
40U cabinet
EMC3298
