Installing a 1U SPS tray and SPS units in a cabinet
Installing the latch brackets and bezel
This section describes how to install latch brackets and the bezel they
support.
1. Use one Phillips M5 x 16-mm screw to secure a latch bracket to
each front channel. (The brackets include small alignment bumps
to correctly orient them to the channel.) See Figure 8.
2. Press the bezel onto the latch brackets until it snaps into place. See
Figure 8.

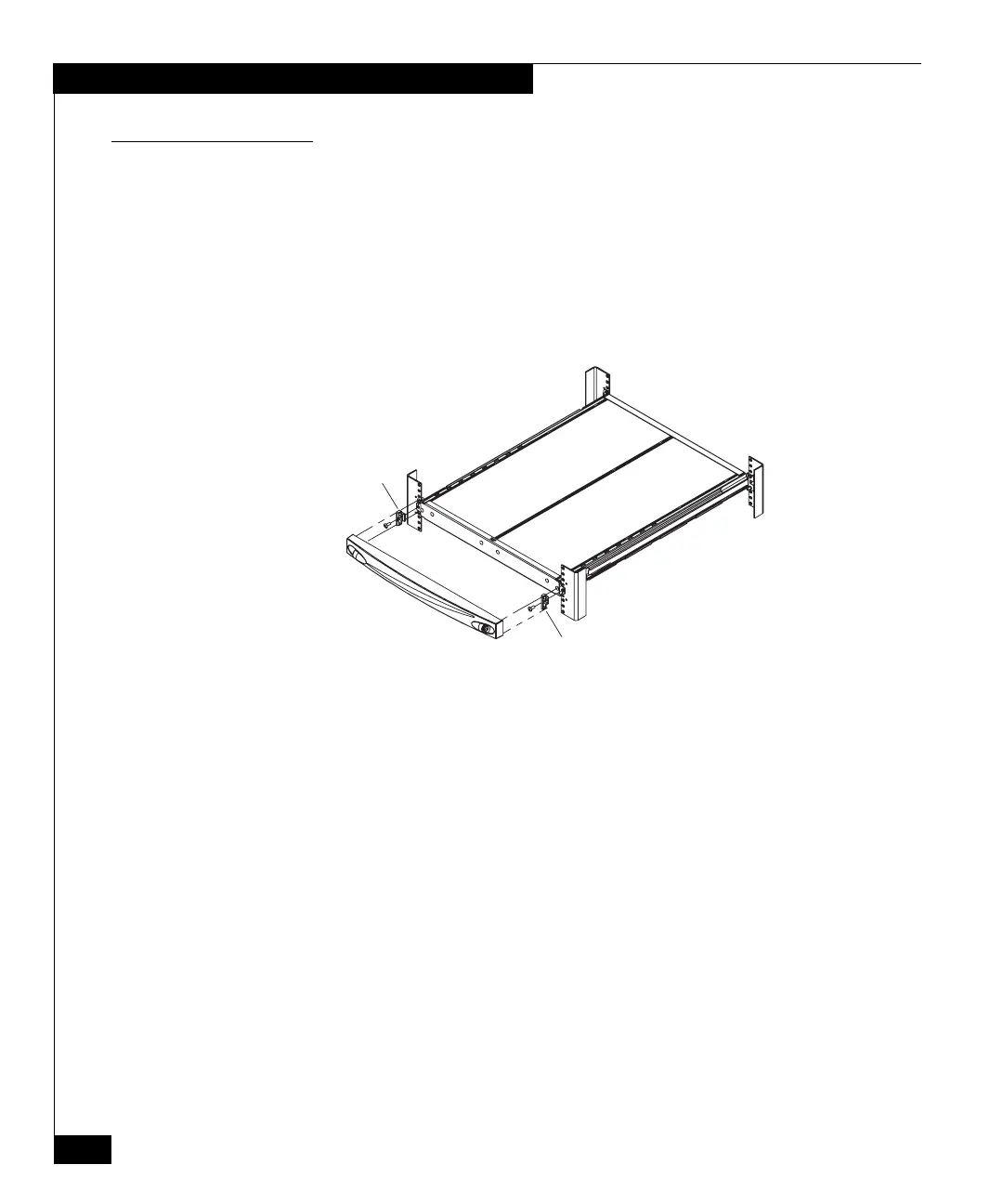

Figure 8 Installing the latch bracket and bezel
You have installed an SPS tray and SPS units in the cabinet.
If you are installing another device in the cabinet, continue with the
appropriate instructions. For example, to add a storage processor
enclosure above the SPS you just installed, refer to “Installing a 4U
storage processor enclosure (SPE) in a cabinet” on page 40.
Next, cable the enclosures and SPS units as described in the
appropriate setup guide.
