EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
Installing a 2U SPS tray (106-561-015) and SPS units in a cabinet
Installing a 2U SPS tray (106-561-015) and SPS units in a cabinet
This section describes how to install a Model 106-561-015 2U SPS
(standby power supply) tray in the cabinet. If you received a model
100-561-369 tray kit, use the instructions starting on page 20.
SPS mounting kit
The SPS mounting kit includes the components listed in Table 6.

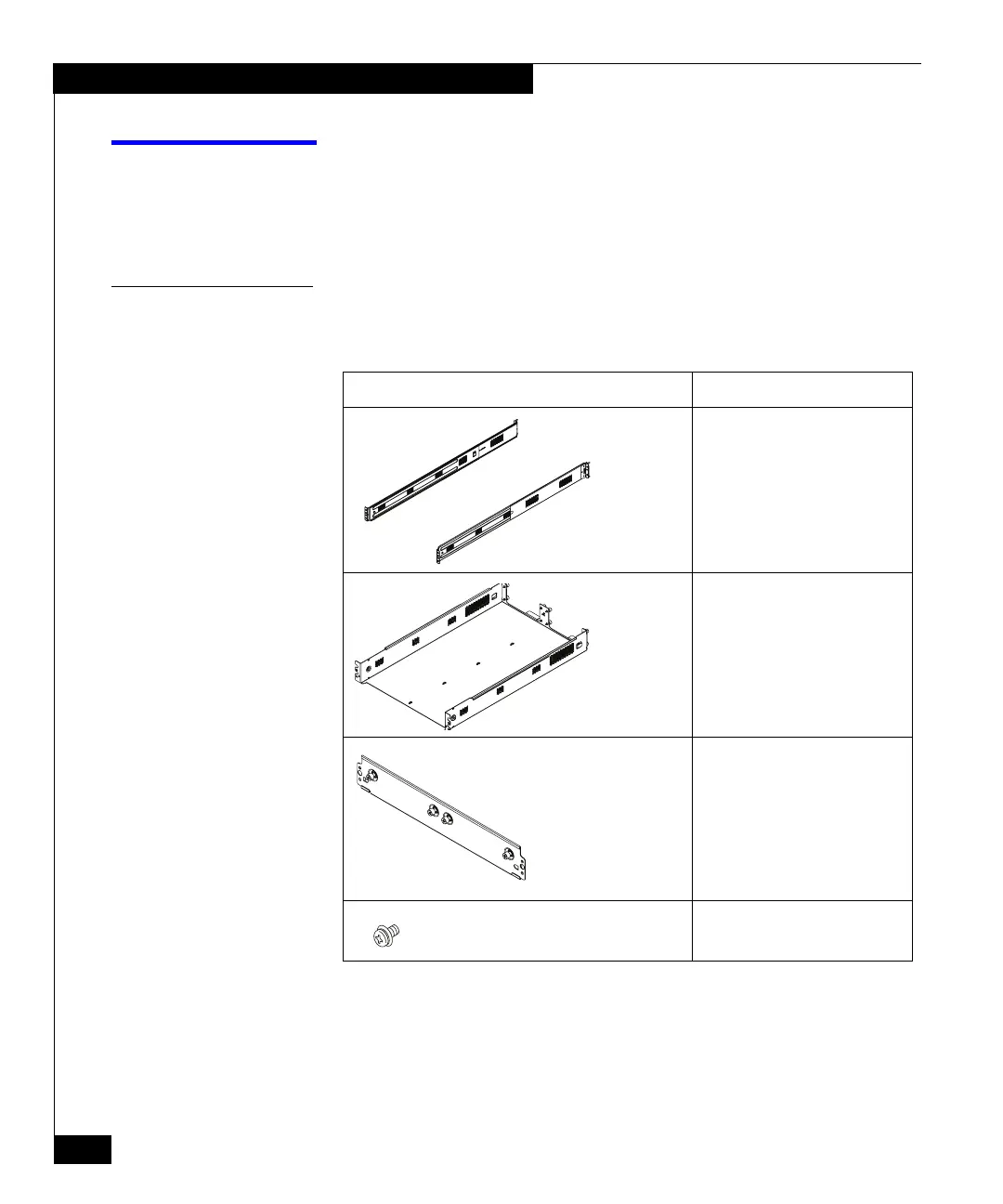

Table 6 SPS mounting materials (Model 106-561-015)
Component Use
2 adjustable
(20.5-30
inches) rails
Attach front to back on either side
between NEMA channels
SPS tray Supports two SPS units
Front fastener bracket Secure SPS units to tray
M5 x 10-mm panhead screw, lock washer,
and flat washer assemblies
Secure tray to rails,
CL4098
(L)
R
CL4097
CL4083
