EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
Installing a 2U SPS tray (106-561-015) and SPS units in a cabinet
3. Tighten the eight captive thumbscrews (shown in Figure 31) that
secure the SPS units to the back of the tray.

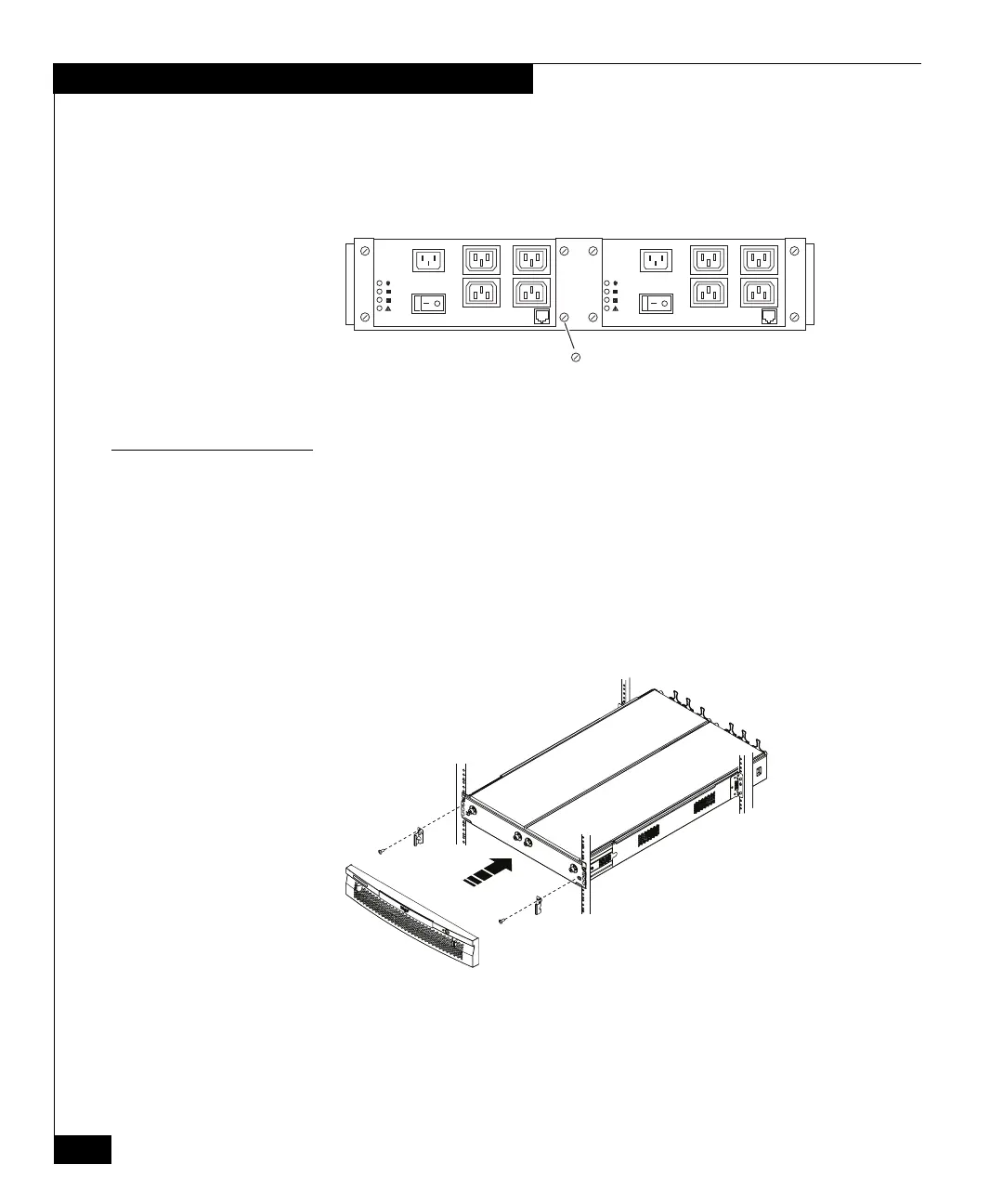

Figure 31 Securing the 2U SPS rear
Installing latch brackets and bezel
This section describes how to install the latch brackets and the bezel
they support.
1. Use four Phillips M4 x 10-mm screws to secure latch brackets on
each side of the front fastening bracket. (The brackets are stamped
L and R for correct orientation.) See Figure 32.
2. Press the bezel onto the latch brackets until it snaps into place.
Figure 32 Installing the latch brackets and bezel
You have installed an SPS tray and SPS units in the cabinet.
CL4102
CL4103
