EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
Installing a 4U storage processor enclosure (SPE) in a cabinet

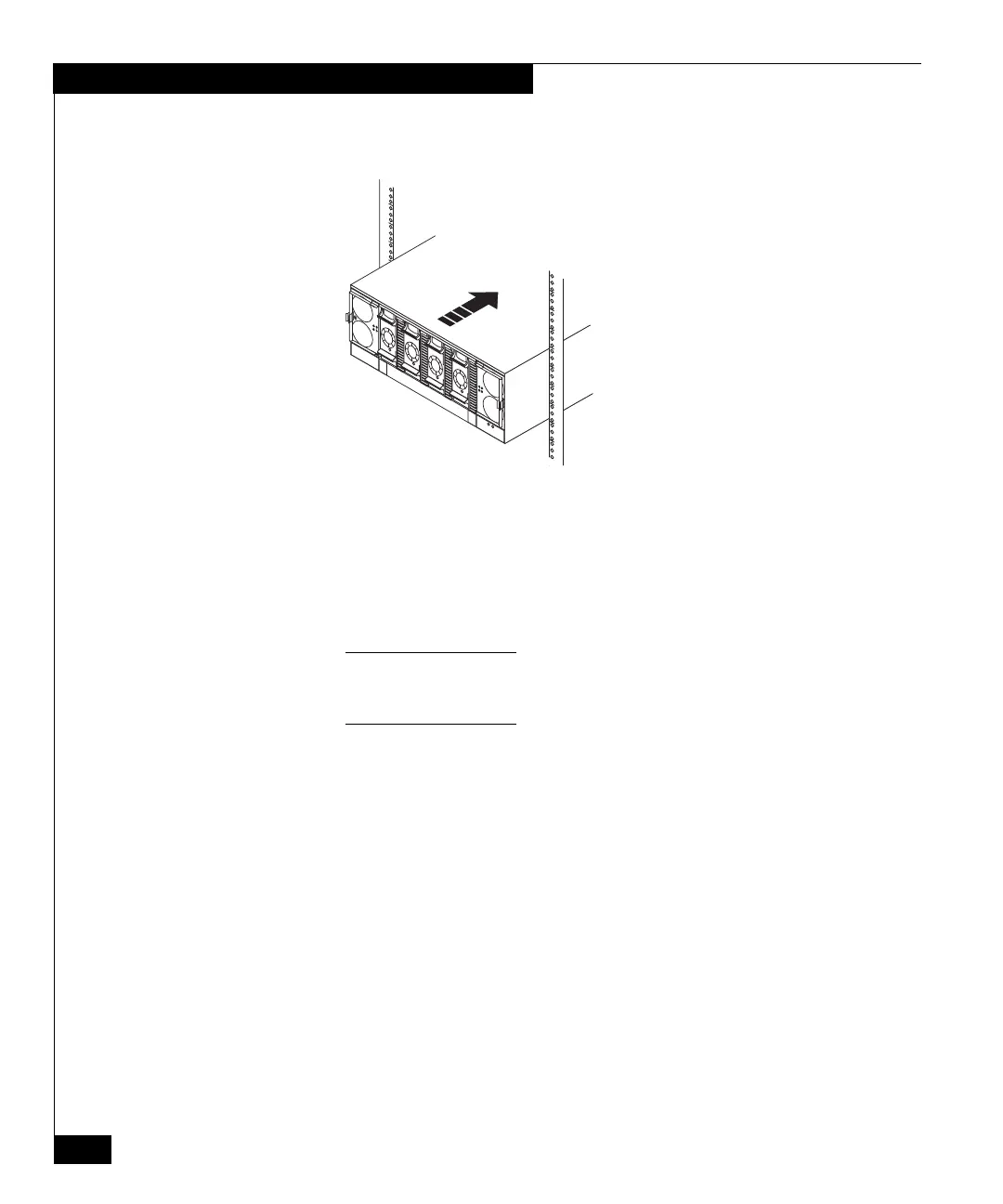

Figure 36 Sliding a 4U enclosure onto the mounting rails
When the enclosure slides to the back of the cabinet, the two
notches in the rear of the enclosure insert into the rear tabs on the
back corner of each rail. The tabs secure and support the rear of
the enclosure.
Note: If the chassis does not slide all the way into the cabinet, you may need
to loosen the screws that hold the rear of the rails in place, then adjust the
rails to allow the tabs to fit into the notches.
2. Loosen the captive screws on the power supply to unlock the
handle. Extend the power supply handle to install three (3) 8x32
flathead screws to each side of the SPE. These screws secure the
SPE to the adjustable rails. Refer to Figure 37.
Repeat for the other side.
CL4073
Front
!
!
