Power considerations
DC-Powered VNX™ Series Enclosures Installation and Operation Guide 7

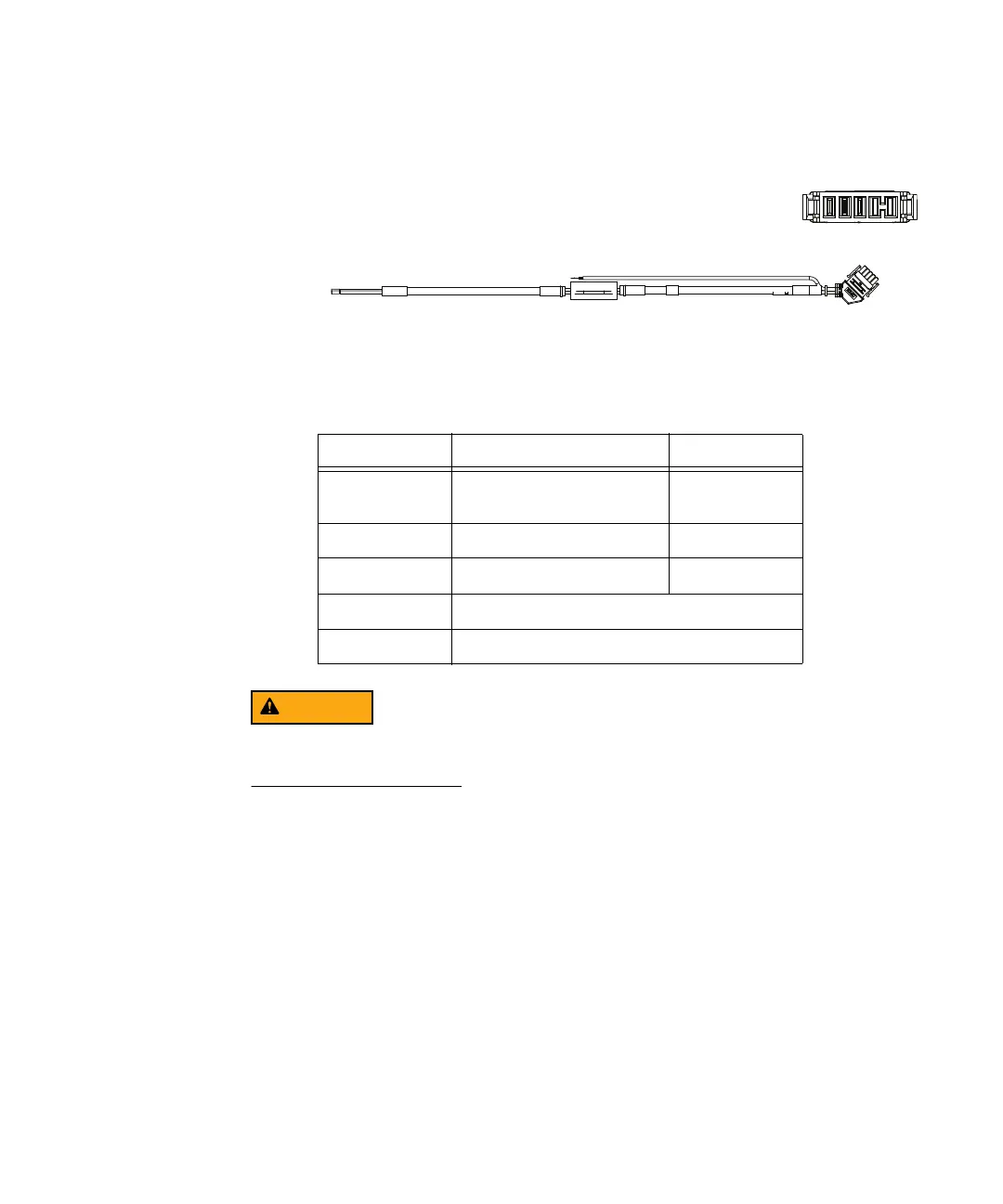

Figure 2 shows the power cord provided by EMC for DC-powered data mover (blade)
enclosures. Table 6 describes the pin outs.
Figure 2 Data Mover power cord
The data mover power cord is not repairable, and the integrated fuse is not
replacable. Should any cord component fail, you must replace the entire power cord.
15
CL4931
Table 6 Cabling pinout (Molex)
P1 designation Description Wire color
1 DC negative (-)-48 V fused
line
Brown
2 DC positive (+) Black
3 Chassis ground Green/Yellow
4—
5—
