EMC VNX5300 - Data Mover Management Module Serial Console Connector

EMC® VNX5300™ Hardware Information Guide
40
EMC® VNX5300™ Hardware Information Guide
Data Mover management module serial console (DB-9) socket connector
The back of the Block and File VNX5300 platform Data Mover management module
includes a standard serial console Electronics Industries Association (EIA) RS-232
interface (DB-9) socket connector (labeled with a wrench tool icon on the left). Notice
the orientation of the pins (Figure 39).

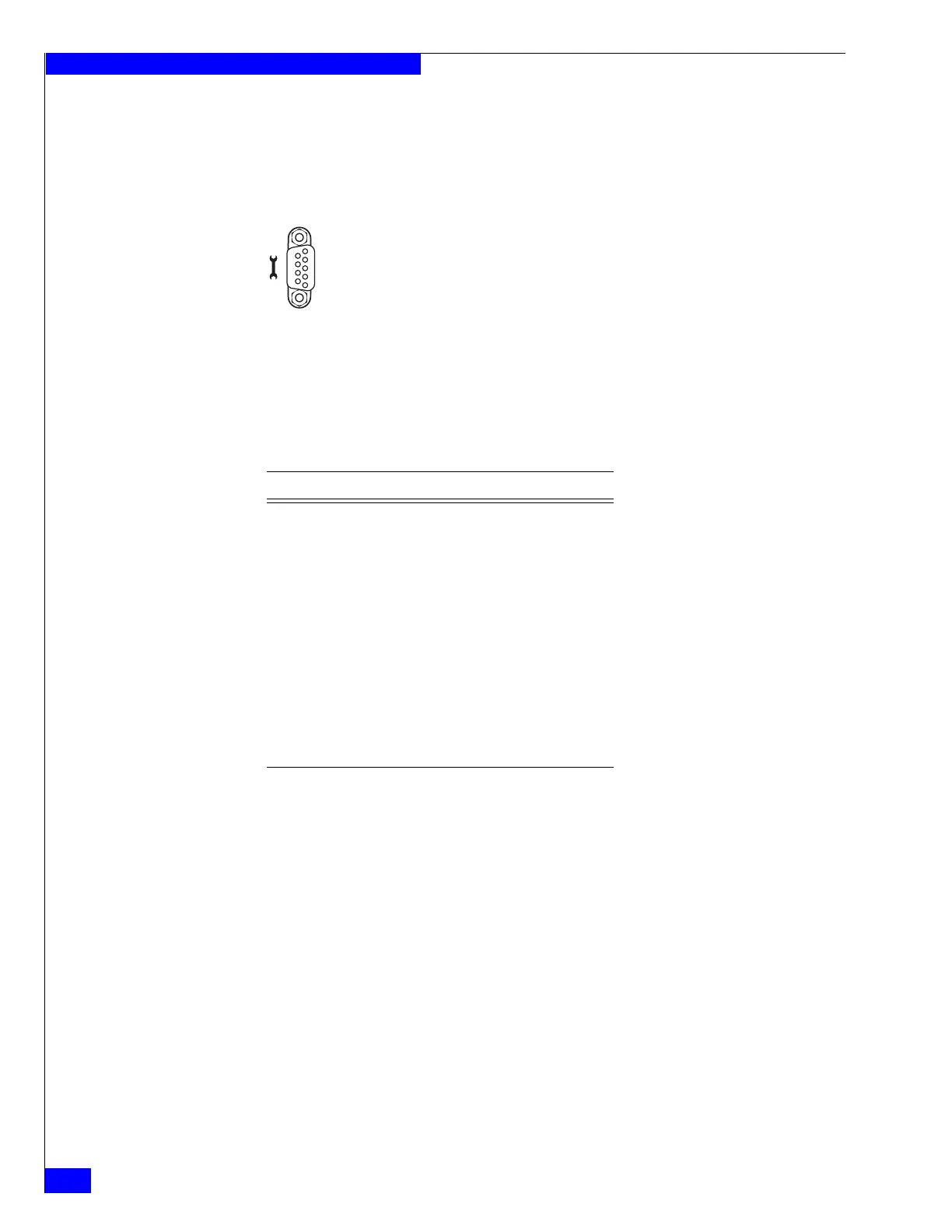

Figure 39 Data Mover management module serial console (DB-9) socket connector
Table 27 lists the Data Mover management module Ethernet (DB-9) pin signals used
on the connector.
CNS-001753
Pin 1
5
9
6
Table 27 Data Mover management module (DB-9) socket connector pinout
DB-9 Pin Signal Description
1 CD Carrier detect
2 TXD Transmitted data
3 RXD Received data
4 DTR Data terminal ready
5 GND Ground
6 DSR Data set ready
7 RTS Clear to send
8 CTS Request to send
9 RI Ring indicator
