Emerson 1410 - Page 10

October 2014
10
Quick Start Guide

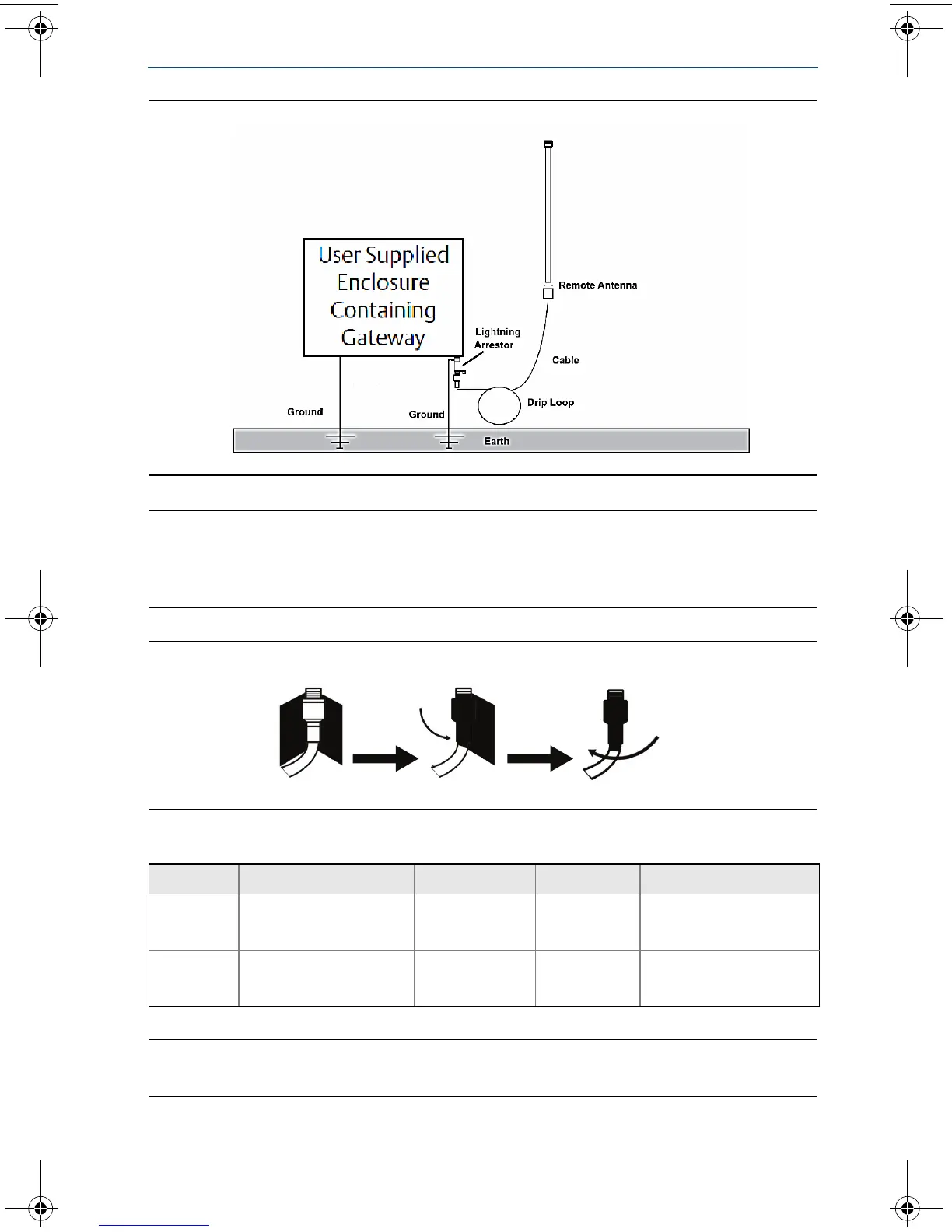

Figure 3. Installation of WL2/WN2 Option
Note: Weather proofing is required
The remote mount antenna kit includes coaxial sealant for the cable connections for the lightning
arrestor, antenna, and Gateway. The coaxial sealant must be applied to guarantee performance of
the wireless field network. See Figure 4 for details on how to apply weather proofing.
Figure 4. Applying Coaxial Sealant to Cable Connections
Note
For installing the Smart Wireless Field Link, see reference document 00825-0100-4421.
Table 3. Remote Antenna Kit Options
Kit option Antenna Cable 1 Cable 2 Lightning arrestor
WL2
1
/2 Wavelength Dipole
Omni-Directional
+6 dB Gain
50 ft. (15,2 m)
LMR-400
N/A
Head mount, jack to plug
Gas discharge tube
0.5 dB insertion loss
WN2
1
/2 Wavelength Dipole
Omni-Directional
+8 dB Gain
25 ft. (7,6 m)
LMR-400 N/A
Head mount, jack to plug
Gas discharge tube
0.5 dB insertion loss
