October 2014
12
Quick Start Guide

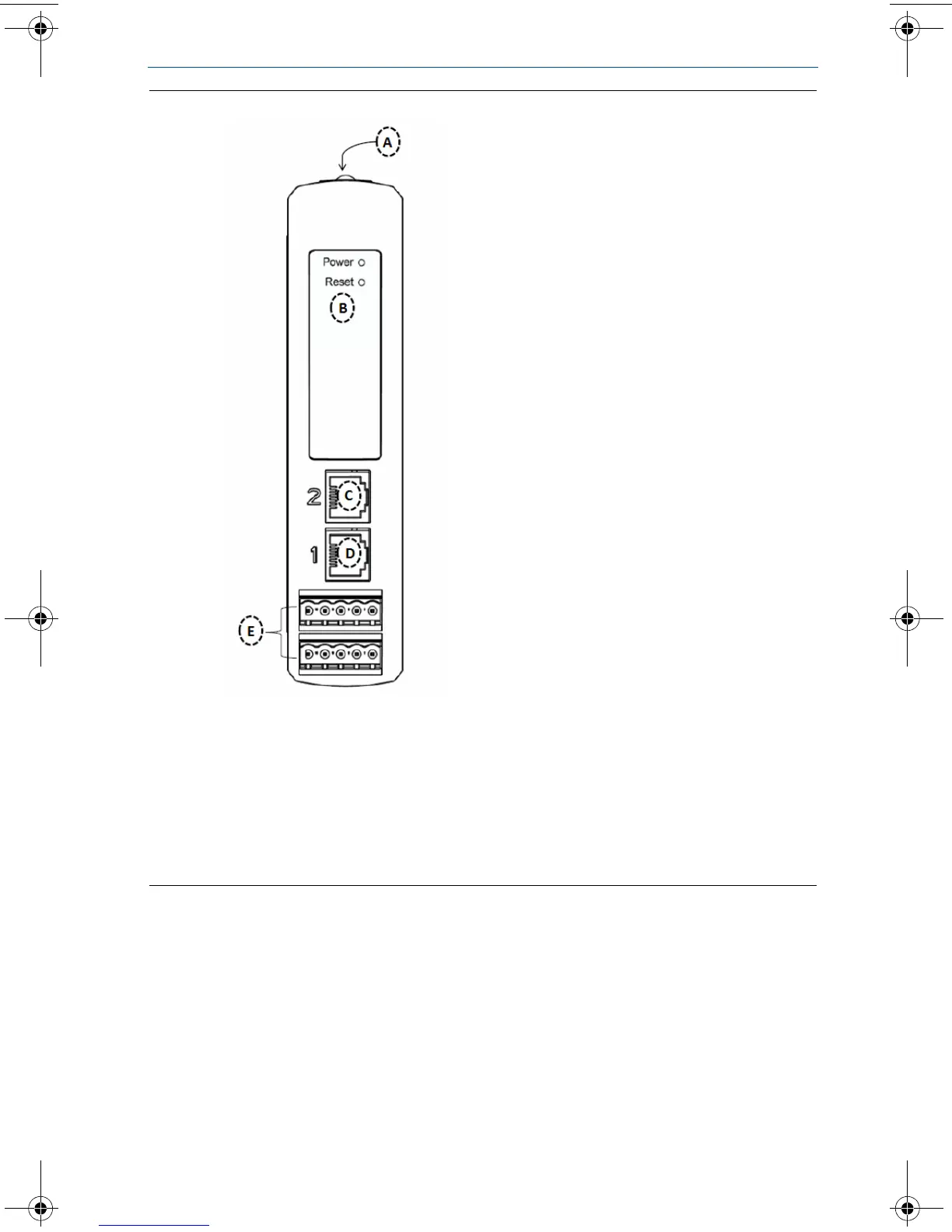

Figure 6. 1410D Housing Diagram
A. DIN Rail clip
B. Power and Reset indicator lights. During normal operation the power indicator will be green.
During a reset the reset light will turn red. The reset switch should not be enabled during normal
operation.
C. Ethernet port 2. Must have this port enabled when ordered to access. The factory IP address is
192.168.2.10. See Table 2 on page 8.
D. Ethernet port 1. Use for standard communication to the webserver or other protocols enabled
on the gateway. The factory IP address is 192.168.1.10. See Table 2 on page 8.
E. 5-screw analog terminal blocks female for power and field link connection. See below for the
wiring diagram of the included male connectors.
Best practice
Twisted shielded pair cable is generally used to wire the Serial connection, and it
is standard practice to ground the shield on the Serial Host side leaving the shield
floating on the Gateway side. To avoid grounding issues be sure to insulate the
shield.
Power
Wire a 24 VDC (nominal) Class 2 power source, with at least 250 mA of current, to
the power terminals using the Gateway Terminal Block Diagram shown in
Figure 5.
