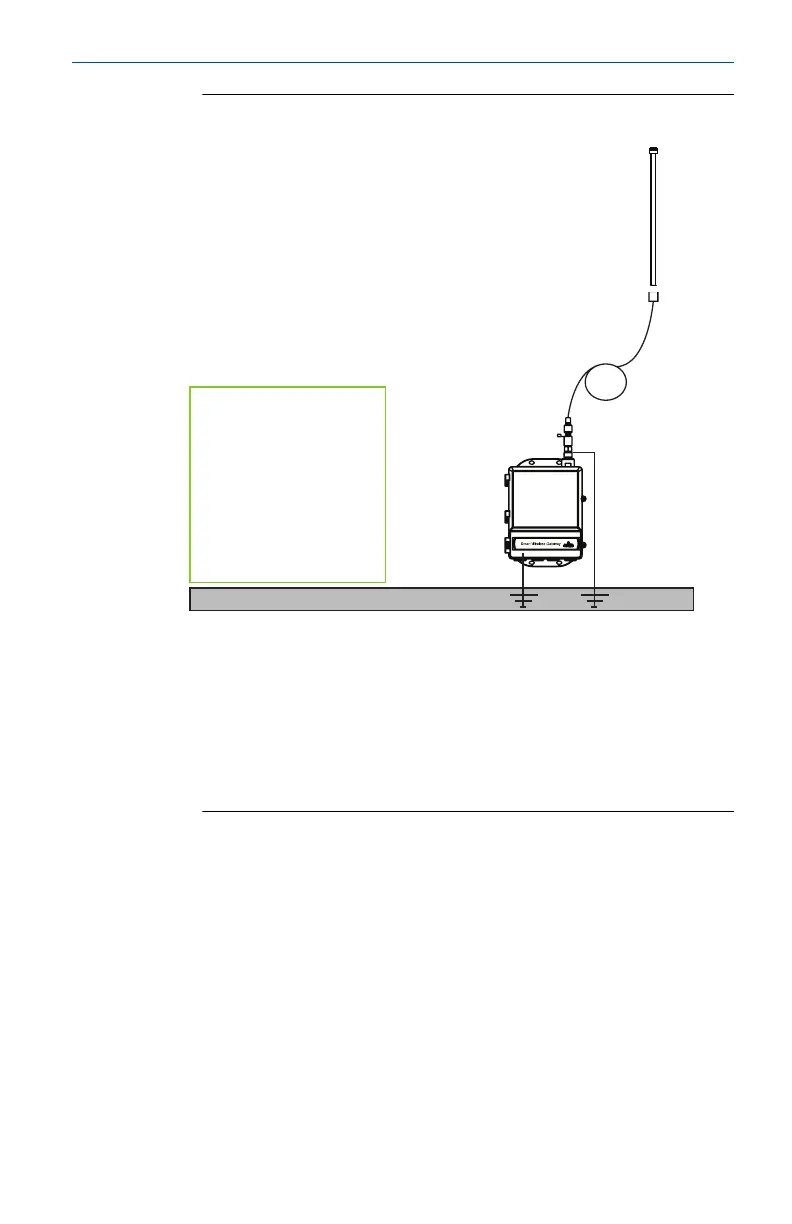

Figure 4-1: Installation of WL2/WN2 Option
A Control building
B Remote antenna
C Cable
D Drip loop
E Lightning arrestor
F Gateway
G Ground
H Earth
4.4 Installation of WL3/WL4 option (indoor to outdoor
applications)
Procedure
1. Mount the antenna on a 1.5 to 2-in. pipe mast using the supplied
mounting equipment.
2. Mount the lightning arrestor near the building egress.
3. Install the grounding lug, lock washer, and nut on top of the lightning
arrestor.
