Smart Design Covers the Wall Marks of Others
No spackling or painting necessary because its smart design hides
wall marks left by the most popular mechanical thermostats. Plus it
has a lower profile!
Footprint
1 1/8"5 1/8"
Profile
3 3/4"
Series System Programs Power Source
Hardwired
90 - Premium
80 - Standard
70 - Economy
Single Stage
Multi-Stage
Heat Pump
Non-programmable
5/2 day
5/1/1 day
7 day
Battery
Hardwired/battery
Power stealing w/battery back-up
Application Guide
Dimensions
5.1"W x 3.75"H x 1.1"D
Electrical Specifications
Rating
0 to 30 VAC, 50/60 Hz or DC
0.05 to 1.0 Amp (load per terminal)
1.5 Amps maximum load (all terminals
combined)
Standard Systems
Single stage gas, oil, electric
Single stage heat pump
Millivolt compatible
Thermal Specifications
Setpoint Temperature Range: 45˚ to 90˚F
(7˚ to 32˚C)
Rated Differential: 0.6˚ to 1.9˚F with adjustable
anticipation
Operating Ambient Temperature: 32˚ to 105˚F
(0˚ to 40˚C)
Operating Humidity Range: 90%
non-condensing maximum
Shipping Temperature Range: -4˚ to 150˚F
(-20˚ to 65˚C)
For Additional Information
Visit www.white-rodgers.com
Accessories
Wall Plate F61-2510 with 2" x 4"
junction box adaptor (6.5"W x 4.5"H)
Wall Plate F61-2550 (6.5"W x 4.5"H)
Thermostat Guard F29-0231
(For additional guard options refer to White-Rodgers catalog.)
70 Series
®
White-Rodgers
1F78-144
Single Stage
Non-Programmable
1F78-151
Single Stage
2 Programs
WR-0464-2

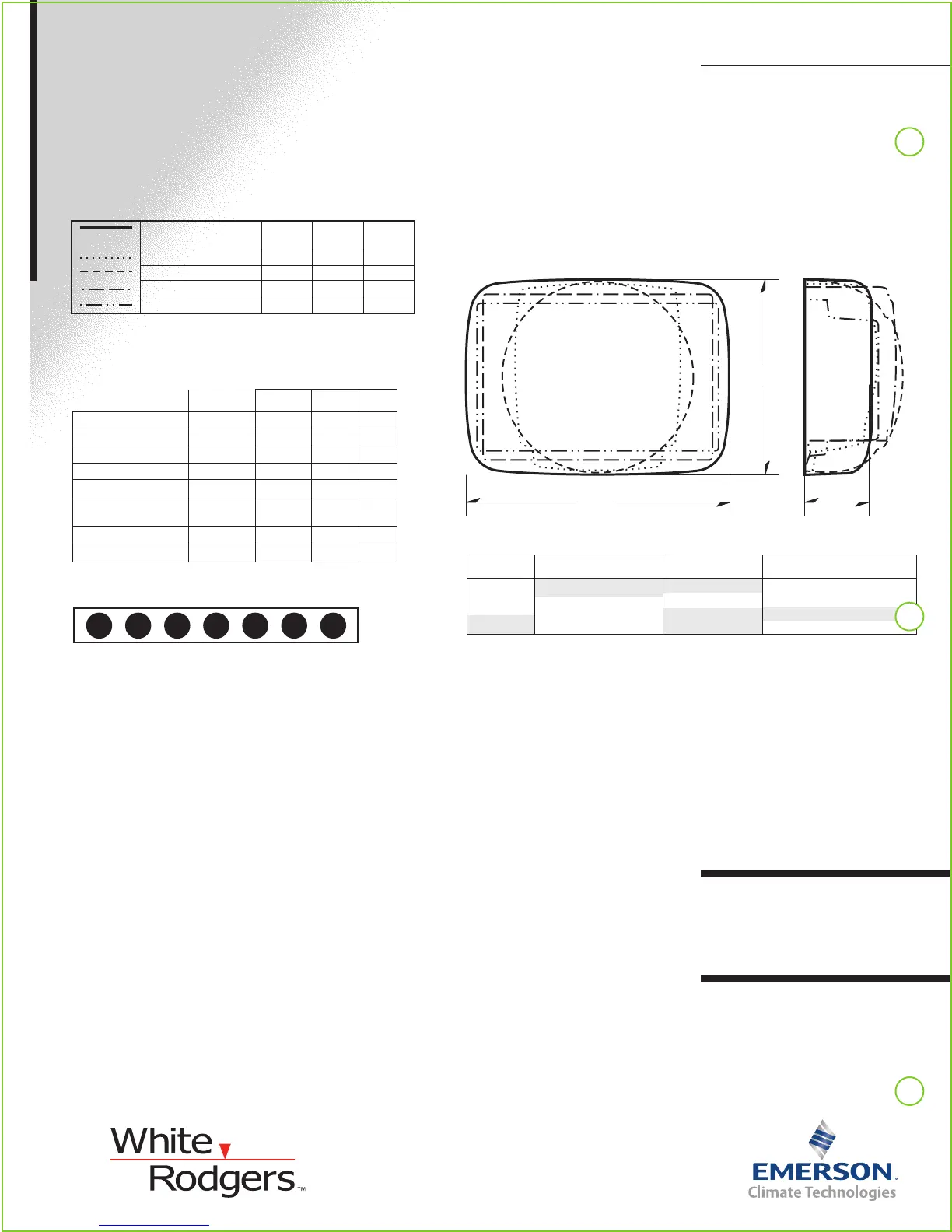

Mechanical Footprint Comparison Legend
White-Rodgers 1F78 Series
Digital Thermostat
Robertshaw 400 Series
Honeywell T87F w/subbase
White-Rodgers 1F56
Honeywell T8034
Height Width Depth
3 3/4
"
5 1/8
"
1 1/8
"
3 5/8
"
3 1/4
"
1 1/4
"
3 3/4
"
3 3/4
"
1 3/4
"
3 1/4
"
4 1/2
"
1 5/8
"
2 7/8
"
4 3/4
"
1 5/16
"
Terminal Designations
RC RH YWOGB
Economy Digital Thermostat
Feature Comparison
Feature
Model
White-Rodgers
1F78-151
Lux
PSP511
Large, Easy-to-Read LCD
Lighted Display
Easy to Program
Best in Class Accuracy
Millivolt Compatible
Single Stage Heat Pump
(B&O Terminals)
True 5/2 Day Programming
Soft-Touch Buttons
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Robertshaw
9600
CTC
43103
