Installation and Operation Manual
Part Number: VA001-507-32, Rev. 1
August 2016
Section 2: Installation
Installation
2.4.3.2
Horizontal Pipeline Horizontal Stem
The G4 – G7 Series actuators mounting on a horizontal pipeline with
a vertical valve stem should be supported using the lift lugs attached
to the drive module. A strap may be attached to the stabilization
tab on spring module to balance the unit while lifting. The weight of
the actuator must be supported by the lugs at drive module, not the
stabilization tab.
See Figure 5.

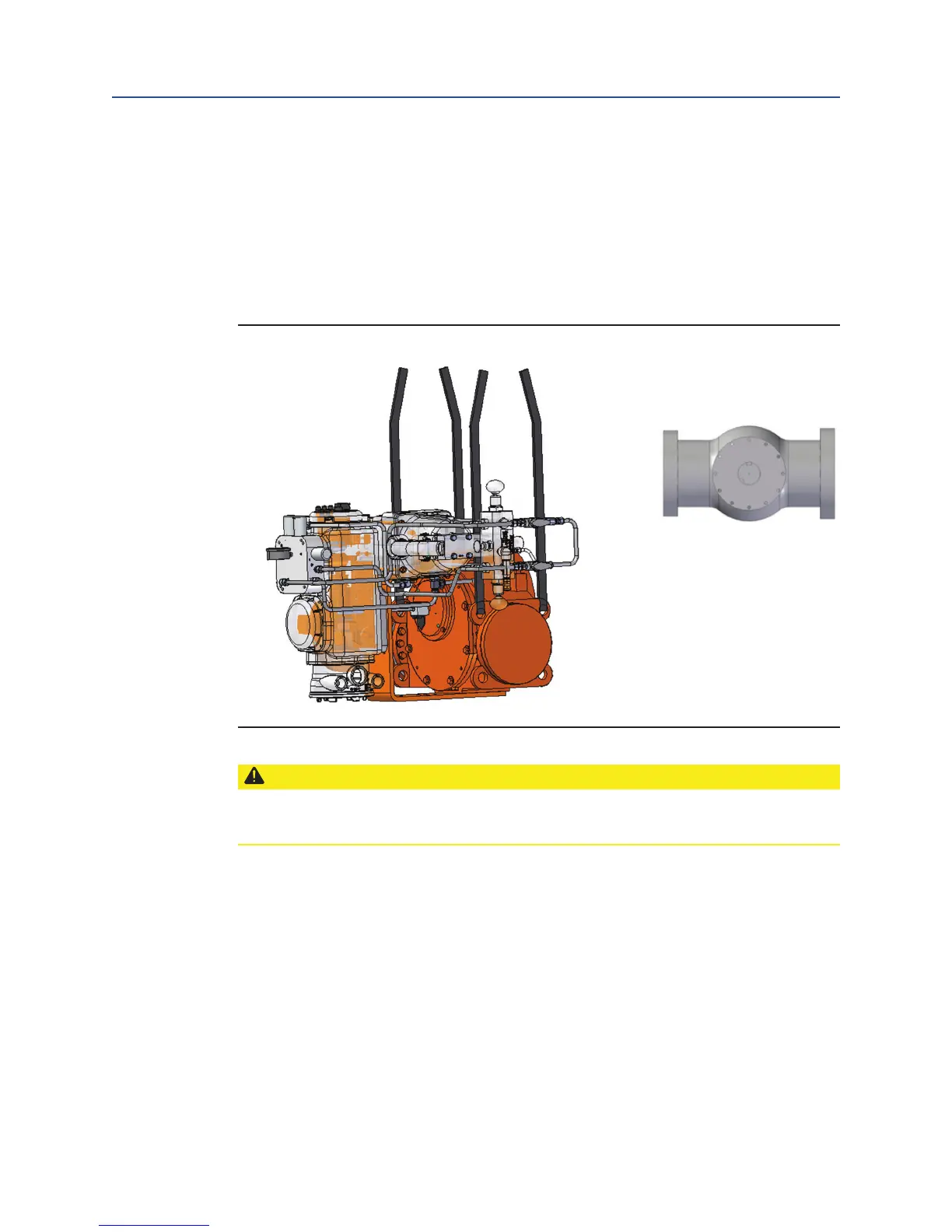

Figure 5 G4 – G7 with a Horizontal Pipeline and Horizontal Stem
CAUTION:
Never lift the actuator with a valve attached. Always handle actuator/valve assemblies
by attaching lifting equipment to the valve only.
