Emerson Bettis EHO - Section 10: Sample Wiring Diagram; 2-Way Electric Powered by an Electro-Hydraulic Power Unit

August 2016
Installation and Operation Manual
Part Number: VA001-507-32, Rev. 1
44
Section 10: Sample Wiring Diagram
Sample Wiring Diagram
Section 10: Sample Wiring Diagram
10.1 2-Way Electric Powered By an Electro-
Hydraulic Power Unit

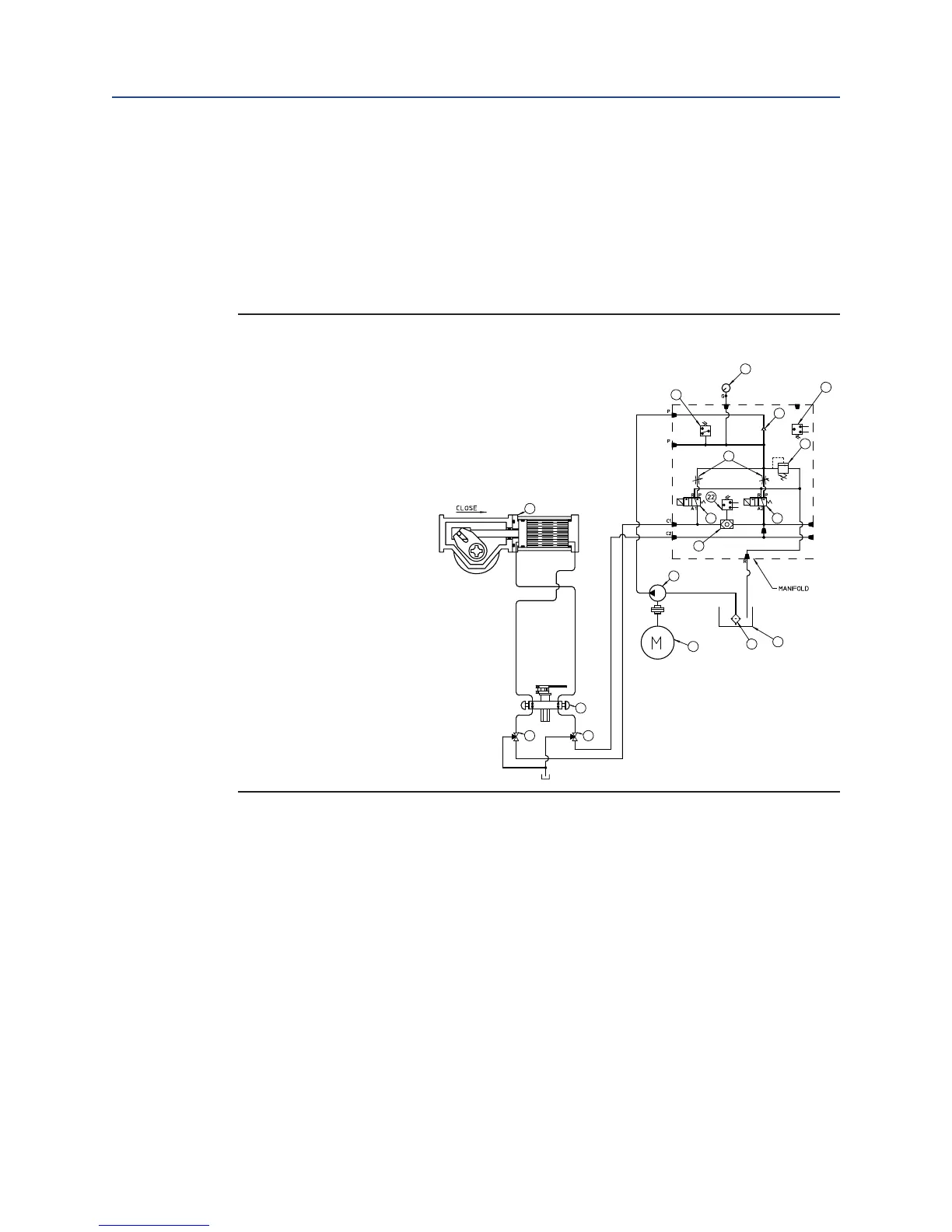

Figure 26 2-Way Electric Powered By an Electro-Hydraulic Power Unit
(Q) Hydraulic Pressure Gauge
(R) Pressure Switch
(S) Pressure Transmitter(Optional)
(T) Check Valve
(U) Relief Valve
(V) Adjustable Flow Controls
(W) Bettis G-series Double Acting Actuator
(J) Opening Solenoid
(K) Closing Solenoid
(X) Shuttle Valve(Optional)
(Y) Hydraulic Pump
(Z) Electric Motor
(AA) Suction Strainer
(I) Fluid Reservoir
(L) Hand Pump
(M) Hand Pump Selection Valves
M M
L
W
J
X
Y
Z
AA
I
K
R
Q
T
U
V
S
