May 2016
Installation and Operation Manual
Part Number: VA001-507-32, Rev. 1
20
Section 3: Electrical Connections
Electrical Connections

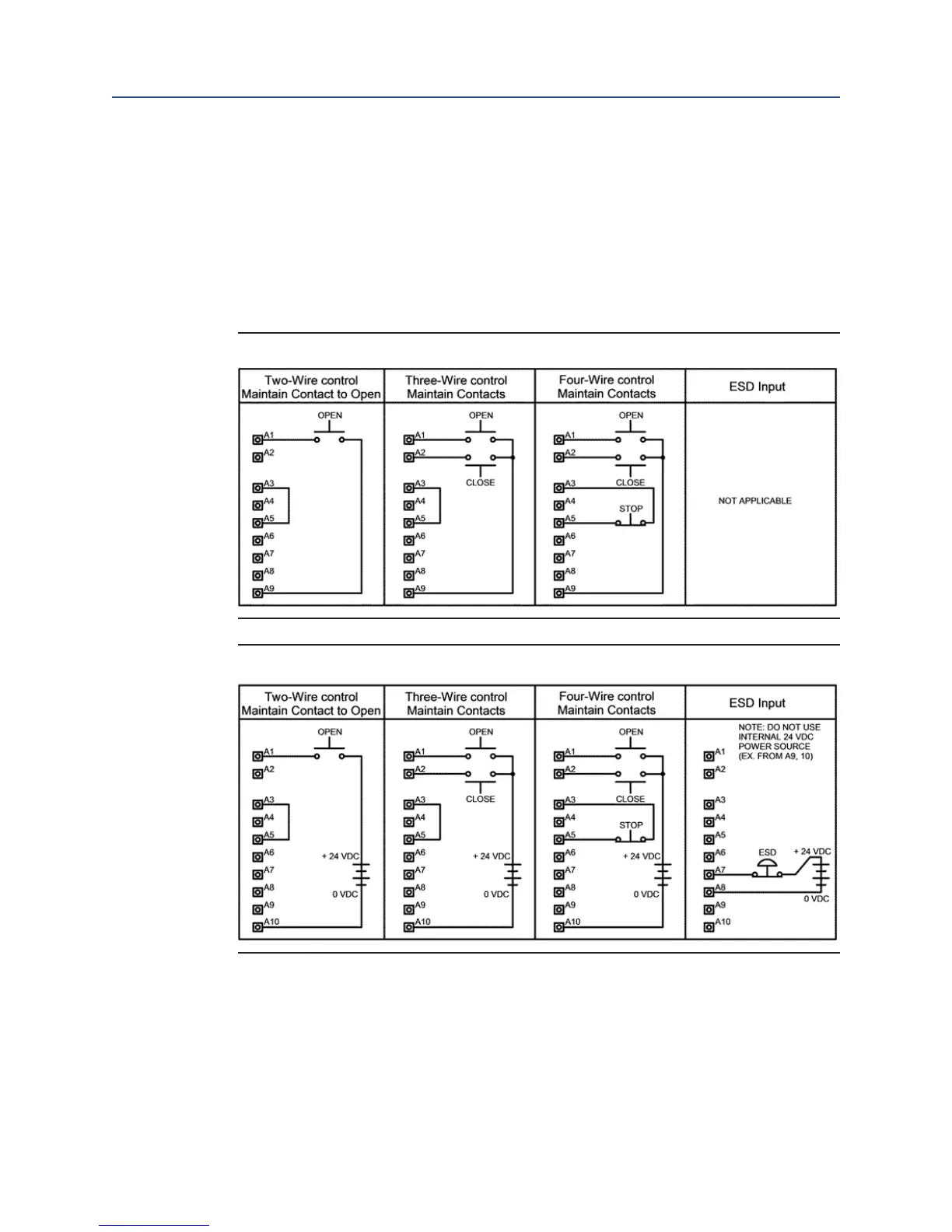

3.7 Discrete Controlled Inputs Connection
The actuator can be controlled by discrete inputs: two-wire control, three-wire
control, four-wire valve control. Connect the power for these discrete inputs as
detailed in
Figures 13 and 14. See Section 3.3, Electrical Connections, for general electrical
connection requirements.
Figure 13 Control Input Wiring – Internal Power Supply
Figure 14 Control Input Wiring – External Power Supply 24 VDC
