Emerson Bettis EHO - Section 9: Weights and Dimensions; EHO Standard Double Acting

Installation and Operation Manual
Part Number: VA001-507-32, Rev. 1
August 2016
43
Section 9: Weights and Dimensions
Weights and Dimensions
Section 9: Weights and Dimensions

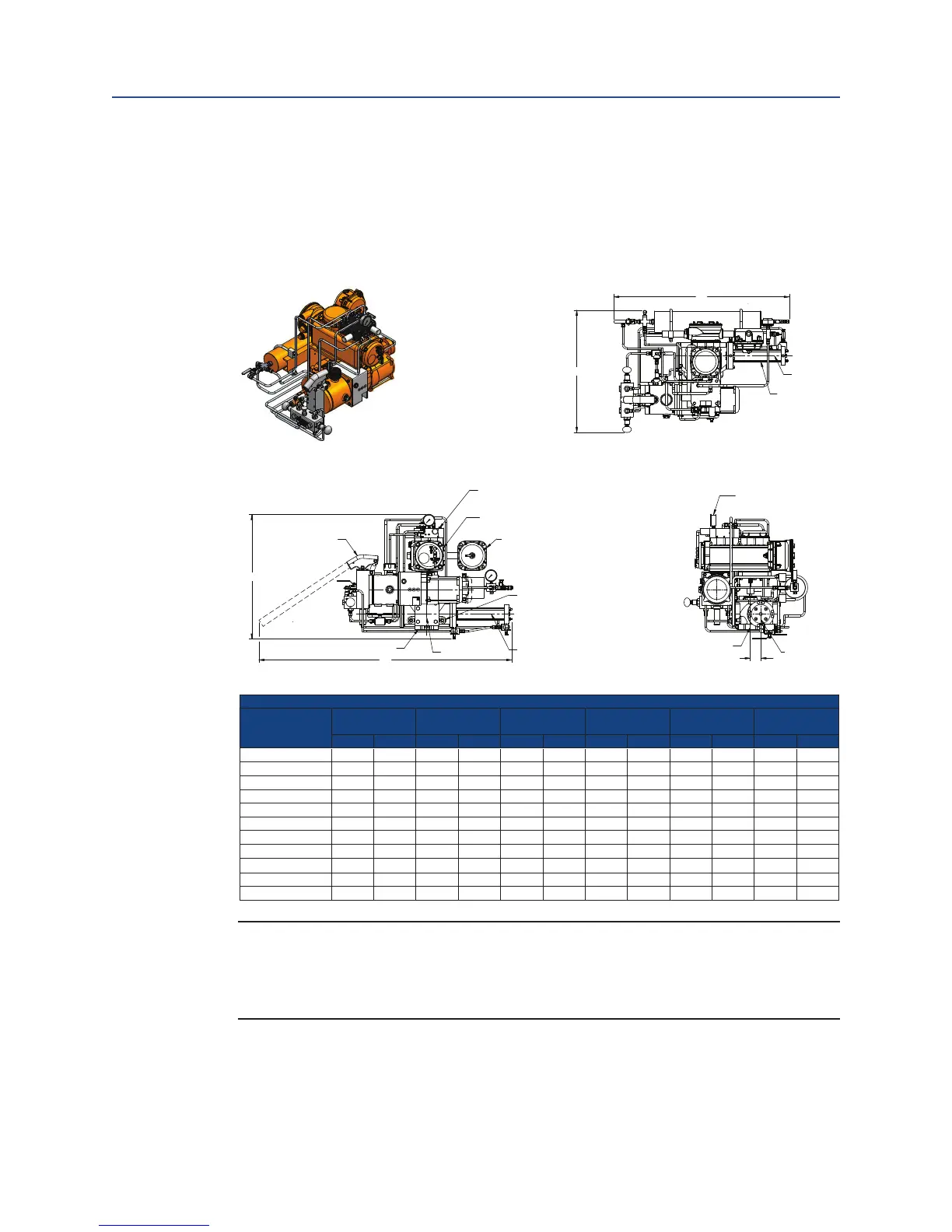

9.1 EHO Standard Double Acting
Dimension
Double-Acting Actuator






















OUTLINE DIMENSION AND DETAILS
Actuator
ABCDE
Approximate
Weight
INCH MM INCH MM INCH MM INCH MM INCH MM Lbs KG
G01001.5 39.8 1010.9 27.7 703.6 28.3 718.8 57.9 1470.7 2.4 61.0 513 233
G2002.0 40.6 1031.2 28.7 729.0 29.0 736.6 58.3 1480.8 2.9 73.7 546 248
G3004.0 46.8 1188.7 30.1 764.5 32.5 825.5 61.5 1562.1 3.5 88.9 626 284
G4003.0 52.0 1320.8 34.5 876.3 31.9 810.3 66.8 1696.7 4.3 109.2 770 349
G4004.0 53.0 1346.2 35.5 901.7 32.9 835.7 67.8 1722.1 5.3 134.6 783 355
G5004.0 58.3 1480.8 37.4 950.0 34.8 883.9 73.2 1859.3 5.5 139.7 1141 518
G5005.0 59.3 1506.2 38.4 975.4 35.8 909.3 74.2 1884.7 6.5 165.1 1300 590
G7005.0 64.3 1633.2 40.4 1026.2 39.7 1008.4 81.6 2072.6 6.8 172.7 1786 810
G7008.0 65.3 1658.6 41.4 1051.6 40.7 1033.8 82.6 2098.0 7.8 198.1 1829 830
G8008.0 76.5 1943.1 427.0 1085.8 39.5 1003.3 87.5 2222.5 8.0 203.2 2461 1116
G10008.0 93.6 2377.4 46.9 1191.3 43.6 1107.4 99.4 2524.8 10.5 266.7 3754 1703
14
Product Data Sheet EHO
March 2015 EHO.01.05.EN, Page 2 of 2, Rev. 0
NOTE:
Weights and dimensions shown are nominal values, for accurate weights and
dimensions always refer to the General Arrangement Drawing for the unit being worked
on.
