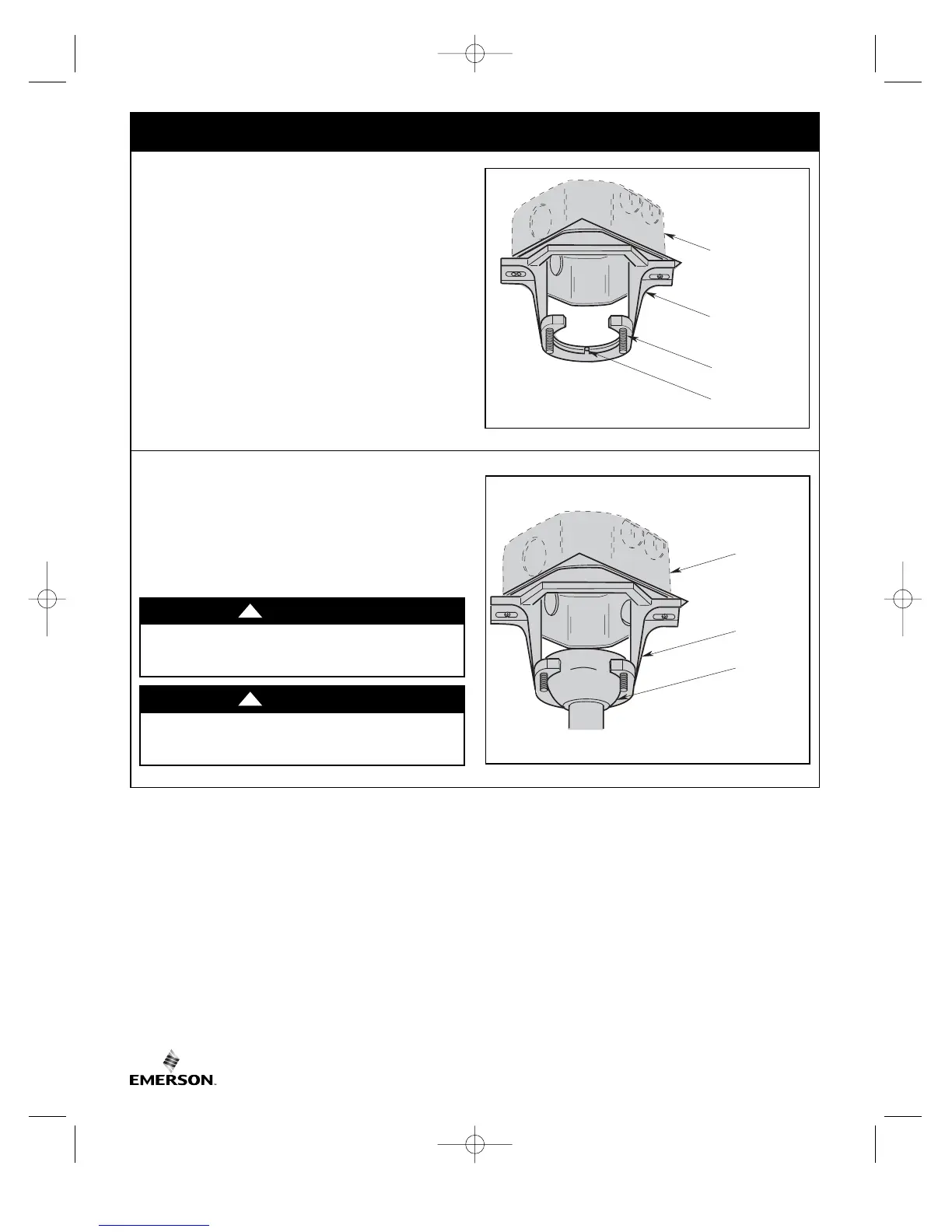

4. How to Hang Your Ceiling Fan (continued)

4.2

Screw the two 1-1/4” threaded studs (supplied) into the

tapped holes in the hanger bracket (Figure 8).

HANGER BRACKET

OUTLET BOX

ANTI-ROTATION TAB

1-1/4" THREADED

STUDS (2)

Figure 8

To avoid possible fire or shock, do not pinch wires

between the hanger ball/downrod assembly and

hanger bracket.

WARNING

Failure to seat the anti-rotation tab in groove could

cause damage to electrical wires and possible shock

or fire hazard.

WARNING

NOTE: CEILING COVER, SUPPLY

WIRES AND FAN WIRES OMITTED

FOR CLARITY.

OUTLET

BOX

HANGER

BRACKET

HANGER BALL/

DOWNROD

ASSEMBLY

Figure 9

4.3

Carefully lift the fan and seat the hanger ball/ downrod

assembly into the hanger bracket that was just attached

to the outlet box (Figure 9). Be sure the groove in the

ball is lined up with anti-rotation tab on the hanger

bracket (Figure 9).
