The Dewpoint Sensor Mounting and Wiring the Sensors • 9

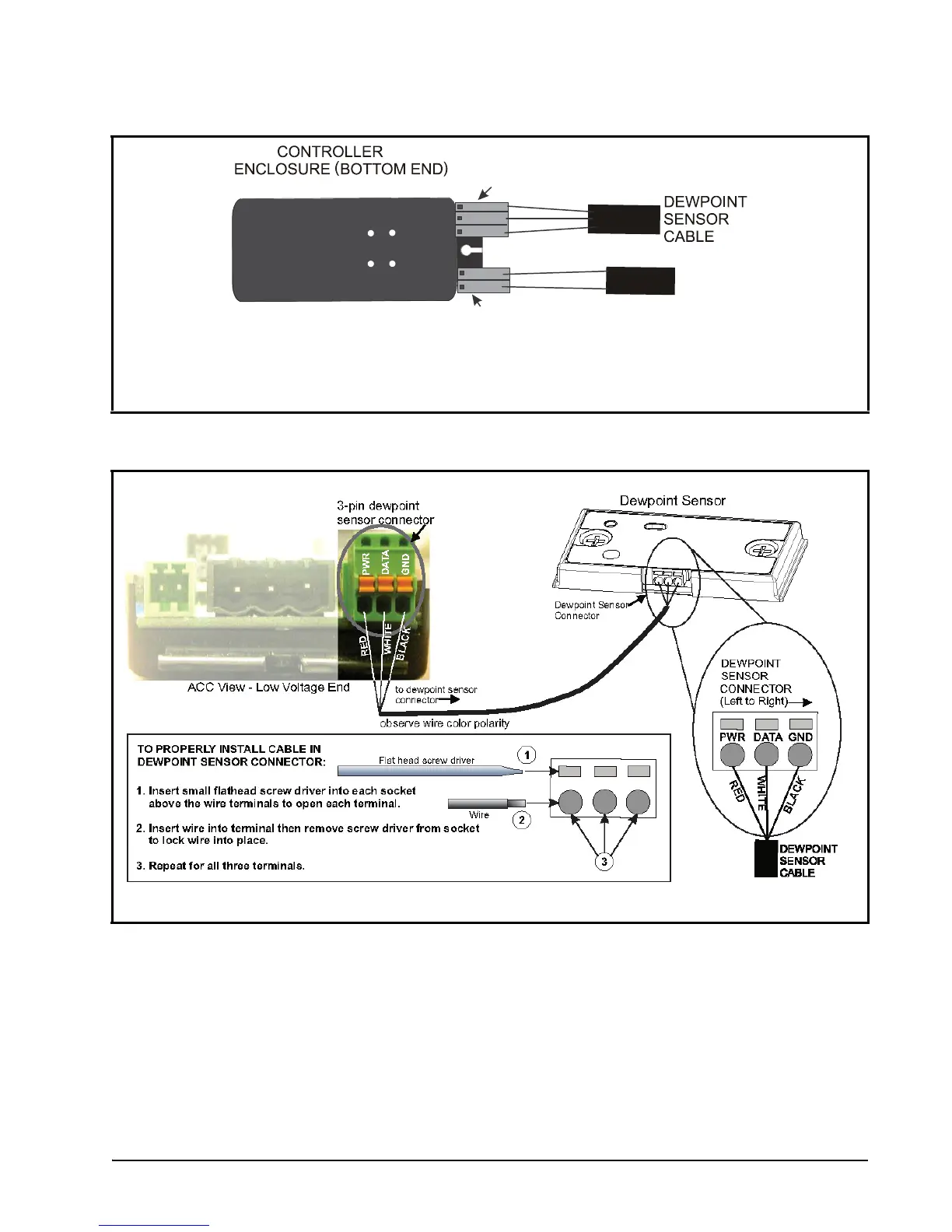

Figure 6-3 - Dewpoint Sensor Wiring
ACC
LOW VOLTAGE END
3-pin connector
2-pin
connector
TEMP
SENSOR
CABLE
BLACK
RED
WHITE
GND
PWR
DATA
THERM
THERM
Figure 6-4 - Dewpoint Sensor Connector - ACC View
