27
Installation
Analog Command Wiring

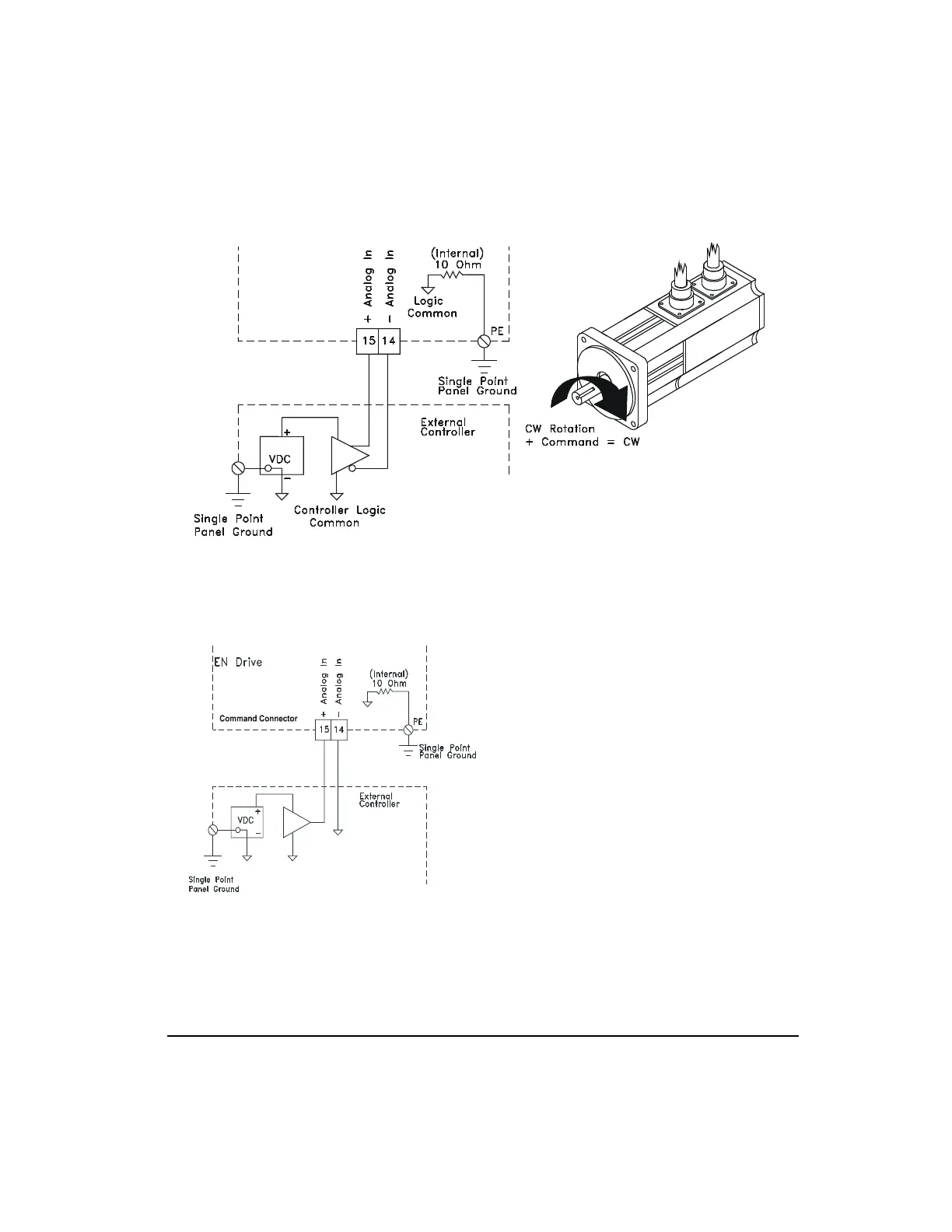

Figure 21: Analog Command, Differential Wiring Diagram
Figure 22: Analog Command, Single Ended Wiring Diagram
Command Connector
With positive direction = CW
