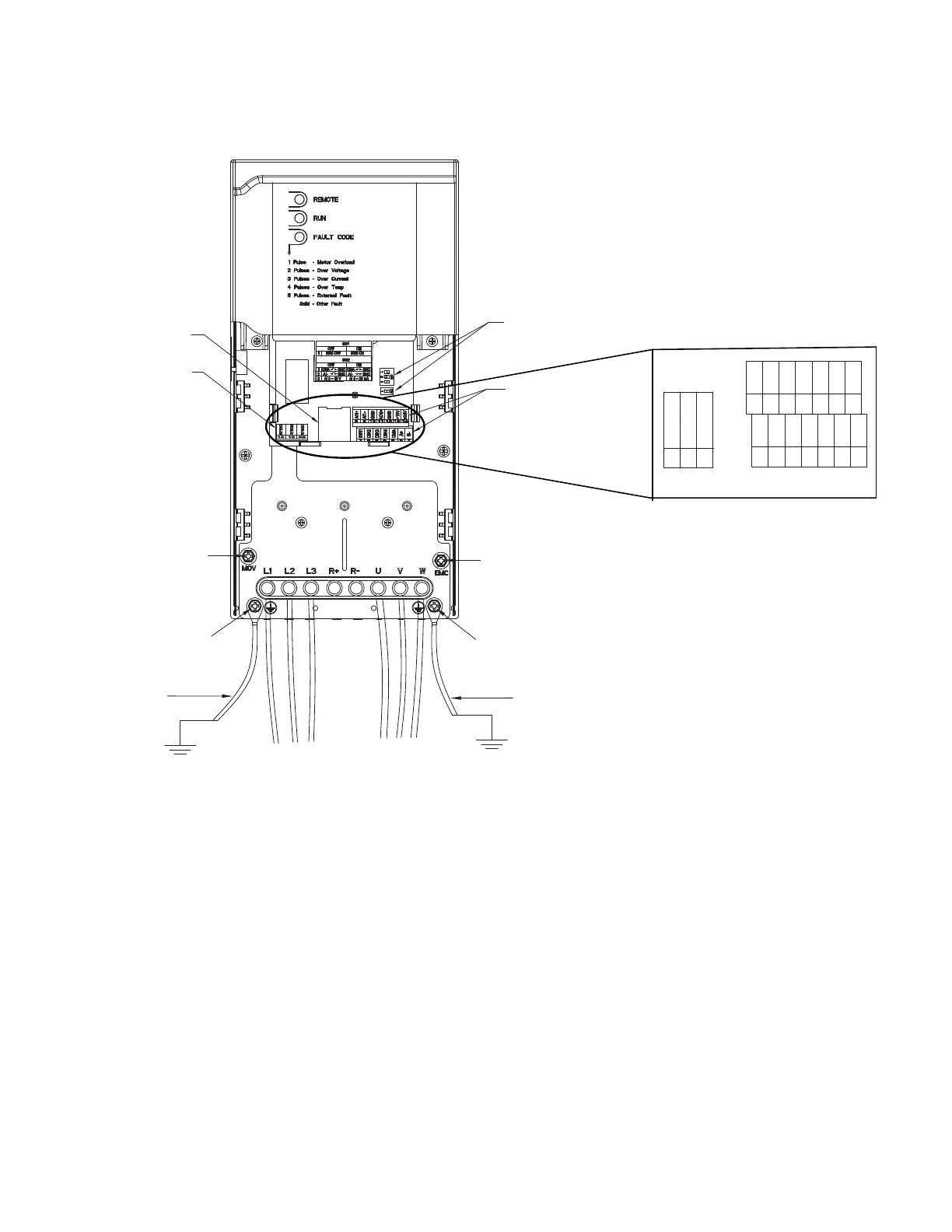

Control board layout (cont.)
IO terminals
Relay terminals
DIP switches
RJ45 port for Keypad/PC
Removable
EMC screw
Line wires
Motor wires
Line grounding position
Motor grounding position
Motor grounding wire
Line grounding wire
MOV screw
Relay terminals I/O terminals
18 Y1NO
19 Y1CM
20 Y1NC
1 DIN
2 DIN
3 DIN
DIN4
CM5
6 A+
B7
8 AI1+
9 AI1-
10 GN 11 AO1+ 12 GN 13 + 0 V 14
+24 V
EVM Basic wiring illustration
