Step 2 — Copeland EVM Drive Installation
Dimensions and Weights

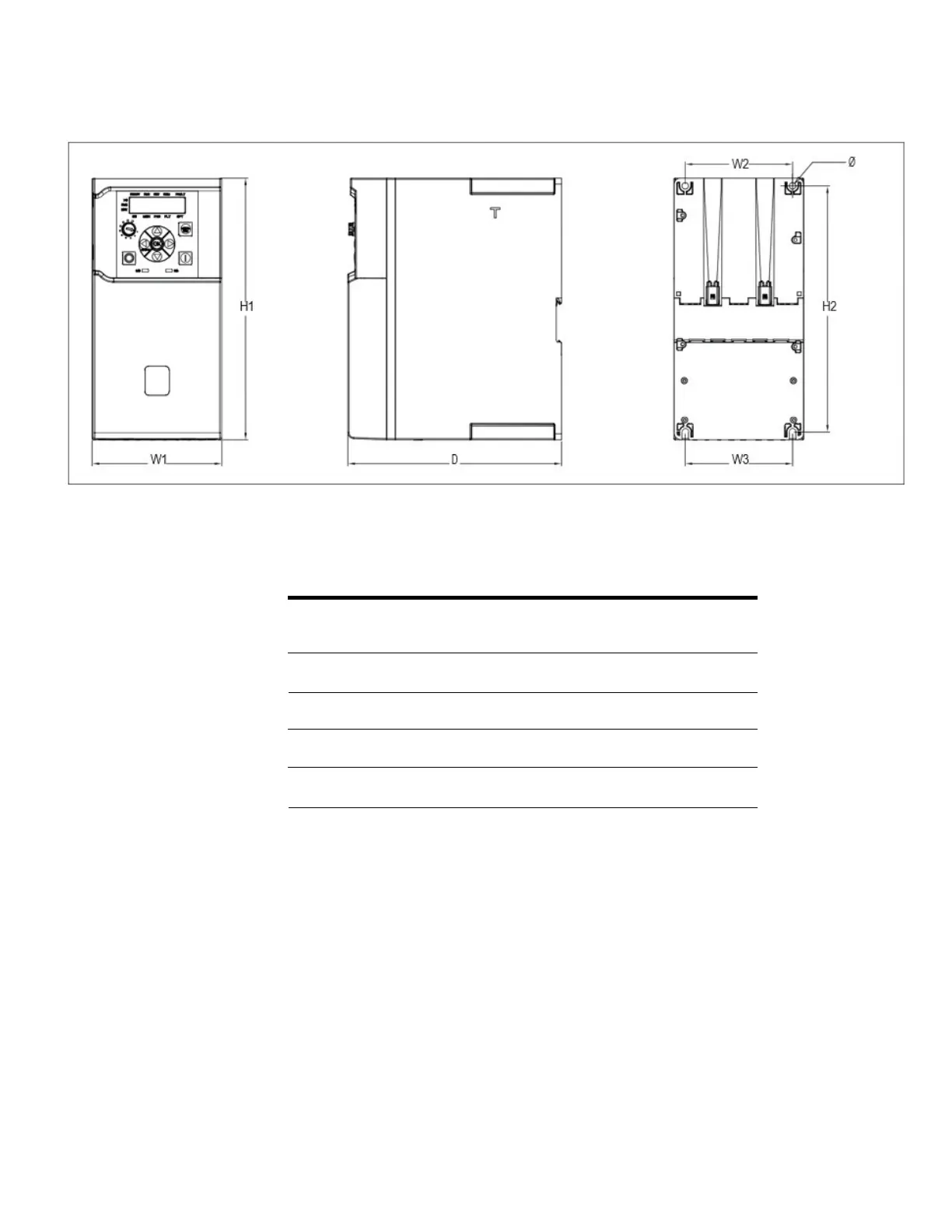

Approximate mounting dimensions in inches (mm)
Approximate dimensions in inches (mm)
Frame
size
D H1 H2 W1 W2 W3 Ø
Weight
lb (kg)
FR1
7.09
5.98
5.51
2.83
2.26
2.26
0.20
2.6
(180
(152)
(140) (72) (57.5) (57.5) (5.2)
(1.2)
FR2
7.09
8.66
8.15
4.29
3.56
3.56
0.22
5.7
(180
(220)
(207) (109) (90.5) (90.5) (5.5)
(2.6)
FR3
7.09
10.24
9.72
5.12
4.57
4.57
0.22
8.2
(180
(260)
(247) (130) (116) (116) (5.5)
(3.7)
FR4
7.68
11.81
11.06
7.24
6.3
6.3
0.24
13.9
(195
(300)
(281) (184) (160) (160) (6)
(6.3)
