NOTE1: with dbH = yES a defrost is done before the holding phase.
NOTE2: If the end cycle temperature iS3 is not reached in the maximum time Pd1+Pd2+Pd3 the instrument
keep on working, but the alarm message “OCF” is given.
12. INSTALLATION AND MOUNTING
Instruments XB570L shall be mounted on vertical panel, in a 150x31 mm hole, and fixed using two screws
∅ 3 x 2mm. To obtain an IP65 protection grade use the front panel rubber gasket (mod. RG-L). The
temperature range allowed for correct operation is 0 to 60°C. Avoid places subject to strong vibrations,
corrosive gases, excessive dirt or humidity. The same recommendations apply to probes. Let the air
circulate by the cooling holes.

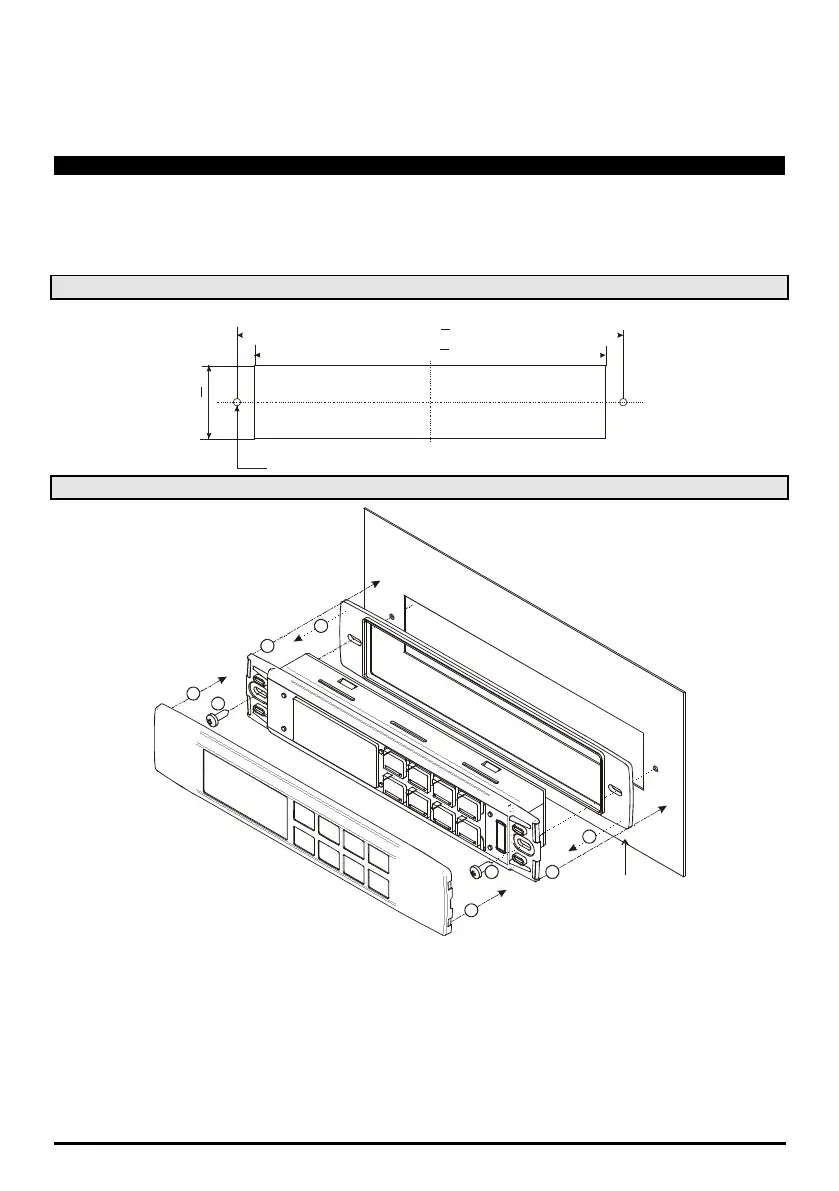

12.1 CUT OUT
165
150
31
+0.5
-0
+0.5
-0
+1
-1
Ø3 x2
12.2 MOUNTING
1
1
2
23
3
4
4
RG-LX gascke
(optional)
