Emerson El-O-Matic E Series - Product Code Structure

To Next Page

To Previous Page

Page 5

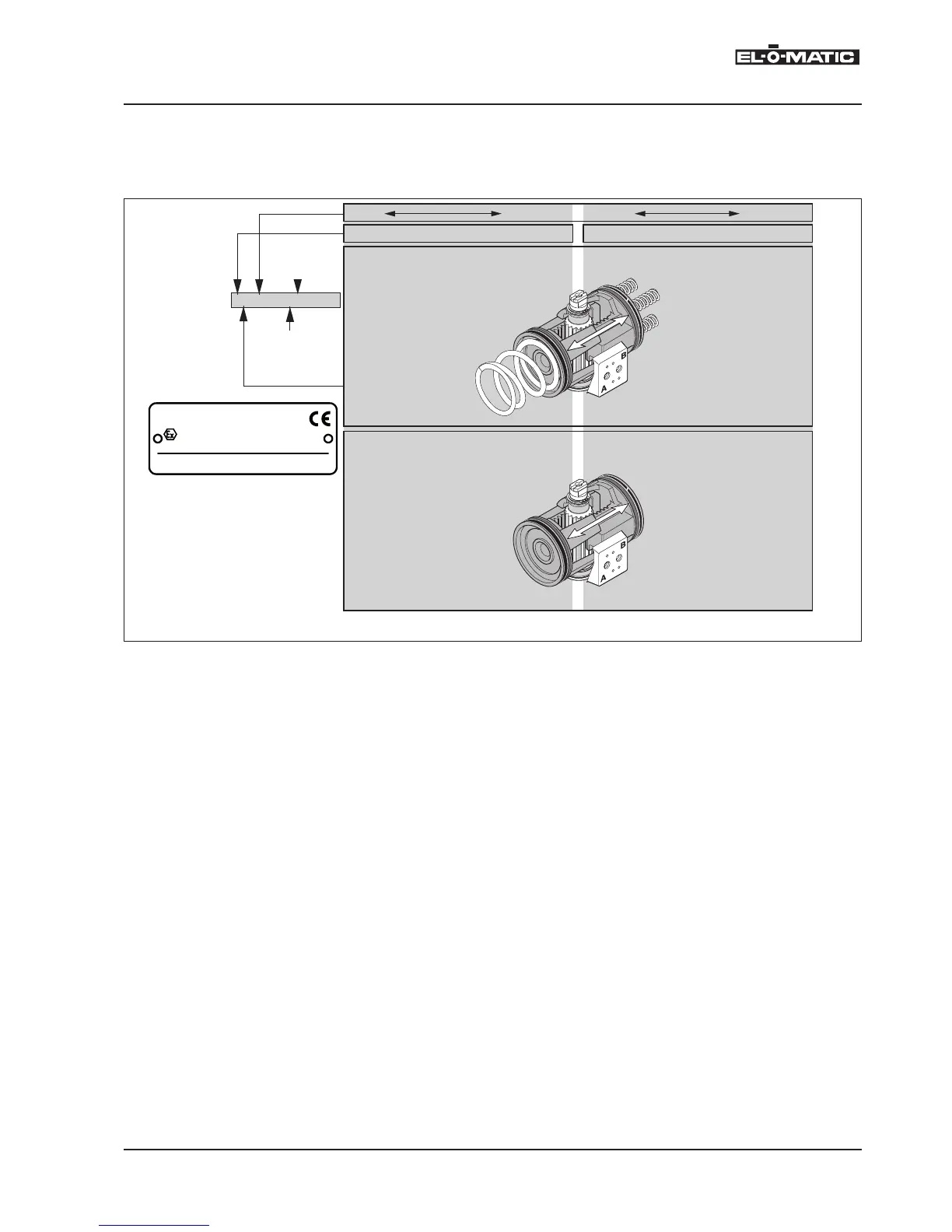

INSTALLATION, OPERATION AND MAINTENANCE MANUAL

DOC.41.EDN Rev: E

March 2012

1.2

ES0100.M1A05A.19K1

Assembly

code

(Chapter 4)

Spring set

code

E-Series

spring set

P-Series

spring set

ES0100.M1A05A.19K1

43230220004

Type :

Serial no :

II 2 GD c IIB TX

°C ( °F) Ta °C ( °F)

PED : Group PS: max. bar ( PSI)

Tech. File Ref. EOM0 3, Emerson, 7556BR, Netherlands

80 176 -20 -4

2 8 116

" E " Series

12 1600Nm 2500 4000Nm

" P " Series

Model

Spring - return " ES" Spring - return " PS"

Double acting " ED" Double acting " PD"

Model -

Spring set code -

Assembly code (page 13) -

“E”- Series -

“P”- Series -

Spring return -

P-Series spring set -

E-Series spring set -

Double acting ED -

Double acting PD -

Typ -

Federsatzcodenummer -

Bezeichnung der Drehrichtung (s.13) -

“E”-Serie -

“P”-Serie -

Federrückstellend -

Federsatz der P-Serie -

Federsatz der E-Serie -

doppeltwirkend ED -

doppeltwirkend PD -

model

code verenset

montagecode (pag. 13)

“E”-serie

“P”-serie

veerretour

verenset P-serie

verenset E-serie

dubbelwerkend ED

dubbelwerkend PD
