FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
9

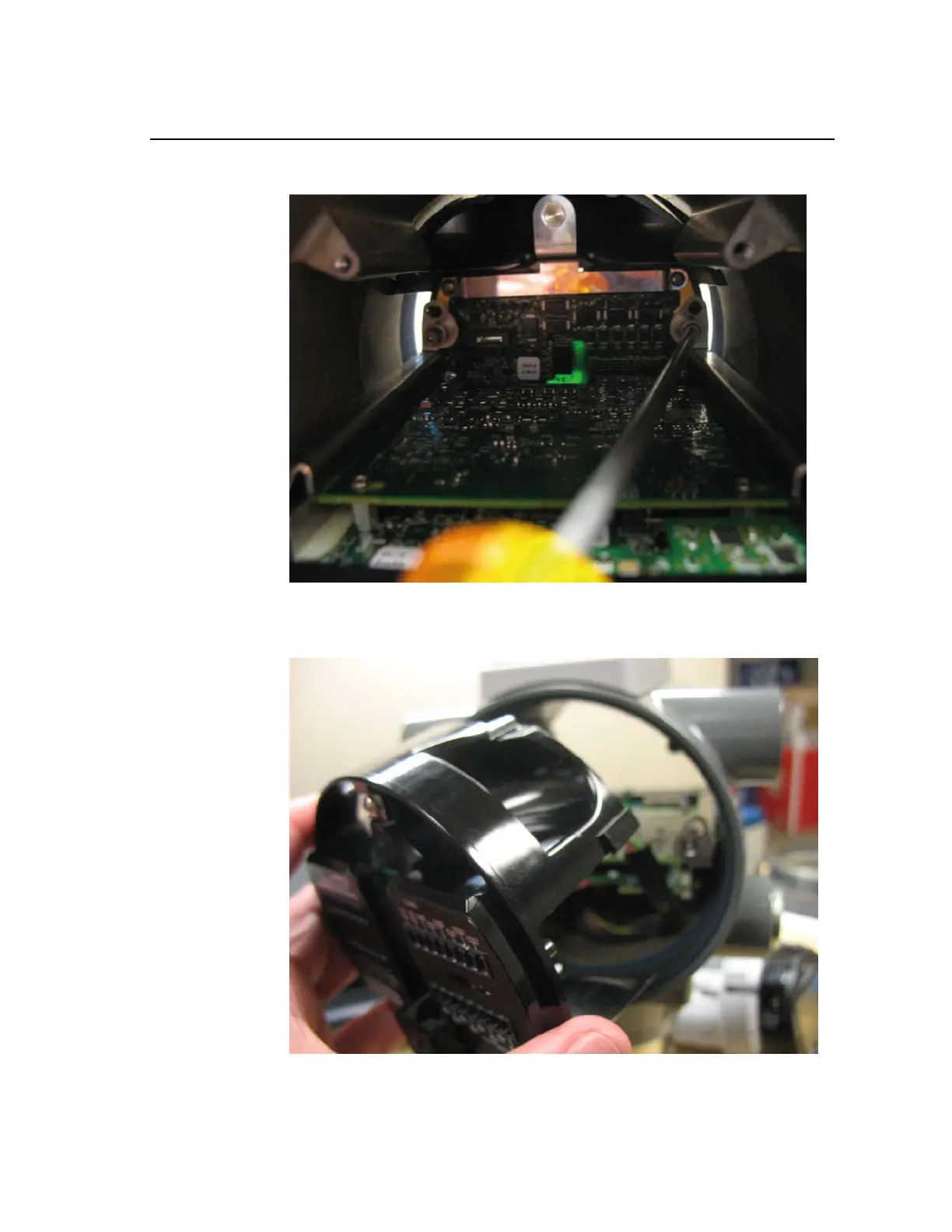

12. With a #2 Phillips-head screwdriver loosen the two captive fastening screws.
13. Now grasp the termination board bezel from the back of the unit and pull out the
termination board assembly.
