FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
7

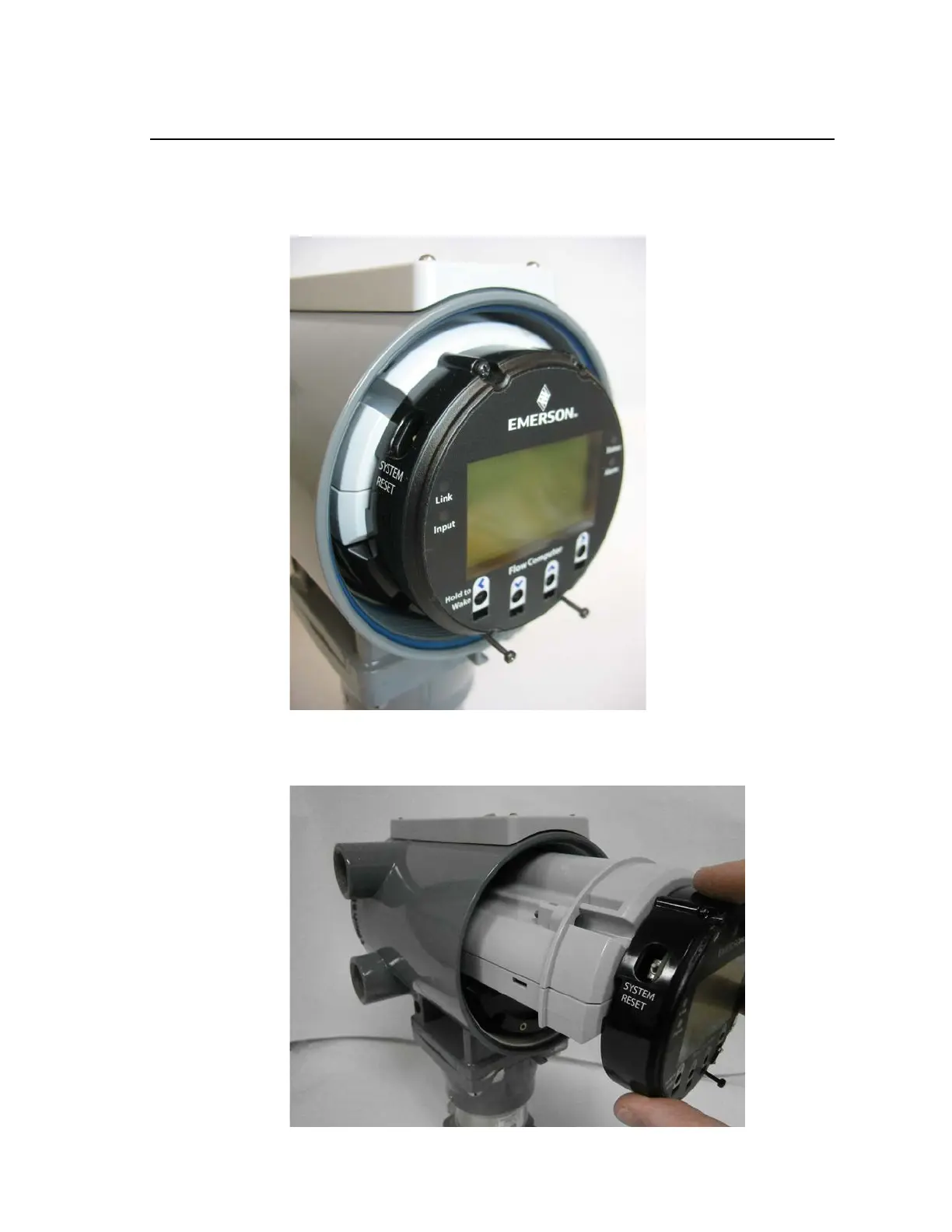

7. With a #1 Phillips-head screwdriver, loosen the two bottom captive fastening
screws on the HMI module. Leave the two top screws on the HMI module
connected to the battery pack enclosure.
8. Grasp the HMI module and gently pull it and the battery pack enclosure out of the
housing.
