Instruction Manual
D102748X012
DLC3010 Digital Level Controller
Parts
May 2018
96

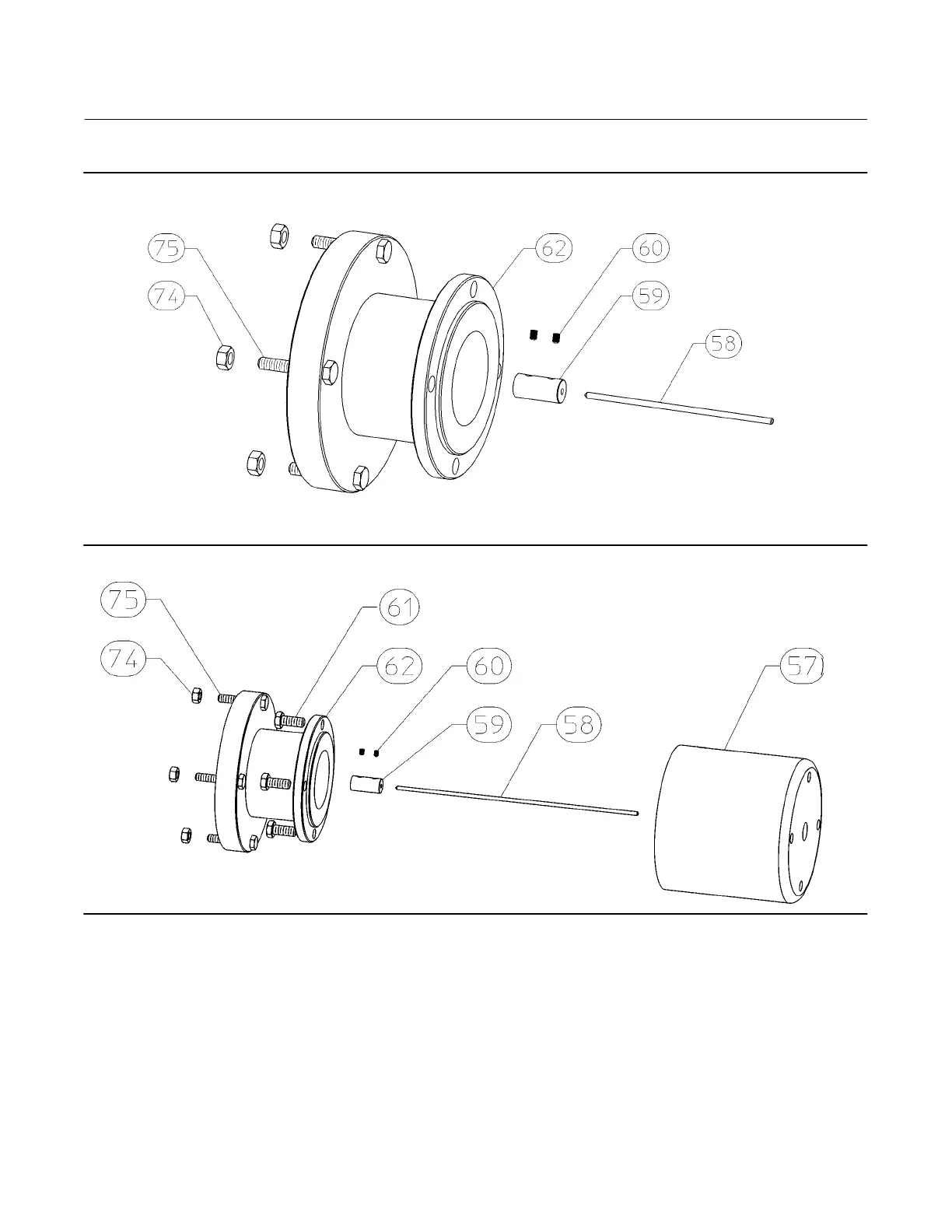

Figure 7‐6. Mounting Kit for Masoneilan 12200 and 12300 Sensor without Heat Insulator
29B8444‐A
Figure 7‐7. Mounting Kit for Masoneilan 12200 and 12300 Sensor with Heat Insulator
29B8445‐A
Key Description
12200 or 12300 without Heat Insulator
58 Shaft Extension
59 Shaft Coupling,
60 Hex Socket Screw (2 req'd)
62 Mounting Adaptor
74 Hex Nut (4 req'd)
75 Hex Cap Screw (4 req'd)
Key Description
12200 or 12300 with Heat Insulator
57 Heat Insulator
58 Shaft Extension
59 Shaft Coupling
61 Hex Cap Screw (4 req'd)
60 Hex Socket Screw (2 req'd)
62 Mounting Adaptor
74 Hex Nut (4 req'd)
75 Hex Cap Screw (4 req'd)
78 Washer, plain (4 req'd) not shown
