Emerson Fisher FIELDVUE DVC6200 HW1 User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
August 2015
48
1 SEE NOTES IN FIGURE 42
FISCO LOOP
ENTITY FIELDBUS LOOP
GE42818 Sheet 4, Rev. F
1 NOTE 7
NON‐HAZARDOUS LOCATION
CLASS I, ZONE 0, GROUP IIC
CLASS I, DIV 1, GROUPS ABCD
CLASS II, DIV 1, GROUPS EFG
CLASS III
DVC6200F, DVC6200FS
DVC6200P, DVC6200PS
HAZARDOUS LOCATION
CSA APPROVED
BARRIER
HAZARDOUS LOCATION
NON‐HAZARDOUS LOCATION
CSA APPROVED
FISCO BARRIER
CSA APPROVED
FISCO TERMINATOR
CSA APPROVED
FISCO DEVICE
DVC6200F, DVC6200FS
DVC6200P, DVC6200PS
CLASS I, ZONE 0, GROUP IIC
CLASS I, DIV 1, GROUPS ABCD
CLASS II, DIV 1, GROUPS EFG
CLASS III
CSA APPROVED
ENTITY DEVICE
NOTE 1, 3 1
1 NOTE 1, 3, 4, 5, 6
1 NOTE 2, 3, 4, 5, 6
NOTE 2, 3 1

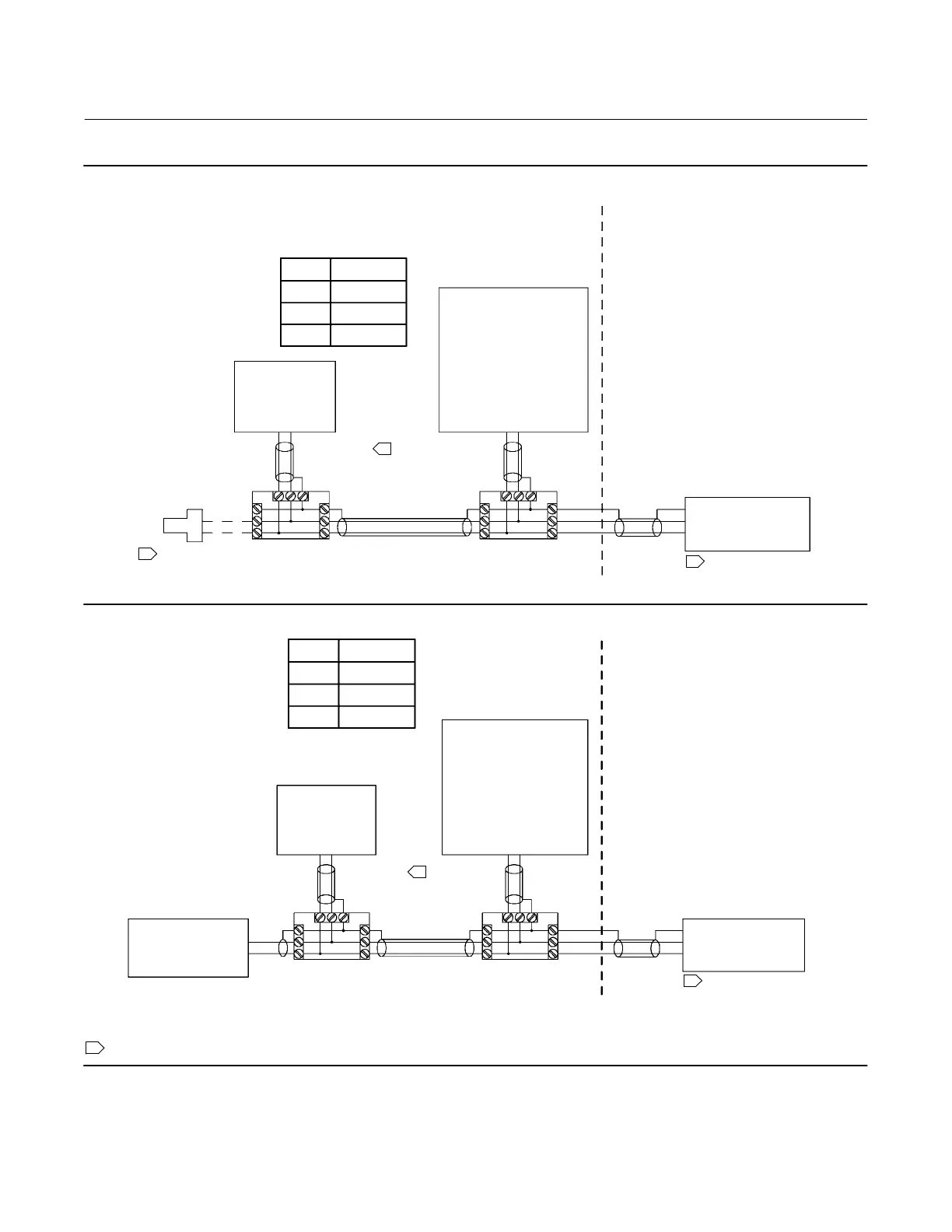

Figure 40. CSA Loop Schematics—FIELDVUE DVC6200f and DVC6200p
T CODE T (amb)
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C
T CODE T (amb)
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C
GE42818 Sheet 3, Rev. F
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W

Emerson Fisher FIELDVUE DVC6200 HW1 Specifications

General

Manufacturer	Emerson
Model	FIELDVUE DVC6200 HW1
Type	Digital Valve Controller
Input Signal	4-20 mA DC
Communication Protocol	HART
Operating Temperature Range	-40 to 85°C (-40 to 185°F)
Enclosure Rating	NEMA 4X, IP66
Material	Aluminum or Stainless Steel
Certifications	ATEX, IECEx, FM, CSA
Diagnostics	Advanced diagnostics capabilities
