Emerson Fisher FIELDVUE DVC6200 Series User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
July 2017
22
Note
The Natural Gas Certified, Single Seal device option simplifies sealing requirements. Natural Gas Certified, Single Seal instruments
can be identified by the natural gas approval label shown in figure 18. Read and follow all local, regional, and federal wiring
requirements for natural gas installations. Contact your Emerson sales office
or Local Business Partner for information on obtaining
a Natural Gas Certified, Single Seal DVC6200 digital valve controller.

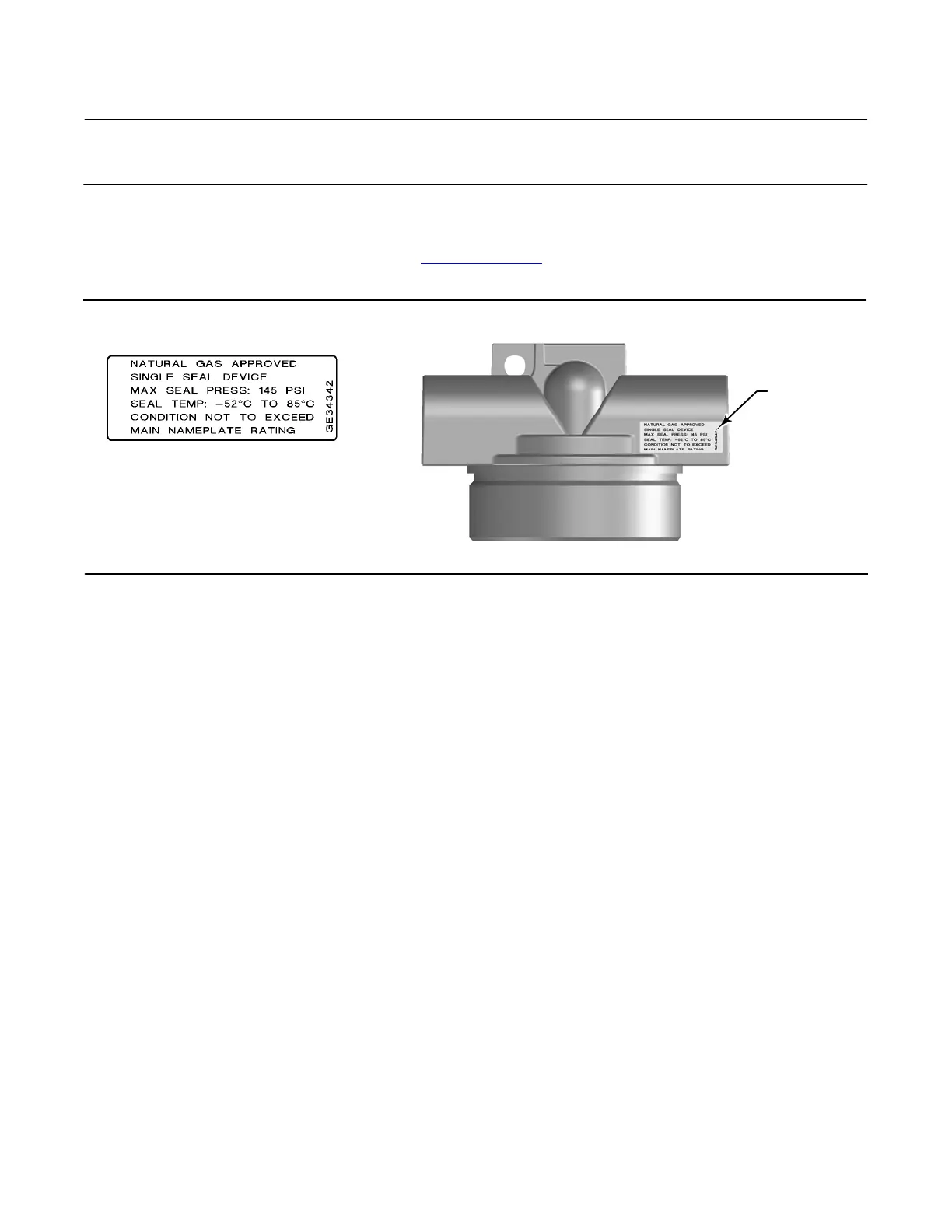

Figure 18. Label for Natural Gas Certified Terminal Box
LABEL LOCATED
ON TOP OF
TERMINAL BOX
X0748
4. Connect the pneumatic supply line to the 1/4 NPT IN connection on the filter regulator.
5. Proceed to Step 3—Connect the Electrical Wires on page 23.

Emerson Fisher FIELDVUE DVC6200 Series Specifications

General

Manufacturer	Emerson
Series	FIELDVUE DVC6200
Type	Digital Valve Controller
Communication Protocol	HART
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Material	Aluminum, Stainless Steel
Hazardous Area Certifications	ATEX, IECEx, FM, CSA
Input Signal	4-20 mA, HART
Power Supply	Loop-powered
Supply Pressure	1.4 to 6.0 bar
Certifications	SIL3 capable
Diagnostics	Advanced Valve Diagnostics
