Emerson Fisher FIELDVUE DVC6200 Series User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
July 2017
38
De-Energize to Trip (DETT) DVC6200 SIS,
no Solenoid Valve
In a typical deenergize to trip application without a solenoid valve, the logic solver trip signal deenergizes the digital
valve controller to 4 mA (or 0 VDC). This drives the digital valve controller to the no output pressure condition. As a
result, the safety valve moves to its noair, fail safe position.

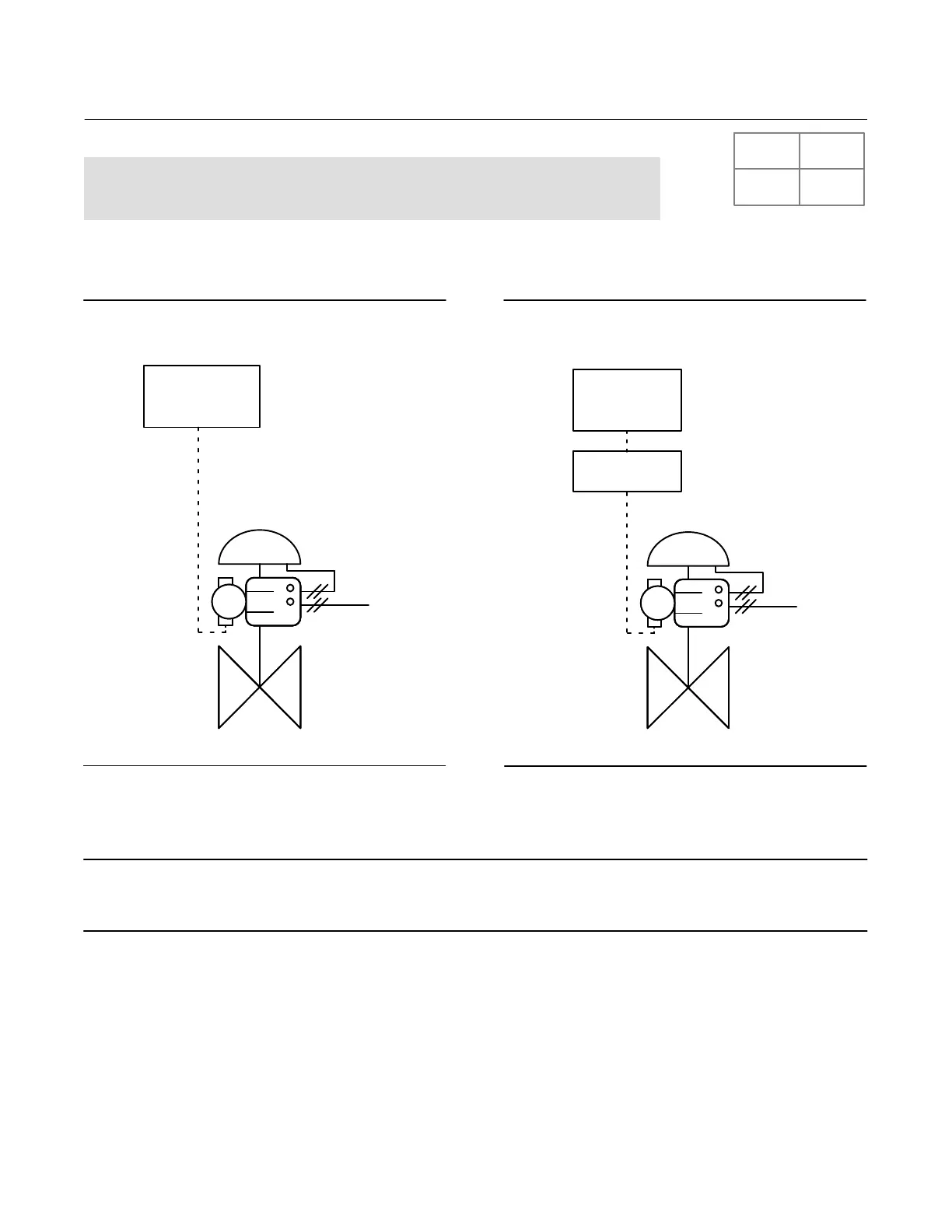

Figure 30. FIELDVUE DVC6200 SIS Powered
with 4-20 mA
LOGIC SOLVER
AS
4-20 mA DETT
E1457
Figure 31. FIELDVUE DVC6200 SIS Powered
with 0-24 VDC
0-24 VDC DETT
LOGIC SOLVER
LC340
LINE CONDITIONER
AS
E1458
1. If the DVC6200 SIS is powered with 420 mA, connect the logic solver output card +/ terminals to the
corresponding DVC6200 SIS LOOP +/terminals.
Note
For the digital valve controller to operate with a 420 mA control signal the DIP switch must be in the pointtopoint loop position,
as shown in table 2. The control mode must be set to analog. This is set at the factory when ordered properly.
SIS

Emerson Fisher FIELDVUE DVC6200 Series Specifications

General

Manufacturer	Emerson
Series	FIELDVUE DVC6200
Type	Digital Valve Controller
Communication Protocol	HART
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Material	Aluminum, Stainless Steel
Hazardous Area Certifications	ATEX, IECEx, FM, CSA
Input Signal	4-20 mA, HART
Power Supply	Loop-powered
Supply Pressure	1.4 to 6.0 bar
Certifications	SIL3 capable
Diagnostics	Advanced Valve Diagnostics
