Instruction Manual
D104239X012
Multiport Flow Selector
January 2019
40
Field Setup Using Local Controls
Use the Local Control (left) knob and Selector (right) knob to enter setup mode and to execute Setup functions. The
table below outlines the knob functions for Setup mode.
To access the Field SETUP mode of operation ensure the Selector Knob is placed in the OFF (Stop) position. Once set,
rotate the Control Knob to the “UP” and then to the “DOWN” position in right to left succession three times. Keep the
knob in each position for at least ½ second but not more than 3 seconds. The display module will flash the (3) amber
LOR selector LED’s when the SETUP mode is enabled.

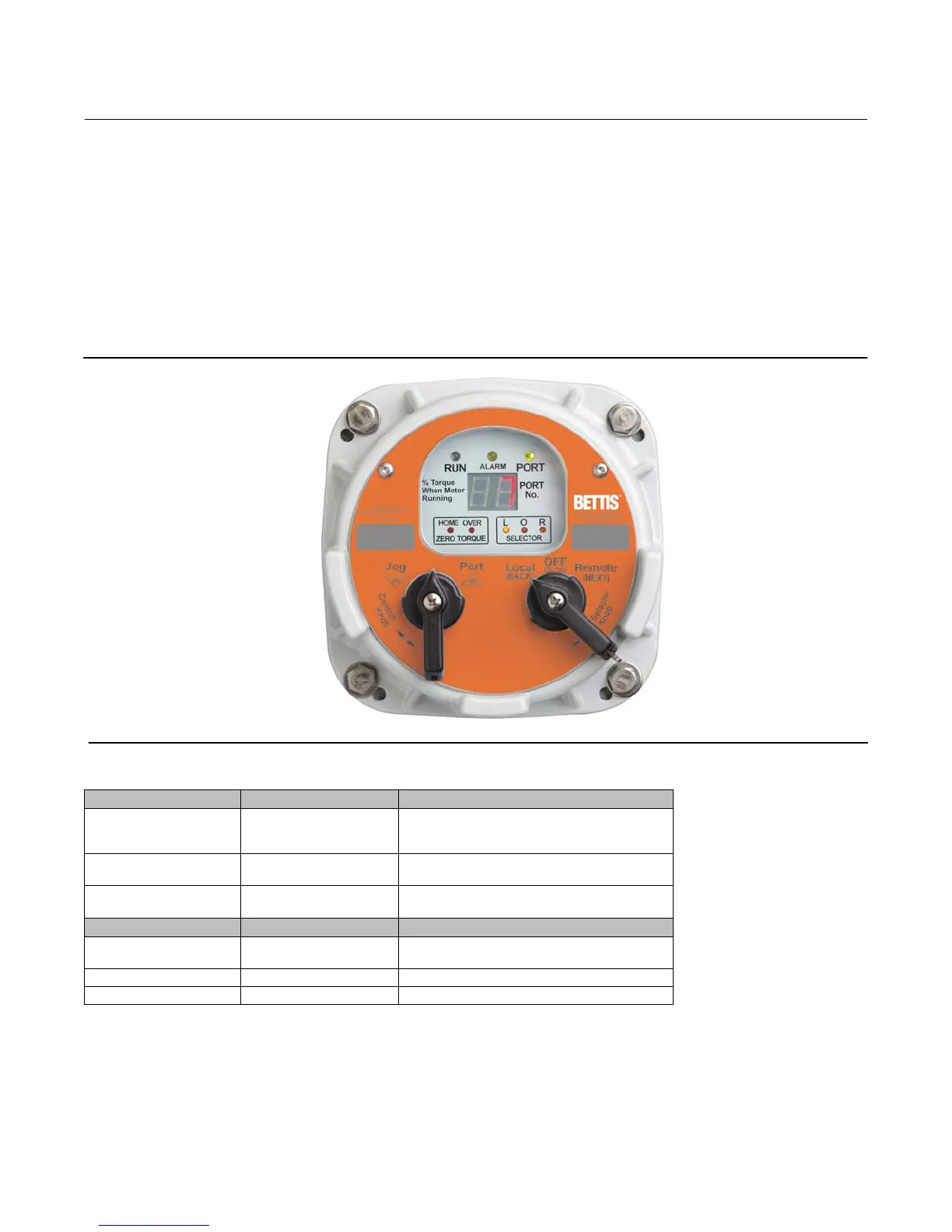

Figure 28.
SELECTOR KNOB (right) SETUP FUNCTION RESULTS
OFF (Stop) [return position] Neutral position
Allows entry to SETUP mode. Completes NEXT, or
BACK entry cycle, except when knob is held for
scrolling through various menus
Clockwise (REMOTE) (Auto) NEXT
Advances to the next menu item. Displayed data is
accepted
Counter-clockwise
(LOCAL) (Hand)
BACK Backs up to the last menu item
CONTROL KNOB (left) SETUP FUNCTION SETUP RESULTS
Spring return to Center Neutral position
Completes UP or Down entry Cycle except when
knob is held for continuous data entry update
Clockwise (CLOSE) UP Increments displayed data
Counter-clockwise (OPEN) DOWN Decrements displayed data
