Emerson HIGHPOINTE CF205BS01 User Manual

Check to see that all connections are
tight, including ground, and that no
bare wire is visible at the wire con-
nectors, except for the ground wire.
Do not operate fan until blades are in
place. Noise and fan damage could
result.
!
WARNING
d. Securely connect the fan motor white
wire to the receiver white (TO MOTOR
N) wire.
e. Securely connect the fan motor black
wire to the receiver red (TO MOTOR L)
wire.
f. Securely connect the fan motor blue
wire to the receiver blue (FOR
LIGHT) wire.

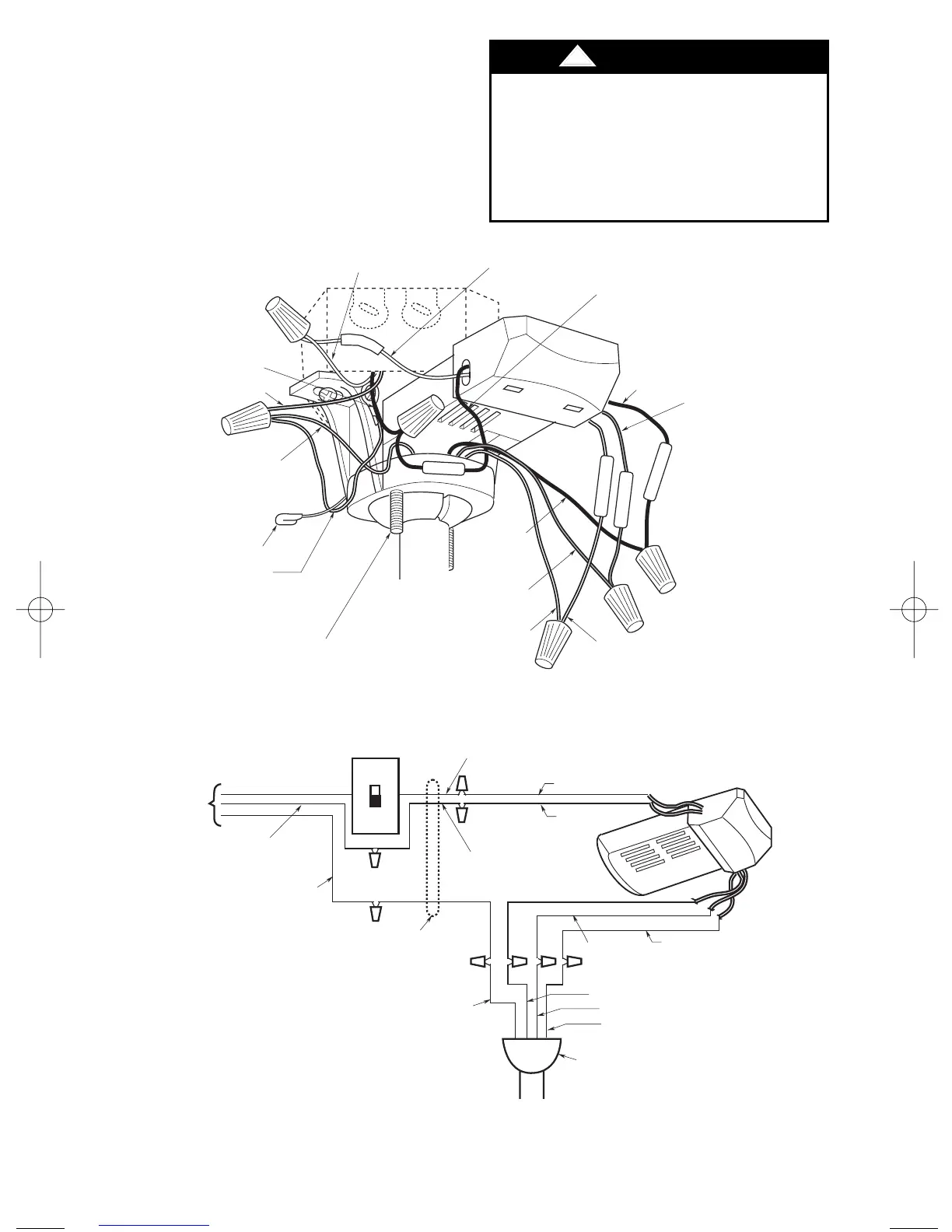

GREEN GROUND
WIRE FROM
HANGER BRACKET
RECEIVER RED WIRE
RECEIVER WHITE WIRE
FAN WHITE WIRE
FAN
BLACK
WIRE
ANTENNA
A
C
I
N
N
AC IN L
FOR LIGHT
TO MOTOR N
RECEIVER BLUE
WIRE
RECEIVER
BLACK WIRE
RECEIVER WHITE
WIRE
SUPPLY WHITE WIRE
(NEUTRAL)
SUPPLY BLACK
WIRE (HOT)
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER BALL
FAN BLUE WIRE
1-1/4" THREADED
STUD (2)
TO MOTOR L
Figure 17
10
U.L. Model No.: CF205
STANDARD ON-OFF WALL
SWITCH OR OPTIONAL SW406
WALL CONTROL
BLACK
BLACK
WHITE
RED
BLACK
WHITE
HANGER BALL
GREEN WIRE (GROUND)
FROM HANGER BALL AND
HANGER BRACKET
TWO-CONDUCTOR
CABLE (WITH
GROUND)
BLACK
(HOT)
WHITE
GROUND
TO
120-
VOLT
SUPPLY
WHITE
BLUE
WHITE
BLUE
Figure 18
BP7375-1 Highpointe 8/19/10 2:50 PM Page 10
