8. Place the lower glass into the light fitter,
aligning the three flat areas on the top
flange of the lower glass with the three
pins on the inside of the fitter (Figure
20). Then turn the lower glass clock-
wise until it stops turning.
9. Your ceiling fan is now installed and
wired to be controlled by your wall
control.
7. Screw the two 50-watt mini-candelabra
base halogen bulbs (supplied) into the
light kit plate sockets (Figure 20). Do
not touch the glass bulb; use the porce-
lain base to screw in the bulb, or wear
soft gloves.
LIGHT KIT
PLATE
GLASS
50-WATT
HALOGEN
BULB (2)
FLAT AREA

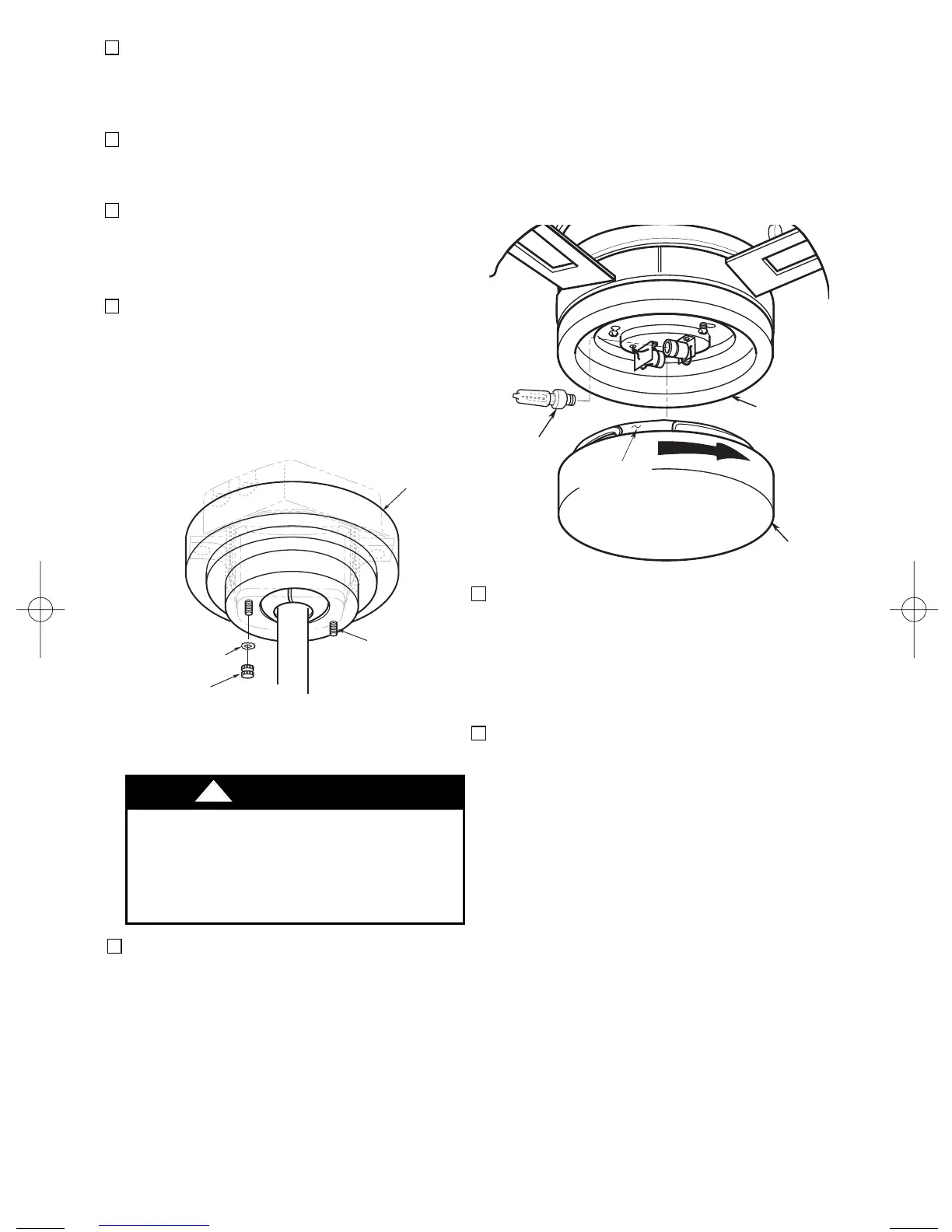

Figure 20
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and
not pinched between the ceiling
cover and the ceiling.
!
WARNING
3. Push the wires and connectors up into
the outlet box while inserting the receiv-
er fully into the hanger bracket. Position
the antenna wire on top of the receiver.
4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 19).
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 19).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied). (Figure 19).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
THREADED
STUD (2)
CEILING
COVER
KNURLED
KNOB (2)
LOCKWASHER
(2)
Figure 19
U.L. Model No.: CF205
11
CAUTION: To avoid risks of burns or
other injury, assure power is off before
attempting to install or replace the
halogen bulbs.
NOTICE: Do not touch halogen bulbs
with bare hands. Fingerprints may
result in shorter bulb life. Remove
fingerprints with alcohol.
BP7375-1 Highpointe 8/19/10 2:50 PM Page 11
