Emerson HIGHPOINTE CF205BS01 User Manual

12
U.L. Model No.: CF205

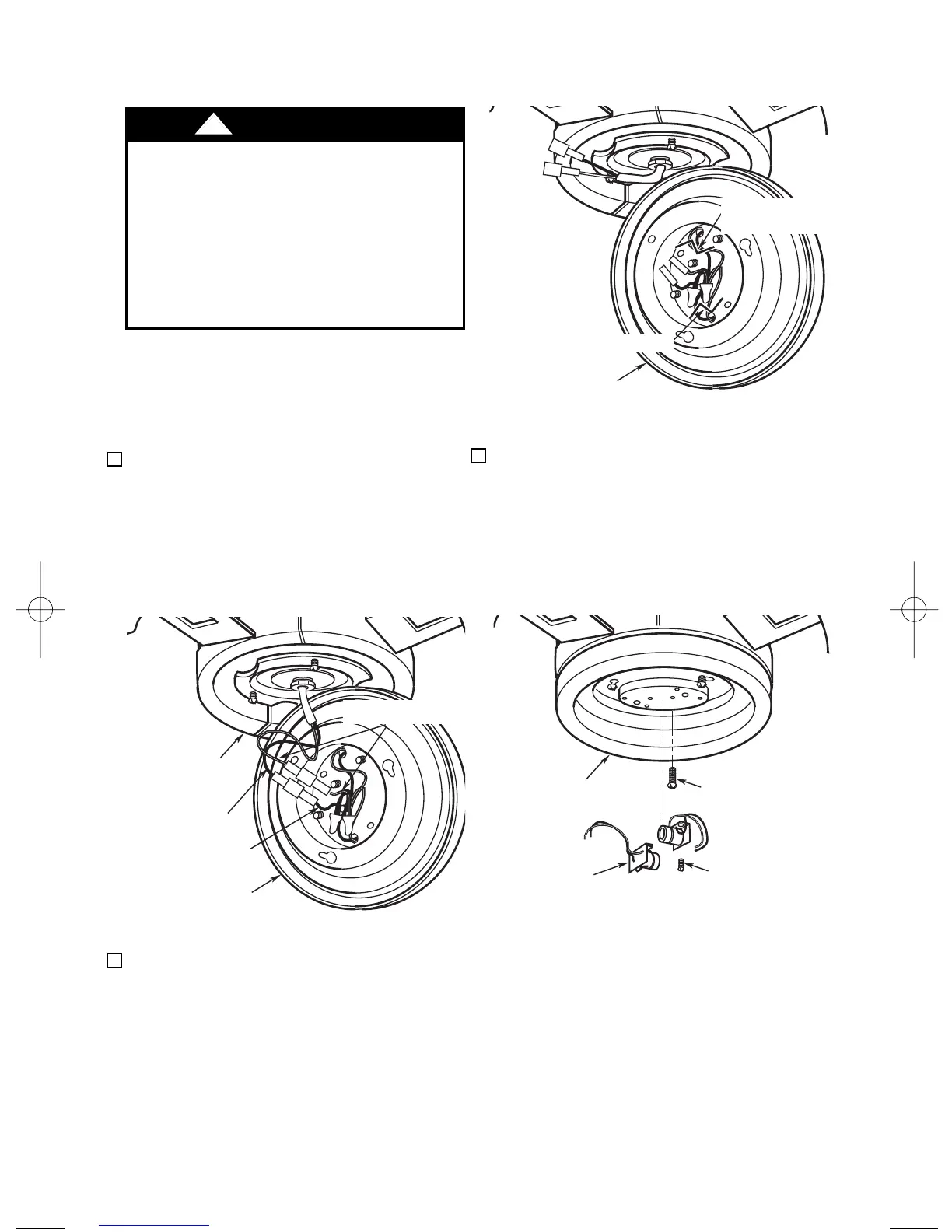

How to Disassemble Your Light Kit for
Cover Plate Assembly Only
3. Cut light socket wires using wire cut-
ters. Unscrew the screws that is secur-
ing the socket plates to the light kit
plate. Pull socket wiring though light kit
plate holes to completely disengage
the light sockets from light kit plate
(Figure 23).
1. Detach the light kit plate from the fan
motor/housing assembly by removing
one screw and loosening the two other
screws (located in the keyholes).
Rotate the light kit plate counter-
clockwise to disengaging the screws in
the two key hole slots (Figure 21).
LIGHT KIT PLATE
BLACK WIRE
BLUE WIRE
FAN MOTOR/
HOUSING
ASSEMBLY
WHITE WIRES
Figure 21
2. Disconnect the black wire of the light kit
plate from the black wire of the fan
motor/housing assembly. Disconnect the
white wire of the light kit plate from the
white wire of the fan motor/housing
assembly (Figure 22).
LIGHT KIT PLATE
CUT LIGHT
SOCKET WIRES
CUT LIGHT SOCKET WIRES
Figure 22
REASSEMBLE
LIGHT KIT
PLATE
REASSEMBLE
MOTOR SCREW (3)
REMOVE SOCKET
PLATE SCREWS
(2 per plate)
REMOVE SOCKET/
SOCKET PLATE (2)
Figure 23
Turning off wall switch is not suffi-
cient. To avoid possible electrical
shock, be sure electricity is turned
off at the main fuse box before
wiring. All wiring must be in accor-
dance with National and Local codes
and the ceiling fan must be properly
grounded as a precaution against
possible electrical shock.
!
WARNING
CAUTION: To reduce the risk of electri-
cal shock, disconnect the electrical
supply circuit before installing the fan,
light kit or receiver.
BP7375-1 Highpointe 8/19/10 2:50 PM Page 12
