LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
E111 4856310600 EYE LET BSR T0.2 (R2.3) C517 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
E114 4856310600 EYE LET BSR T0.2 (R2.3) C518 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
E115 4856310600 EYE LET BSR T0.2 (R2.3) C519 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
E116 4856310600 EYE LET BSR T0.2 (R2.3) C520 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
E117 4856310600 EYE LET BSR T0.2 (R2.3) C525 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
P501 485923512S CONN WAFER YW025-08 (STICK) C555 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
P502 485923202S CONN WAFER YW025-07 (STICK) C575 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
P601 485923162S CONN WAFER YW025-03 (STICK) C601 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
P701 485923192S CONN WAFER YW025-06 (STICK) C603 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
P702 485923162S CONN WAFER YW025-03 (STICK) C604 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
P801A 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C634 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
P801B 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) C701 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
R442 RS01Z309J- R M-OXIDE FILM 1W 3 OHM J (TAPPING) C702 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
R601 RF01Z688K- R FUSIBLE 1W 0.68 OHM K (TAPPING) C703 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
R814 RS02Z828JS R M-OXIDE FILM 2W 0.82 OHM J SMALL C704 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
ZZ200 PTMPJRH552 PCB MAIN RADIAL AS HKTV13(DTQ-14V6NK) C705 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C101 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C780 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C102 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C807 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C103 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP C809 CMXM2A102J C MYLAR 100V 1000PF J (TP)
C104 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C810 CCXB2H222K C CERA 500V B 2200PF K (TAPPING)
C106 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C811 CCXB2H222K C CERA 500V B 2200PF K (TAPPING)
C107 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP C818 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C212 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C819 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C235 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP C845 CEXF2A100V C ELECTRO 100V RSS 10MF (6.3X11) TP
C301 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C850 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C302 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C876 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C303 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP F801A 4857415001 CLIP FUSE PFC5000-0702
C305 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP F801B 4857415001 CLIP FUSE PFC5000-0702
C307 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) L601 58CX430599 COIL CHOKE AZ-9004Y 940K TP
C308 CMXM2A104J C MYLAR 100V 0.1MF J (TP) L805 58CX430599 COIL CHOKE AZ-9004Y 940K TP
C311 CEXD1H229Q C ELECTRO 50V RT 2.2MF (6.3X11) TP Q201 TKSC945CY- TR KSC 945C-Y (TAPPING)
C401 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) Q401 TKSC2330Y- TR KSC2330Y (TP)
C405 CEXF2C109V C ELECTRO 160V RSS 1MF (6.3X11) TP Q403 TKSC945CY- TR KSC 945C-Y (TAPPING)
C408 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP Q404 TKSC945CY- TR KSC 945C-Y (TAPPING)
C411 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP Q501 TKSC945CY- TR KSC 945C-Y (TAPPING)
C413 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) Q570 TKTA1266Y- TR KTA1266Y (TP)
C418 CMXM2A104J C MYLAR 100V 0.1MF J (TP) Q575 TKTA1275Y- TR KTA1275Y (TP)
C451 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP Q701 TKSC945CY- TR KSC 945C-Y (TAPPING)
C452 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP Q702 TKSC945CY- TR KSC 945C-Y (TAPPING)
C501 CMXL1J105J C MYLAR 63V MEU 1MF J Q703 TKSC945CY- TR KSC 945C-Y (TAPPING)
C507 CMXM2A224J C MYLAR 100V 0.22MF J Q704 TKTA1266Y- TR KTA1266Y (TP)
C508 CMXM2A224J C MYLAR 100V 0.22MF J Q707 TKSC945CY- TR KSC 945C-Y (TAPPING)
C509 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP Q708 TKSC945CY- TR KSC 945C-Y (TAPPING)
C511 CMXM2A333J C MYLAR 100V 0.033MF J (TP) Q804 TKTA1275Y- TR KTA1275Y (TP)
C512 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP Q805 TKTC3205Y- TR KTC3205Y (TP)
C513 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP Q851 TKSC945CY- TR KSC 945C-Y (TAPPING)
C516 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP R301 RN01B471JS R METAL FILM 1W 470 OHM J SMALL

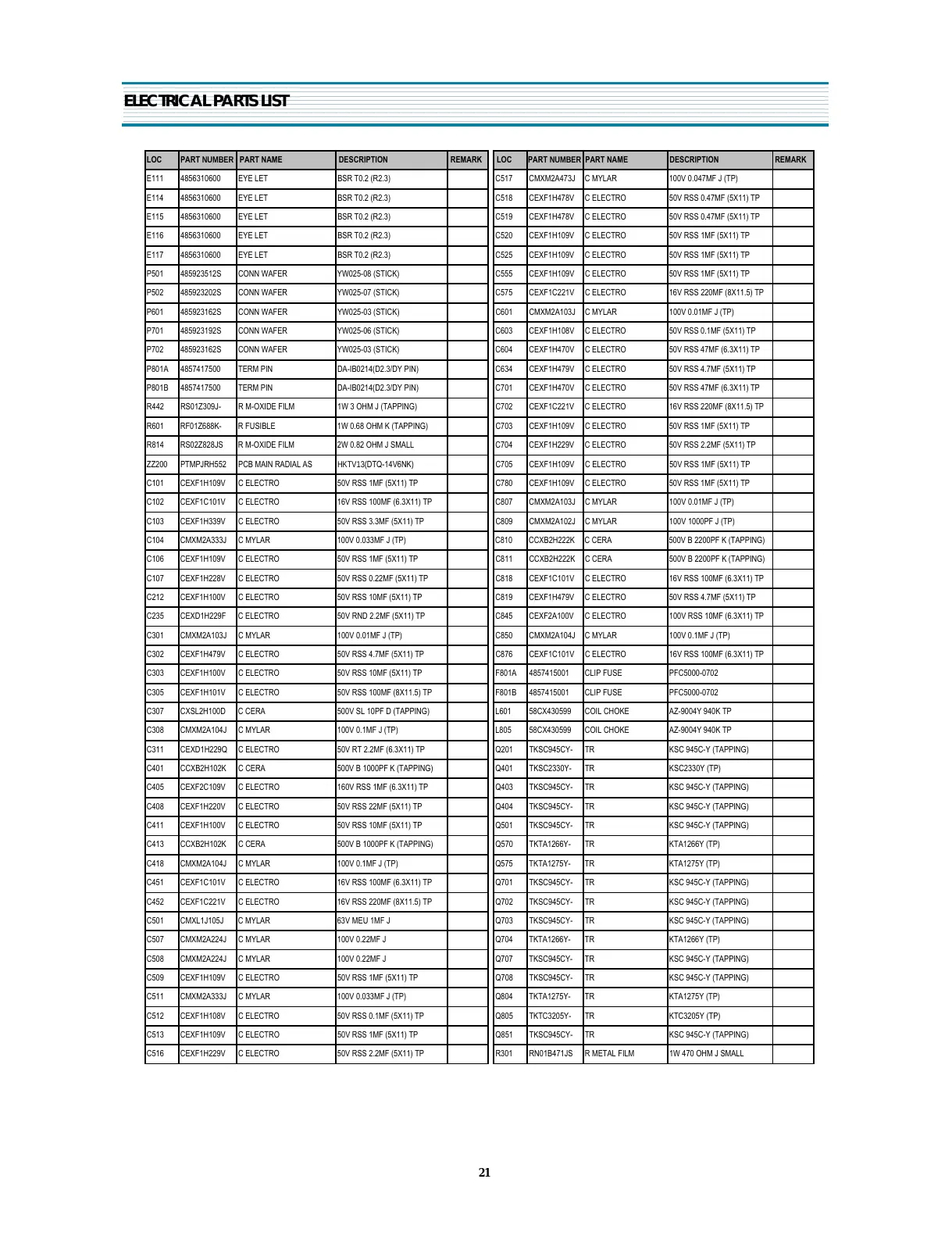

ELECTRICAL PARTS LIST
21
