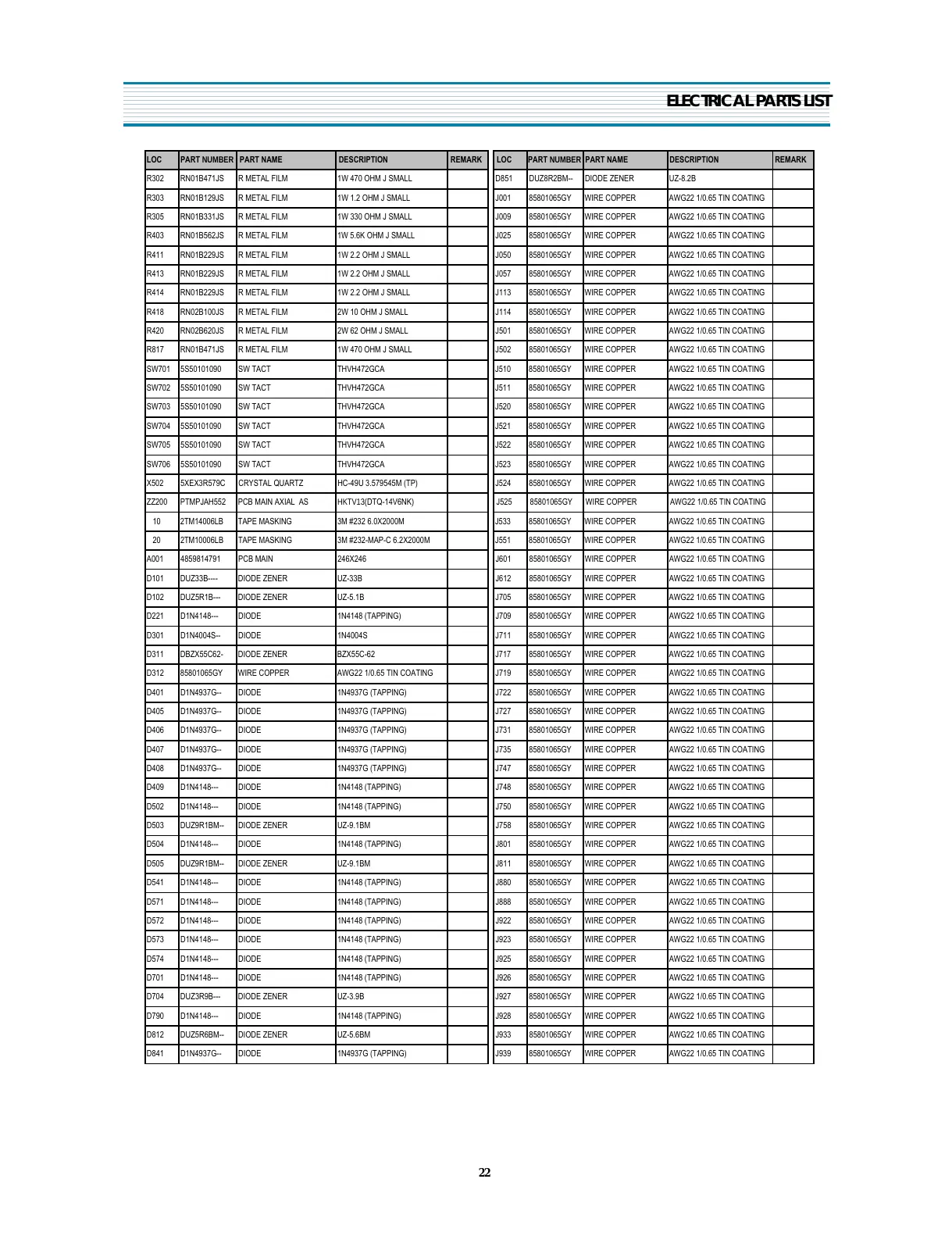

Emerson HKTV13 - Page 23

LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
R302 RN01B471JS R METAL FILM 1W 470 OHM J SMALL D851 DUZ8R2BM-- DIODE ZENER UZ-8.2B
R303 RN01B129JS R METAL FILM 1W 1.2 OHM J SMALL J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R305 RN01B331JS R METAL FILM 1W 330 OHM J SMALL J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R403 RN01B562JS R METAL FILM 1W 5.6K OHM J SMALL J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R411 RN01B229JS R METAL FILM 1W 2.2 OHM J SMALL J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R413 RN01B229JS R METAL FILM 1W 2.2 OHM J SMALL J057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R414 RN01B229JS R METAL FILM 1W 2.2 OHM J SMALL J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R418 RN02B100JS R METAL FILM 2W 10 OHM J SMALL J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R420 RN02B620JS R METAL FILM 2W 62 OHM J SMALL J501 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R817 RN01B471JS R METAL FILM 1W 470 OHM J SMALL J502 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW701 5S50101090 SW TACT THVH472GCA J510 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW702 5S50101090 SW TACT THVH472GCA J511 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW703 5S50101090 SW TACT THVH472GCA J520 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW704 5S50101090 SW TACT THVH472GCA J521 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW705 5S50101090 SW TACT THVH472GCA J522 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
SW706 5S50101090 SW TACT THVH472GCA J523 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
X502 5XEX3R579C CRYSTAL QUARTZ HC-49U 3.579545M (TP) J524 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
ZZ200 PTMPJAH552 PCB MAIN AXIAL AS HKTV13(DTQ-14V6NK) J525 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M J533 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M J551 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
A001 4859814791 PCB MAIN 246X246 J601 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D101 DUZ33B---- DIODE ZENER UZ-33B J612 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D102 DUZ5R1B--- DIODE ZENER UZ-5.1B J705 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D221 D1N4148--- DIODE 1N4148 (TAPPING) J709 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D301 D1N4004S-- DIODE 1N4004S J711 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D311 DBZX55C62- DIODE ZENER BZX55C-62 J717 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D312 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J719 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D401 D1N4937G-- DIODE 1N4937G (TAPPING) J722 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D405 D1N4937G-- DIODE 1N4937G (TAPPING) J727 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D406 D1N4937G-- DIODE 1N4937G (TAPPING) J731 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D407 D1N4937G-- DIODE 1N4937G (TAPPING) J735 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D408 D1N4937G-- DIODE 1N4937G (TAPPING) J747 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D409 D1N4148--- DIODE 1N4148 (TAPPING) J748 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D502 D1N4148--- DIODE 1N4148 (TAPPING) J750 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D503 DUZ9R1BM-- DIODE ZENER UZ-9.1BM J758 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D504 D1N4148--- DIODE 1N4148 (TAPPING) J801 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D505 DUZ9R1BM-- DIODE ZENER UZ-9.1BM J811 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D541 D1N4148--- DIODE 1N4148 (TAPPING) J880 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D571 D1N4148--- DIODE 1N4148 (TAPPING) J888 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D572 D1N4148--- DIODE 1N4148 (TAPPING) J922 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D573 D1N4148--- DIODE 1N4148 (TAPPING) J923 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D574 D1N4148--- DIODE 1N4148 (TAPPING) J925 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D701 D1N4148--- DIODE 1N4148 (TAPPING) J926 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D704 DUZ3R9B--- DIODE ZENER UZ-3.9B J927 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D790 D1N4148--- DIODE 1N4148 (TAPPING) J928 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D812 DUZ5R6BM-- DIODE ZENER UZ-5.6BM J933 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D841 D1N4937G-- DIODE 1N4937G (TAPPING) J939 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
