Emerson HKTV13 - Page 24

LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
J941 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R593 RD-4Z331J- R CARBON FILM 1/4 330 OHM J
J942 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R602 RD-2Z271J- R CARBON FILM 1/2 270 OHM J
J946 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R604 RD-4Z682J- R CARBON FILM 1/4 6.8K OHM J
J950 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R703 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
J953 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R709 RD-4Z392J- R CARBON FILM 1/4 3.9K OHM J
J954 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R743 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
J955 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R744 RD-4Z242J- R CARBON FILM 1/4 2.4K OHM J
J956 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R746 RD-4Z752J- R CARBON FILM 1/4 7.5K OHM J
J957 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R747 RD-4Z243J- R CARBON FILM 1/4 24K OHM J
J959 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R763 RD-4Z201J- R CARBON FILM 1/4 200 OHM J
J963 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R776 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
J964 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R777 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
J965 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R780 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
J966 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R789 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
J967 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R790 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
J970 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R796 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
J977 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R802 RD-4Z205J- R CARBON FILM 1/4 2M OHM J
L112 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) R804 RD-4Z201J- R CARBON FILM 1/4 200 OHM J
L502 5CPZ470K04 COIL PEAKING 47UH 10.5MM K (LAL04TB) R805 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J
L533 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM) R806 RD-4Z752J- R CARBON FILM 1/4 7.5K OHM J
L701 5CPZ220K02 COIL PEAKING 22UH K (AXIAL 3.5MM) R808 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
L807 5MC0000100 COIL BEAD HC-3550 R809 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
L811 5MC0000100 COIL BEAD HC-3550 R810 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
L841 5MC0000100 COIL BEAD HC-3550 R818 RD-4Z135J- R CARBON FILM 1/4 1.3M OHM J
R165 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J R819 RD-4Z561J- R CARBON FILM 1/4 560 OHM J
R227 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R820 RD-4Z392J- R CARBON FILM 1/4 3.9K OHM J
R351 RD-4Z682J- R CARBON FILM 1/4 6.8K OHM J R822 RD-4Z363J- R CARBON FILM 1/4 36K OHM J
R352 RN-4Z1603F R METAL FILM 1/4 160K OHM F R835 RD-4Z114J- R CARBON FILM 1/4 110K OHM J
R353 RN-4Z1502F R METAL FILM 1/4 15K OHM F R851 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R359 RD-4Z273J- R CARBON FILM 1/4 27K OHM J R854 RD-4Z244J- R CARBON FILM 1/4 240K OHM J
R360 RD-4Z333J- R CARBON FILM 1/4 33K OHM J R855 RD-4Z510J- R CARBON FILM 1/4 51 OHM J
R361 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J R856 RD-4Z241J- R CARBON FILM 1/4 240 OHM J
R362 RD-4Z113J- R CARBON FILM 1/4 11K OHM J R888 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
!
R401 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J ZZ300 PTCPMSH552 PCB CRT MANUAL AS HKTV13(DTQ-14V6NK)
R405 RD-2Z751J- R CARBON FILM 1/2 750 OHM J I705 1AN5862K-- IC AN5862K
R416 RD-2Z121J- R CARBON FILM 1/2 120 OHM J I706 1LP295033- IC REGULATOR LP2950 3.3V
R417 RD-4Z302J- R CARBON FILM 1/4 3K OHM J I707 1SDA555XFL IC MICOM OTP SDA555XFL
R451 RD-4Z153J- R CARBON FILM 1/4 15K OHM J P501A 4850708S02 CONNECTOR YH025-08+YST025+ULW=300
R452 RD-4Z113J- R CARBON FILM 1/4 11K OHM J P502A 4850707S07 CONNECTOR YH025-07+YST025+ULW=300
R501 RD-2Z151J- R CARBON FILM 1/2 150 OHM J P701A 4850706S02 CONNECTOR YH025-06+YST025+ULW=400
R502 RD-2Z151J- R CARBON FILM 1/2 150 OHM J P702A 4850703S20 CONNECTOR YH025-03+YST025+ULW=400
R554 RD-4Z102J- R CARBON FILM 1/4 1K OHM J Q902 TKTC3229-- TR KTC3229
R569 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J Q903 TKTC3229-- TR KTC3229
R570 RD-4Z302J- R CARBON FILM 1/4 3K OHM J Q904 TKTC3229-- TR KTC3229
R579 RD-4Z102J- R CARBON FILM 1/4 1K OHM J SCT1 4859303930 SOCKET CRT ISMG03S INCHANG
R591 RD-4Z331J- R CARBON FILM 1/4 330 OHM J X702 5XE6R0000C CRYSTAL QUARTZ HC-49/U 6.000MHZ 20PPM
R592 RD-4Z331J- R CARBON FILM 1/4 330 OHM J ZZ200 PTCPJ2H552 PCB CRT CHIP AS HKTV13(DTQ-14V6NK)

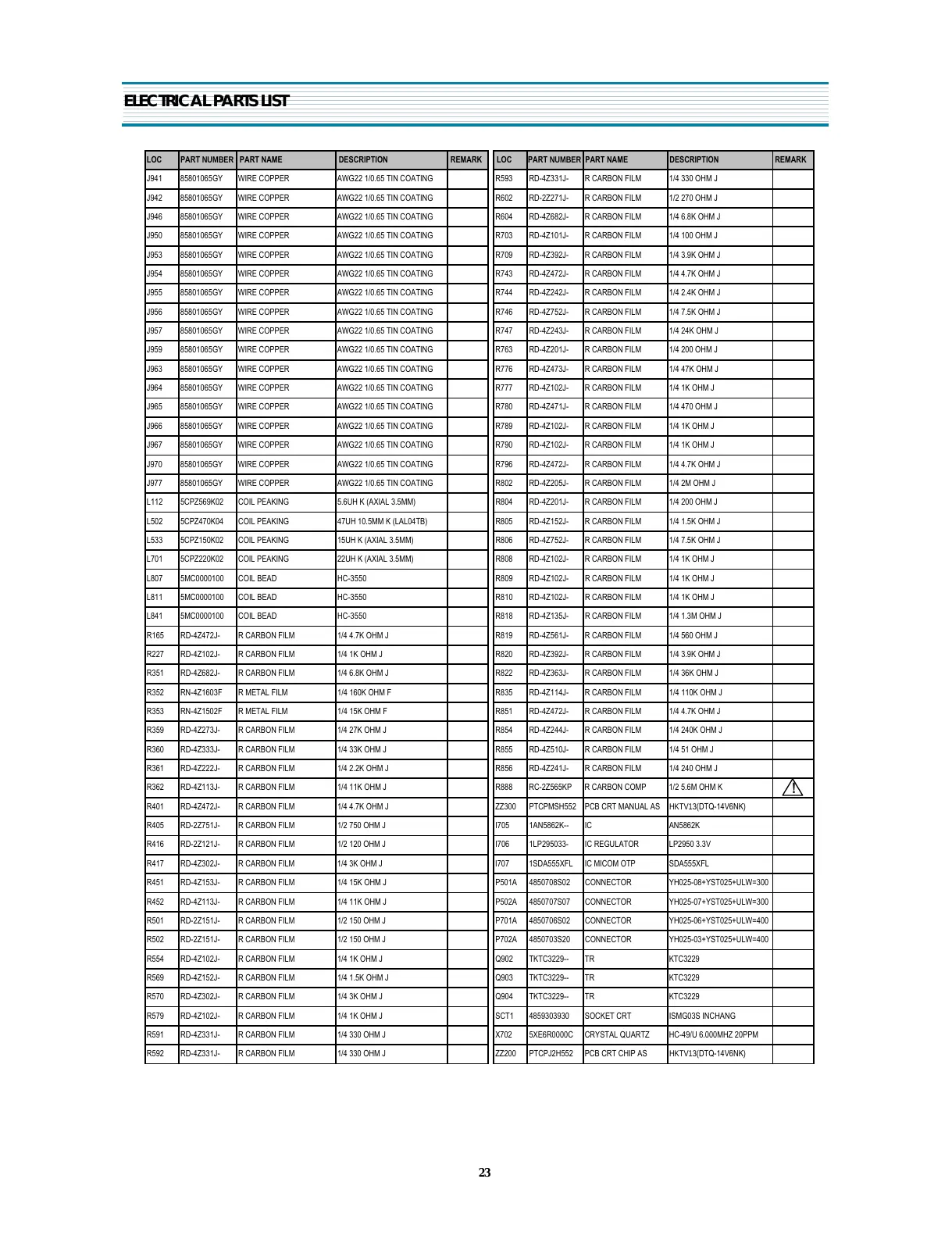

ELECTRICAL PARTS LIST
23
