Emerson HKTV13 - Page 25

A
LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
CC720 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC924 HRFT471JCA R CHIP 1/10 470 OHM J 2012
CC721 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC925 HRFT471JCA R CHIP 1/10 470 OHM J 2012
CC724 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 ZZ200 PTCPJ0H552 PCB CRT ODD SHAPE
HK
TV13
(
DTQ-14V6NK
)
CC725 HCQK330JCA C CHIP CERA 50V CH 33PF J 2012 C912 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP
CC726 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 ZZ200 PTCPJBH552 PCB CRT M-10 AS HKTV13(DTQ-14V6NK)
CC727 HCQK330JCA C CHIP CERA 50V CH 33PF J 2012 E091 4856310300 EYE LET BSR T0.2 (R1.6)
CC731 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 E092 4856310300 EYE LET BSR T0.2 (R1.6)
CC732 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 E093 4856310300 EYE LET BSR T0.2 (R1.6)
CC900 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 ZZ200 PTCPJRH552 PCB CRT RADIAL AS HKTV13(DTQ-14V6NK)
CC902 HCQK271JCA C CHIP CERA 50V CH 270PF J 2012 C721 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CC903 HCQK271JCA C CHIP CERA 50V CH 270PF J 2012 C722 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CC904 HCQK271JCA C CHIP CERA 50V CH 270PF J 2012 C724 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
JC01 HRFT000-CA R CHIP 1/10 0 OHM 2012 C725 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
JC03 HRFT000-CA R CHIP 1/10 0 OHM 2012 C726 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
JC04 HRFT000-CA R CHIP 1/10 0 OHM 2012 C727 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
JC05 HRFT000-CA R CHIP 1/10 0 OHM 2012 C729 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
JC06 HRFT000-CA R CHIP 1/10 0 OHM 2012 C732 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
JC08 HRFT000-CA R CHIP 1/10 0 OHM 2012 L901 5CPX221J-- COIL PEAKING 220UH J (RADIAL)
JC09 HRFT000-CA R CHIP 1/10 0 OHM 2012 Q720 TKTA1266Y- TR KTA1266Y (TP)
JC10 HRFT000-CA R CHIP 1/10 0 OHM 2012 R913 RN02B123JS R METAL FILM 2W 12K OHM J SMALL
RC721 HRFT102JCA R CHIP 1/10 1K OHM J 2012 R914 RN02B123JS R METAL FILM 2W 12K OHM J SMALL
RC722 HRFT102JCA R CHIP 1/10 1K OHM J 2012 R915 RN02B123JS R METAL FILM 2W 12K OHM J SMALL
RC723 HRFT102JCA R CHIP 1/10 1K OHM J 2012 ZZ200 PTCPJAH552 PCB CRT AXIAL AS HKTV13(DTQ-14V6NK)
RC724 HRFT102JCA R CHIP 1/10 1K OHM J 2012 A001 4859828213 PCB CRT 123X99(246X246/4)
RC725 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 D721 D1N4148--- DIODE 1N4148 (TAPPING)
RC740 HRFT103JCA R CHIP 1/10 10K OHM J 2012 D722 D1N4148--- DIODE 1N4148 (TAPPING)
RC741 HRFT471JCA R CHIP 1/10 470 OHM J 2012 D723 DUZ3R9B--- DIODE ZENER UZ-3.9B
RC742 HRFT102JCA R CHIP 1/10 1K OHM J 2012 D724 D1N4148--- DIODE 1N4148 (TAPPING)
RC746 HRFT103JCA R CHIP 1/10 10K OHM J 2012 D725 D1N4148--- DIODE 1N4148 (TAPPING)
RC748 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 J901 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC749 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 J902 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC754 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 J903 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC761 HRFT622JCA R CHIP 1/10 6.2K OHM J 2012 J904 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC762 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012 J905 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC763 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 J906 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC764 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012 J907 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC767 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 J908 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC768 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012 J938 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RC769 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 L720 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
RC785 HRFT103JCA R CHIP 1/10 10K OHM J 2012 L721 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
RC913 HRFT121JCA R CHIP 1/10 120 OHM J 2012 L722 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
RC914 HRFT121JCA R CHIP 1/10 120 OHM J 2012 R745 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
RC915 HRFT121JCA R CHIP 1/10 120 OHM J 2012 R901 RD-4Z474J- R CARBON FILM 1/4 470K OHM J
RC917 HRFT241JCA R CHIP 1/10 240 OHM J 2012 R910 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J
RC918 HRFT241JCA R CHIP 1/10 240 OHM J 2012 R911 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J
RC919 HRFT241JCA R CHIP 1/10 240 OHM J 2012 R912 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J
RC923 HRFT471JCA R CHIP 1/10 470 OHM J 2012

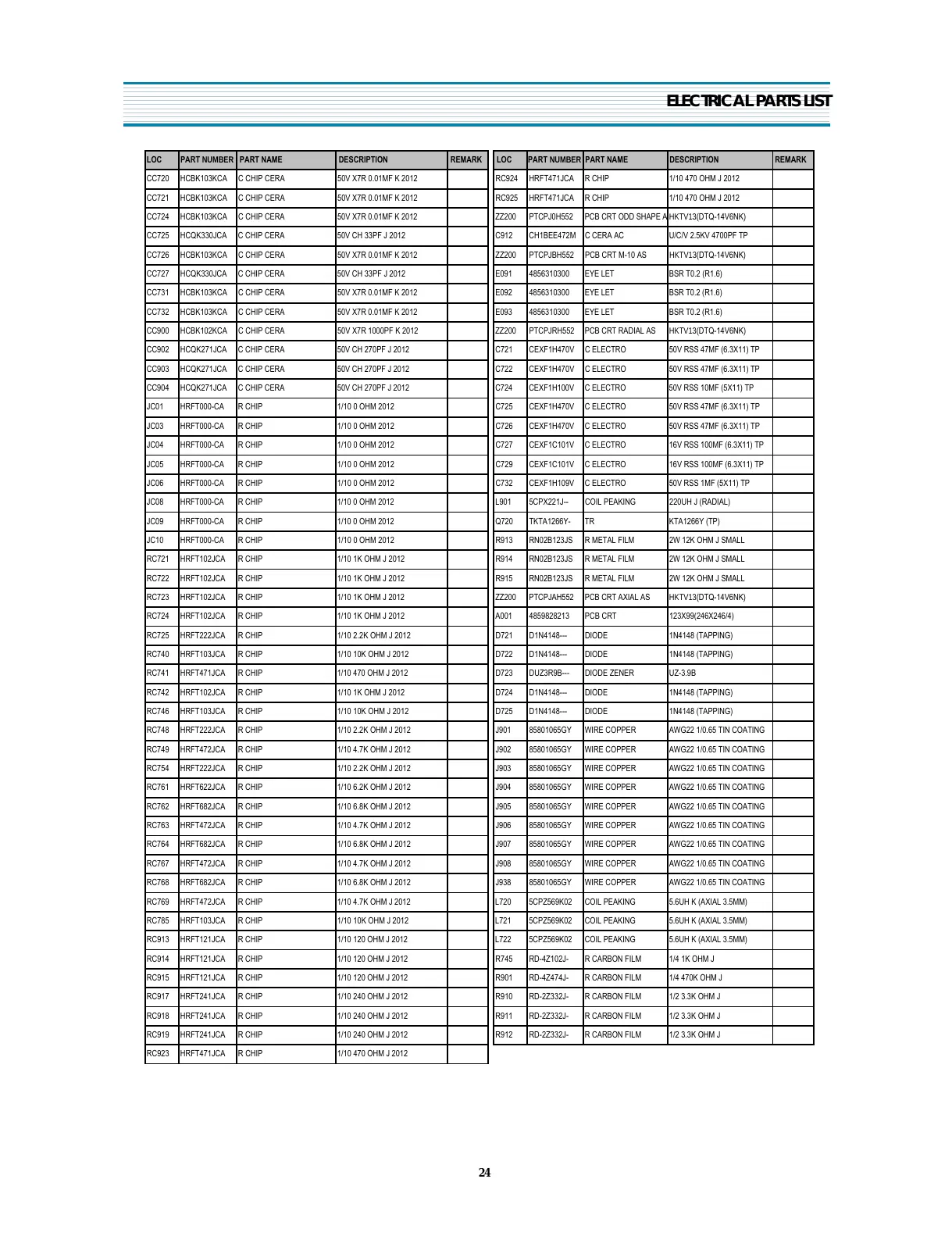

ELECTRICAL PARTS LIST
