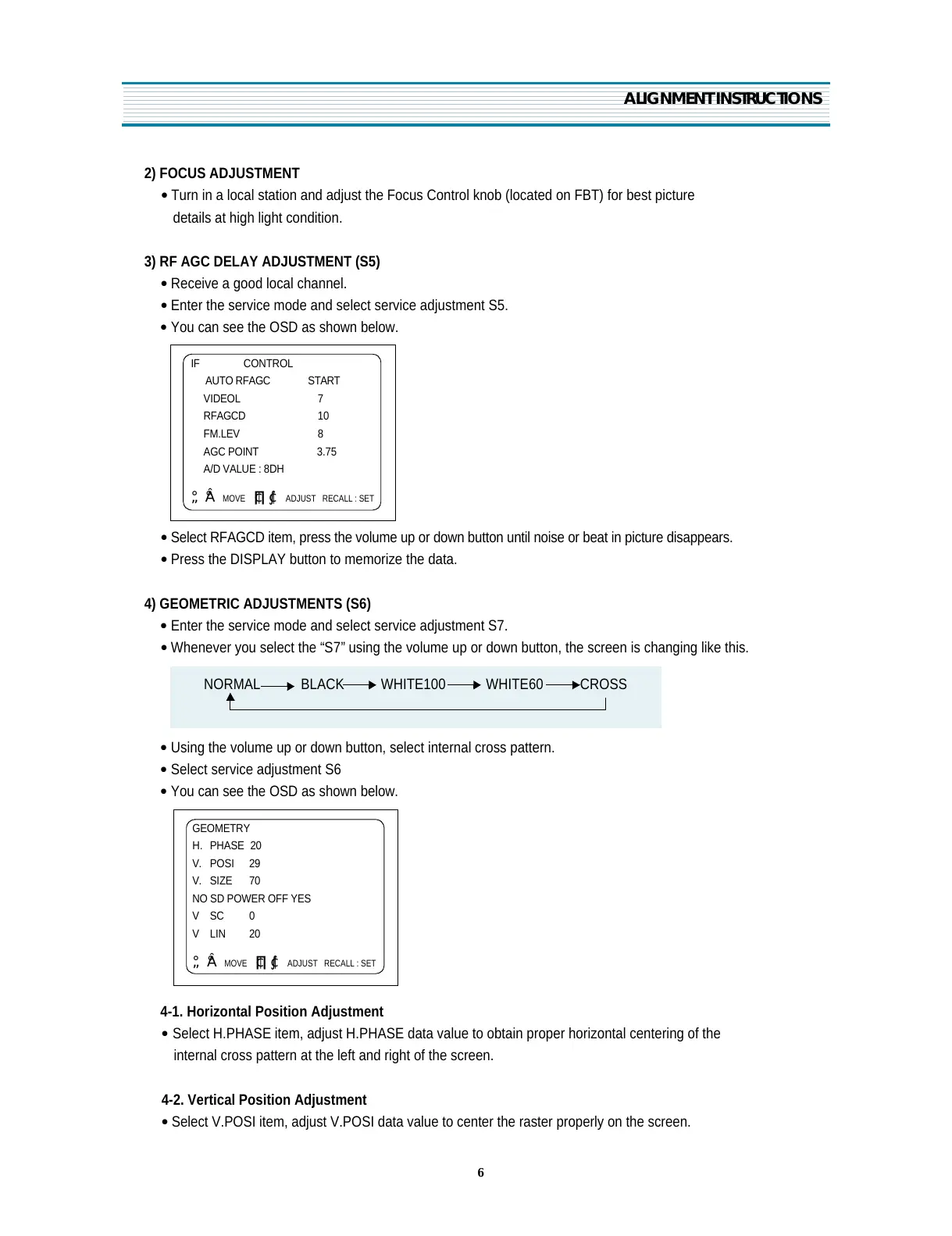

6
2) FOCUS ADJUSTMENT
•
Turn in a local station and adjust the Focus Control knob (located on FBT) for best picture
details at high light condition.
3) RF AGC DELAY ADJUSTMENT (S5)
•
Receive a good local channel.
•
Enter the service mode and select service adjustment S5.
•
You can see the OSD as shown below.
•
Select RFAGCD item, press the volume up or down button until noise or beat in picture disappears.
•
Press the DISPLAY button to memorize the data.
4) GEOMETRIC ADJUSTMENTS (S6)
•
Enter the service mode and select service adjustment S7.
•
Whenever you select the “S7” using the volume up or down button, the screen is changing like this.
•
Using the volume up or down button, select internal cross pattern.
•
Select service adjustment S6
•
You can see the OSD as shown below.
4-1. Horizontal Position Adjustment
•
Select H.PHASE item, adjust H.PHASE data value to obtain proper horizontal centering of the
internal cross pattern at the left and right of the screen.
4-2. Vertical Position Adjustment
•
Select V.POSI item, adjust V.POSI data value to center the raster properly on the screen.
ALIGNMENT INSTRUCTIONS
IF
CONTROL
AUTO RFAGC START
VIDEOL
7
RFAGCD 10
FM.LEV 8
AGC POINT 3.75
A/D VALUE : 8DH
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
GEOMETRY
H. PHASE 20
V. POSI 29
V. SIZE 70
NO SD POWER OFF YES
V SC 0
V LIN 20
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
NORMAL BLACK WHITE100 WHITE60 CROSS
