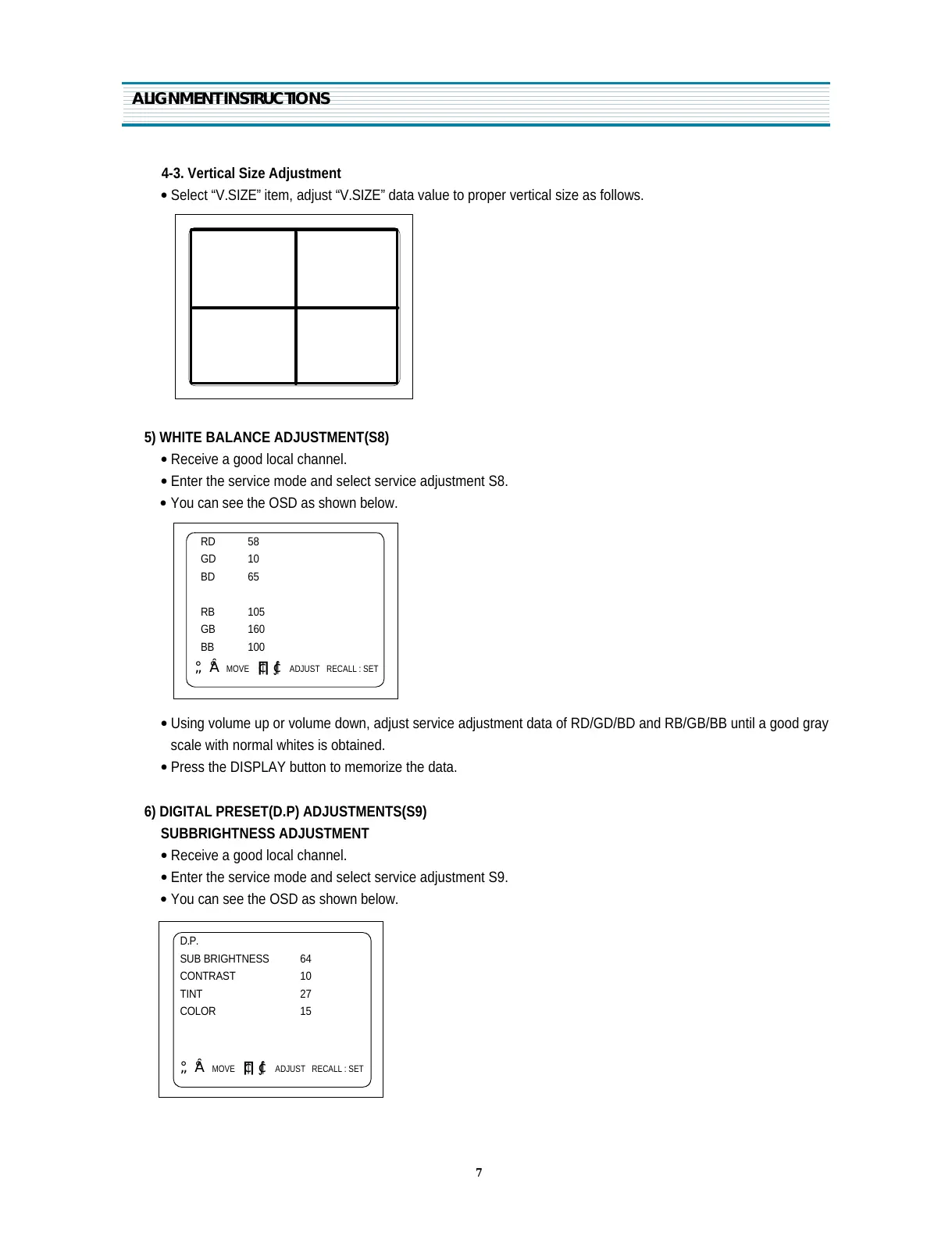

ALIGNMENT INSTRUCTIONS
4-3. Vertical Size Adjustment
•
Select “V.SIZE” item, adjust “V.SIZE” data value to proper vertical size as follows.
5) WHITE BALANCE ADJUSTMENT(S8)
•
Receive a good local channel.
•
Enter the service mode and select service adjustment S8.
•
You can see the OSD as shown below.
•
Using volume up or volume down, adjust service adjustment data of RD/GD/BD and RB/GB/BB until a good gray
scale with normal whites is obtained.
•
Press the DISPLAY button to memorize the data.
6) DIGITAL PRESET(D.P) ADJUSTMENTS(S9)
SUBBRIGHTNESS ADJUSTMENT
•
Receive a good local channel.
•
Enter the service mode and select service adjustment S9.
•
You can see the OSD as shown below.
RD 58
GD 10
BD 65
RB 105
GB 160
BB 100
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
D.P.
SUB BRIGHTNESS 64
CONTRAST 10
TINT 27
COLOR 15
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
