34

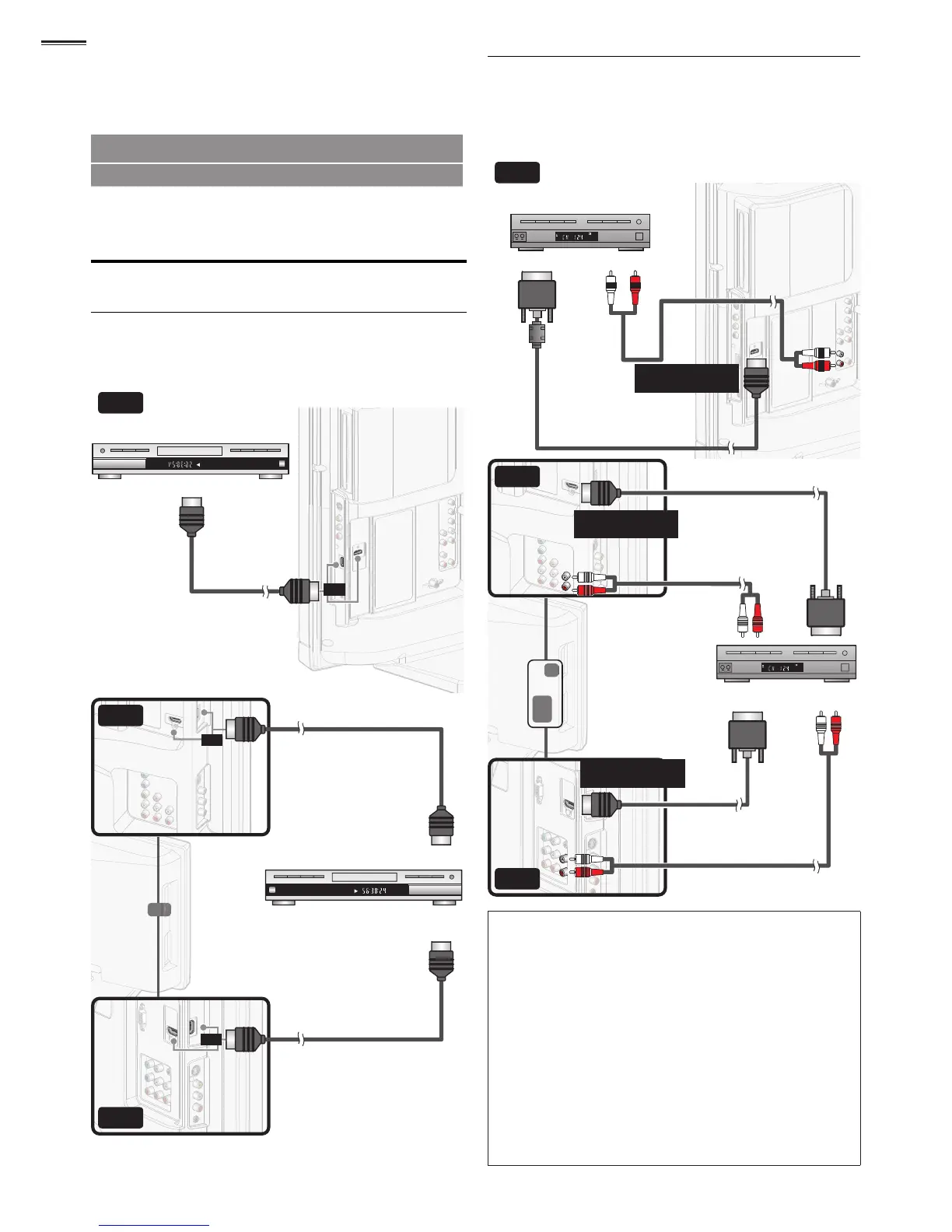

CONNECTING DEVICES
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Before you connect:
Be sure other device is connected properly before plugging in
the AC power cord.
External Device Connection
HDMI Connection
HDMI connection offers the highest picture quality.
HDMI
(High-Defi nition Multimedia Interface) transports high defi nition
digital video and multi-channel digital audio through a single cable.
CHAPTER 15
REPEAT A-B
TITLE 5
BD/DVD recorderBD/DVD recorder
with the HDMI output jackwith the HDMI output jack
HDMI cable HDMI cable
or
32”
CHAPTER 15
REPEAT A-B
TITLE 5
BD/DVD recorderBD/DVD recorder
with the HDMI output jackwith the HDMI output jack
HDMI cableHDMI cable
HDMI cableHDMI cable
or
or
26”
19”
HDMI-DVI Connection
Use an HDMI-DVI conversion cable to connect the unit to
external video devices equipped with DVI output jack.
(Use HDMI 1 Input jack only and Audio L/R below HDMI 1
Input jack on rear of TV.)
STEREO
PCM
HDMI-DVI conversion cableHDMI-DVI conversion cable
cable receiver or satellite box cable receiver or satellite box
with the DVI output jackwith the DVI output jack
audio cables audio cables
To HDMI 1 Input
jack only
32”
STEREO
PCM
HDMI-DVIHDMI-DVI
conversion cableconversion cable
HDMI-DVIHDMI-DVI
conversion cableconversion cable
audio cablesaudio cables
audio cablesaudio cables
To HDMI 1 Input
jack only
To HDMI 1 Input
jack only
26”
19”
cable receiver or satellite box cable receiver or satellite box
with the DVI output jackwith the DVI output jack
Note
• Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable).
High Speed HDMI cable is recommended for the better
compatibility.
For HDMI connection (use HDMI 1 or 2 Input jack)
• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/30/60 Hz
of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.
• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2
channel audio signal (LPCM).
• This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as well
and the audio signals are converted from digital to analog.
• DVI does not display 480i image which is not in compliance with
EIA/CEA-861/861B.
