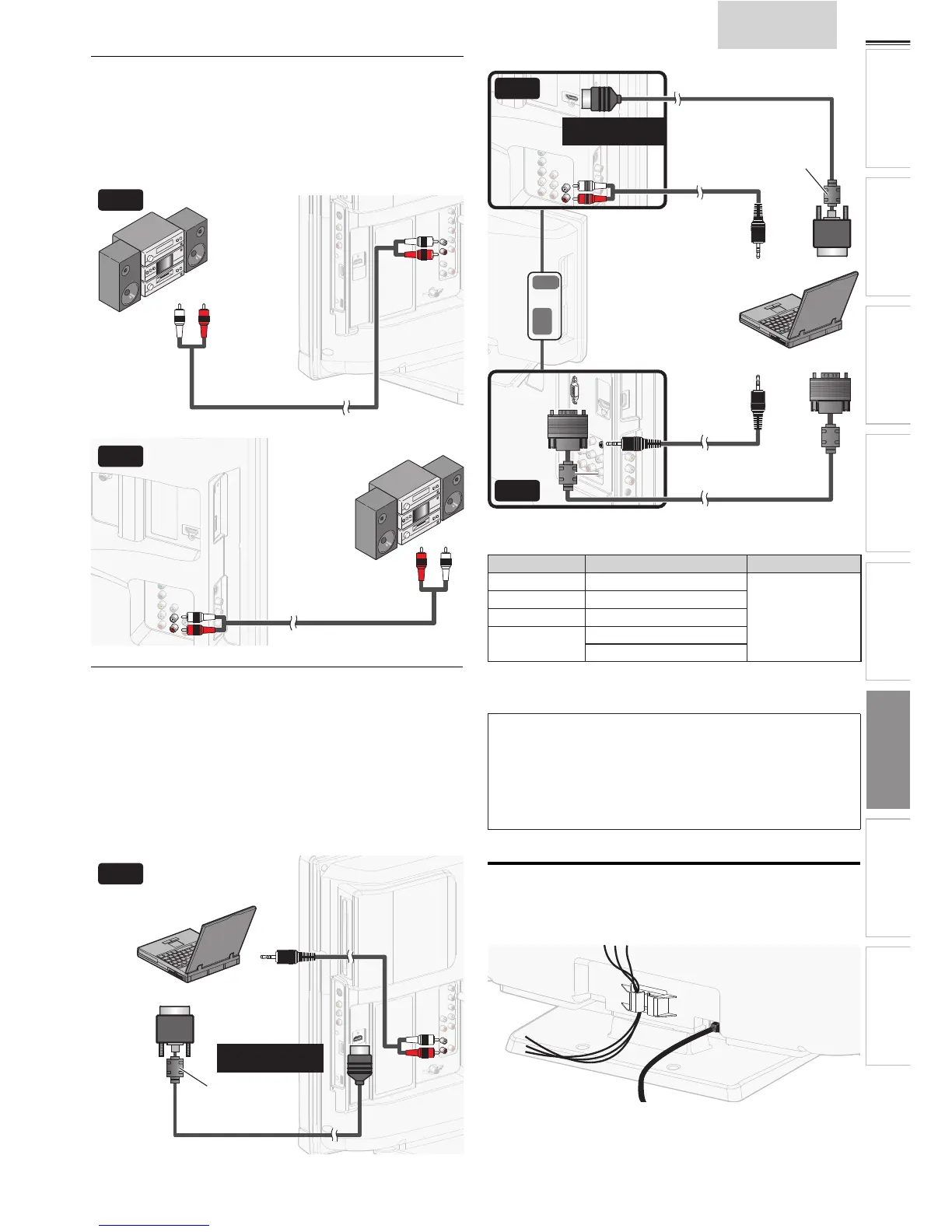

Analog Audio Output Connection
<LD320EM2 / LD260EM2 only>
(for both analog and digital broadcasting)
If you connect this unit to an external analog audio device, you
can enjoy stereo (2-channel) audio.
Use audio cables to connect the unit to external analog audio
devices.
stereo stereo
system system
audio cables audio cables
32”
stereo systemstereo system
audio cablesaudio cables
26”
PC Connection
If you connect this unit to your PC, you can use this unit as a
PC monitor.
For LD320EM2 and LD260EM2, the unit can be connected to
your PC that has a DVI terminal. Use an HDMI-DVI conversion
cable for this connection and it requires stereo mini plug
conversion cable as well.
For LD190EM2, the unit is equipped with a PC input jack. Use
an VGA cable for this connection and it requires stereo mini
plug audio cable as well.
HDMI-DVI conversion cableHDMI-DVI conversion cable
HDMI-DVI conversion HDMI-DVI conversion
cable should be with cable should be with
ferrite core.ferrite core.
personal computerpersonal computer
To HDMI 1 Input
jack only
32”
audio cablesaudio cables
VGA cableVGA cable
To HDMI 1 Input
jack only
HDMI-DVI conversionHDMI-DVI conversion
cable should be withcable should be with
ferrite core.ferrite core.
personal computerpersonal computer
stereo mini plug cablestereo mini plug cable
VGA cable should be VGA cable should be
with ferrite core.with ferrite core.
26”
19”
The following video signals can be displayed:
Format Resolution Refresh rate
VGA 640 x 480
60Hz
SVGA 800 x 600
XGA 1,024 x 768
WXGA
1,280 x 768
1,360 x 768
Other formats or non-standard signals will not be displayed
correctly.
Note
• Please purchase the VGA cable or HDMI-DVI conversion cable
that has a ferrite core.
• The following operations may reduce noise.
- Attach a ferrite core to the AC power cord of your PC.
- Unplug the AC power cord and use the built-in battery of your
PC.
Cable Management
<LD320EM2 / LD260EM2 only>
Keep the cables through this holder to avoid tangling them.
mini audio cablemini audio cable
HDMI-DVI conversion cableHDMI-DVI conversion cable
audio cablesaudio cables
mini audio cablemini audio cable
