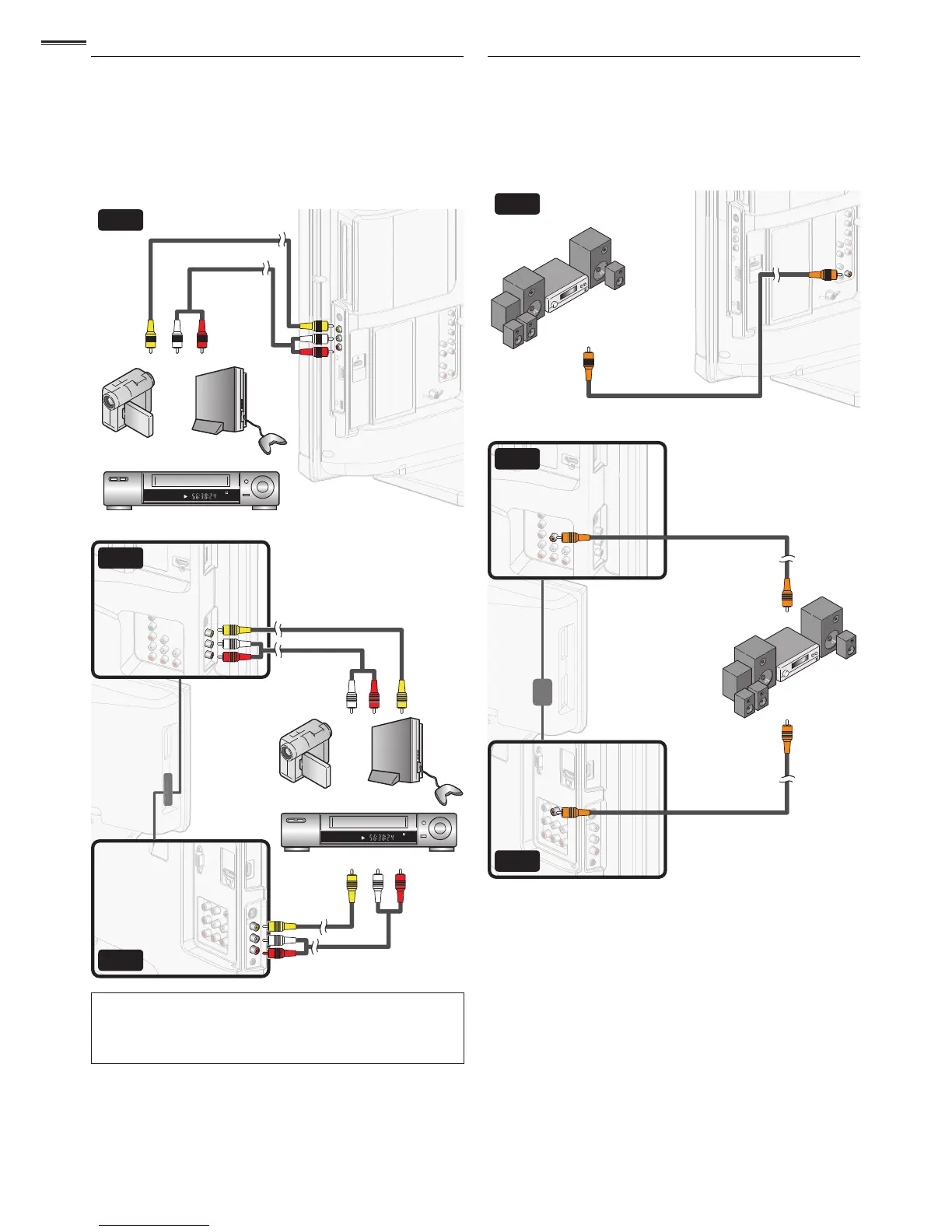

Composite Video Connection
Composite Video connection offers standard picture quality
for video devices connected to the unit. If you connect to the
unit’s Composite Video Input jack, connect audio cables to
the Audio L/R Input jacks right below the Composite Video
connector jacks.
When the Audio is monaural, then only connect to the Audio
L Input jack.
STEREO
STAND-BY
audio cables audio cables
video cable video cable
camcorder camcorder video game video game
VCRVCR
32”
STEREO
STAND-BY
audio cablesaudio cables
audio cables audio cables
video cablevideo cable
video cablevideo cable
camcorder camcorder video game video game
VCRVCR
26”
19”
Note
• If you connect to the S-Video Input jack and the Composite Video
Input jack at the same time, the S-Video connection will have
priority.
Digital Audio Output Connection
(for digital broadcasting and DVD functions only)
If you connect this unit to an external digital audio device, you
can enjoy multi-channel audio like 5.1ch digital broadcasting
sound.
Use a digital audio coaxial cable to connect the unit to
external digital audio devices.
Dolby Digital Dolby Digital
decoderdecoder
digital audio coaxial cabledigital audio coaxial cable
32”
Dolby Digital Dolby Digital
decoderdecoder
digital audio coaxial cabledigital audio coaxial cable
digital audio coaxial cabledigital audio coaxial cable
26”
19”
