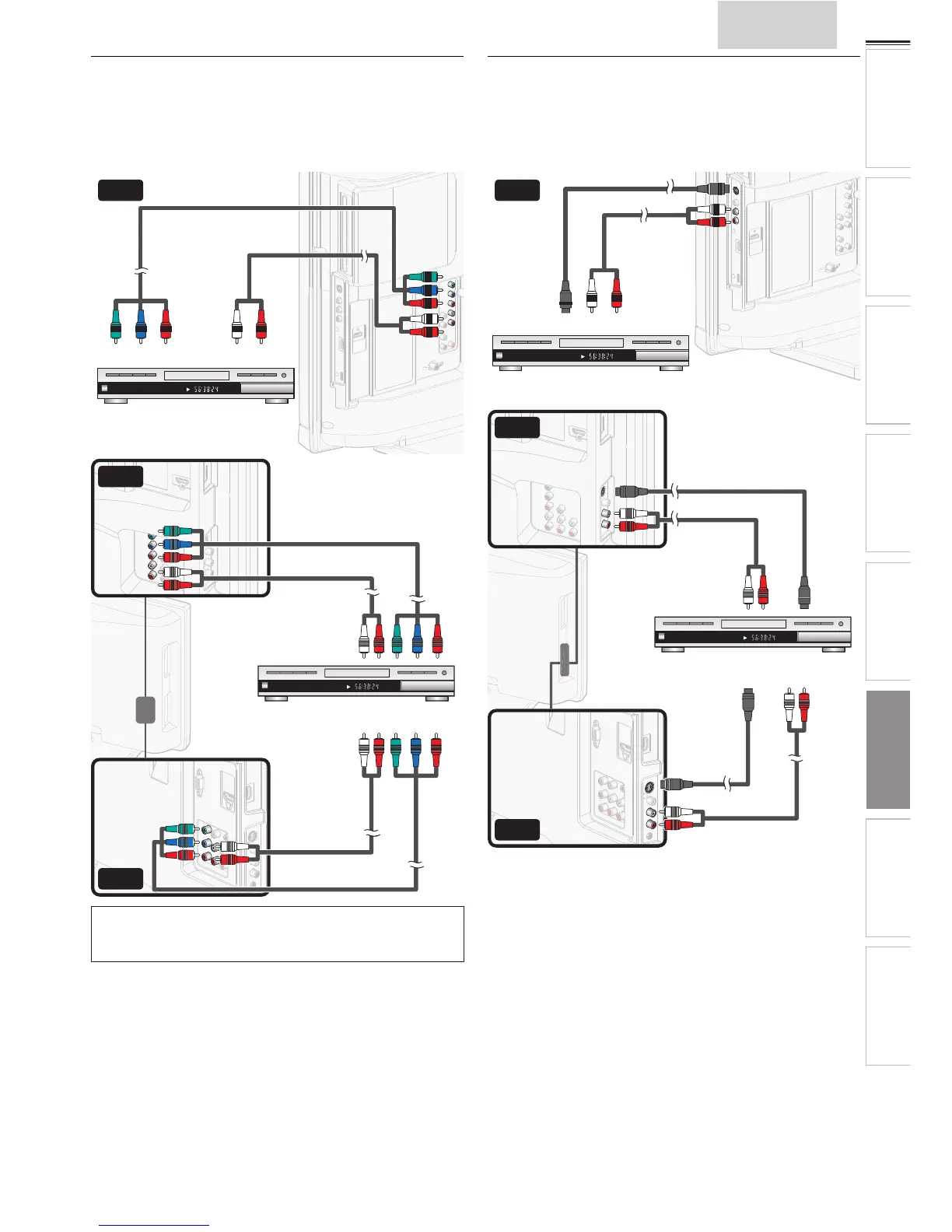

Component Video Connection
Component Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video Input jacks,
connect Analog Audio cables to the Analog Audio L/R Input
jacks for the Component Video connector jacks.
CHAPTER 15
REPEAT A-B
TITLE 5
(red)(red)(blue)(blue)(green)(green)
BD/DVD recorder with BD/DVD recorder with
the component video output jacksthe component video output jacks
audio cables audio cables
component video cables (redcomponent video cables (red
/ /
blueblue
/ /
green)green)
32”
CHAPTER 15
REPEAT A-B
TITLE 5
(red)(red)(blue)(blue)(green)(green)
BD/DVD recorder with BD/DVD recorder with
the component video output jacksthe component video output jacks
audio cablesaudio cables
audio cablesaudio cables
component video cablescomponent video cables
(red (red
/ /
blueblue
/ /
green)green)
component video cables
(red
/
blue
/
green)
26”
19”
(red)(red)(blue)(blue)(green)(green)
Note
• The unit accepts 480i / 480p / 720p and 1080i of video signals for
this connection.
S-Video Connection
S-Video connection offers good picture quality for video
devices connected to the unit.
If you connect to the unit’s S-Video Input jack, connect audio
cables to the Audio L/R jacks right below the Composite Video
connector.
CHAPTER 15
REPEAT A-B
TITLE 5
S-Video cable S-Video cable
BD/DVD recorder, camcorder and BD/DVD recorder, camcorder and
VCR with the S-Video output jack VCR with the S-Video output jack
audio cables audio cables
32”
CHAPTER 15
REPEAT A-B
TITLE 5
S-Video cableS-Video cable
S-Video cableS-Video cable
BD/DVD recorder, camcorder and BD/DVD recorder, camcorder and
VCR with the S-Video output jack VCR with the S-Video output jack
audio cablesaudio cables
audio cablesaudio cables
26”
19”
To Next Page
