Configuration and Use Manual 121
Installation Architectures and Components
Transmitter Menus IndexNE53 HistoryDiagrams

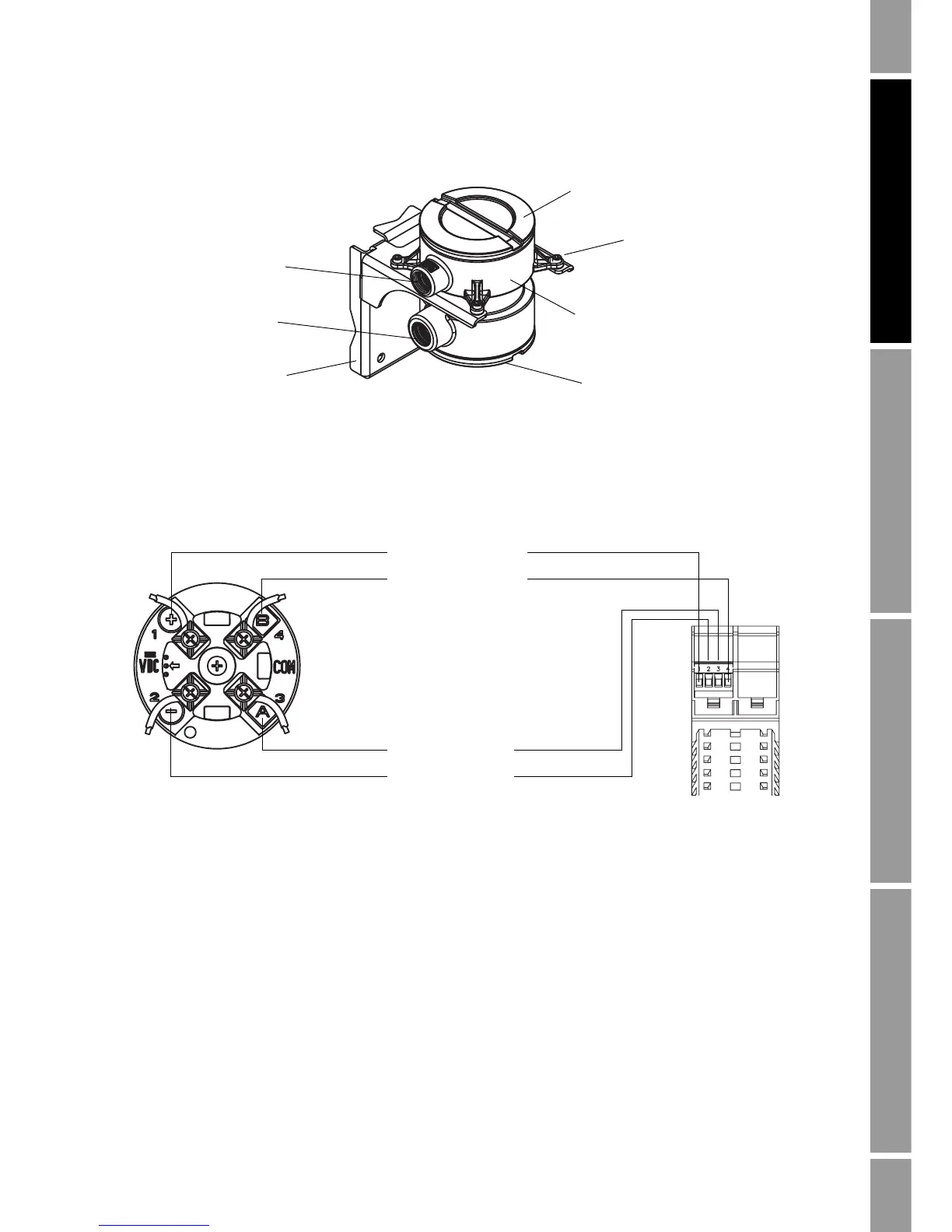

Figure B-2 Remote core processor components
Figure B-3 4-wire cable between Model 1500 transmitter and standard core processor
End-cap
Mounting bracket
Core processor lid
Core processor housing
Conduit opening
for 4-wire cable
Conduit opening
for 9-wire cable
4 X Cap screws (4 mm)
Core processor
terminals
Transmitter terminals for
sensor connection
User-supplied or
factory-supplied 4-wire cable
VDC+ (Red)
VDC– (Black)
RS-485/B (Green)
RS-485/A (White)
