Using the Filling and Dosing Application
Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

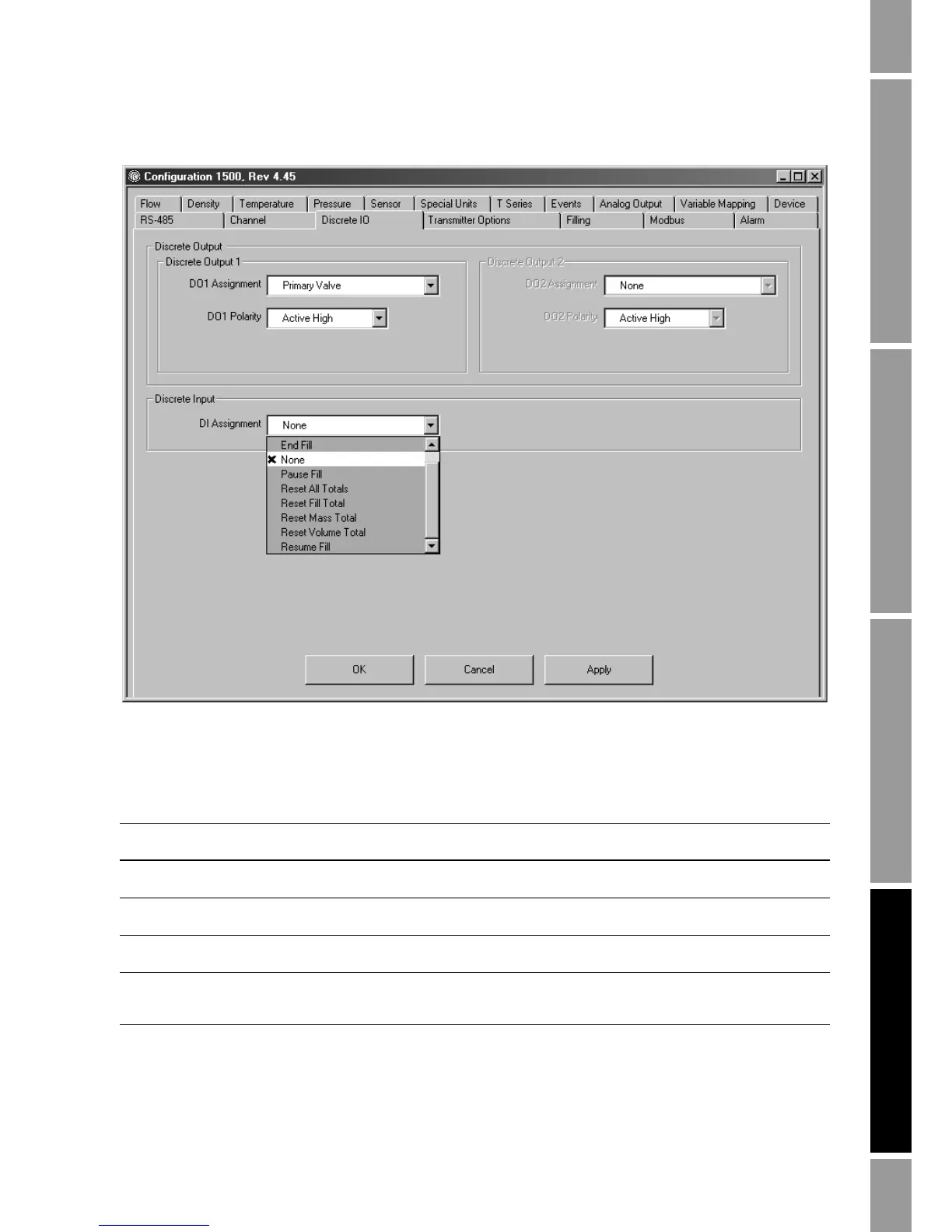

Figure 8-2 Discrete IO panel
Note: The Reset All Totals function (see Section 4.7) includes resetting the fill total.
Table 8-3 Fill control functions
Function ON state actions
Begin fill • Starts the fill.
• The fill total is automatically reset before filling begins.
End fill • Permanently stops the fill.
• The fill cannot be resumed.
Pause fill • Temporarily stops the fill.
• The fill can be resumed if the fill total is less than the fill target.
Resume fill • Restarts a fill that has been paused.
• Counting resumes from the point at which the fill was paused.
Reset fill total • Resets fill total to zero.
• Reset cannot be performed while a fill is running or while a fill is paused. Before a fill can be reset,
the fill target must be reached or the fill must be ended.
