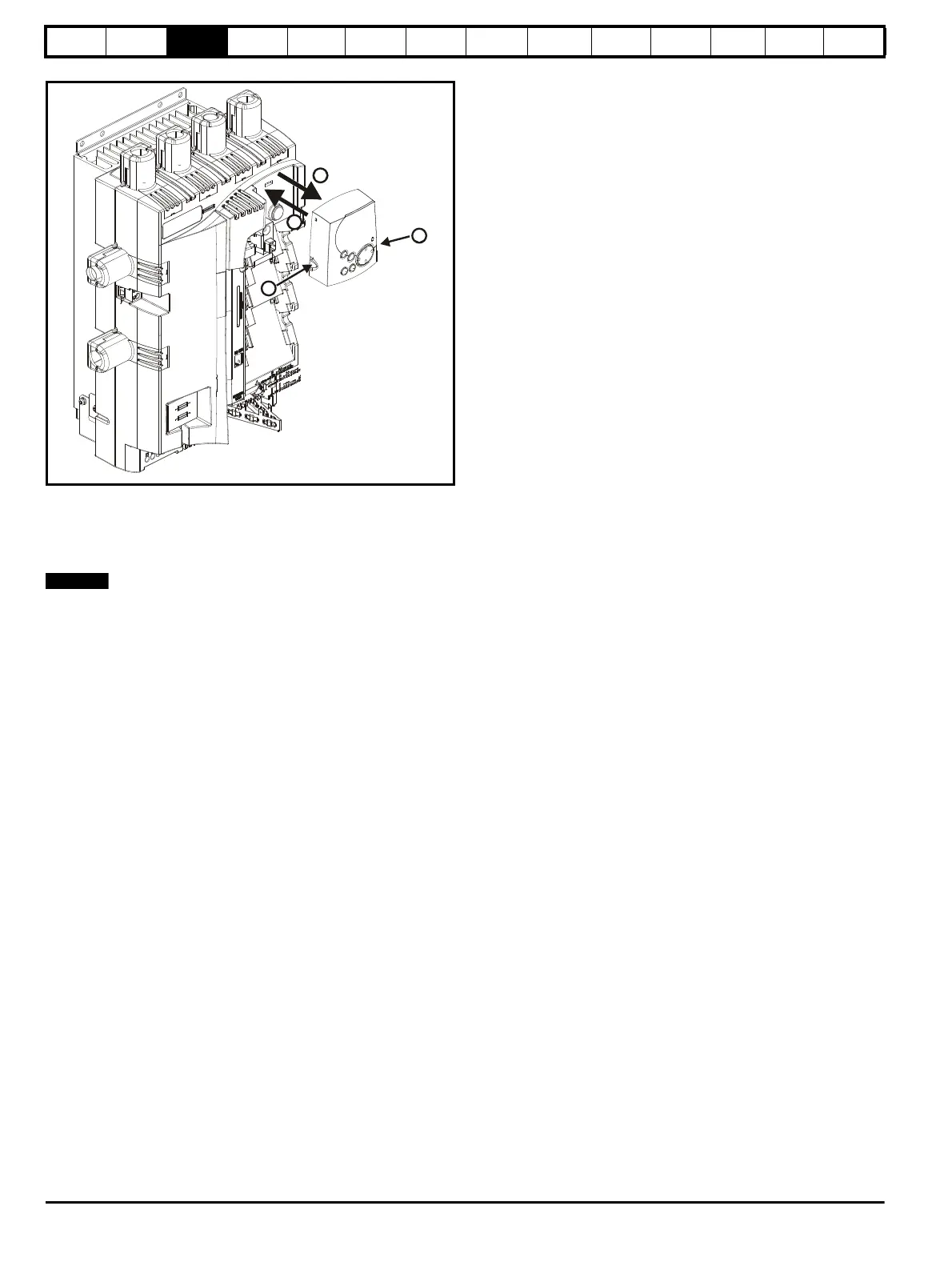

Figure 3-4 Removal and installation of a keypad
To fit, align the MP-Keypad and press gently in the direction shown until
it clicks into position (A).
To remove, while pressing the tabs inwards (B), gently lift the MP-
Keypad in the direction indicated (C).
The keypad can be installed / removed while the drive is powered up and
running a motor, providing that the drive is not operating in keypad
mode.
