Chapter 2 Installation Instruction 5
NetSure 211 C45 Embedded Power Supply System User Manual

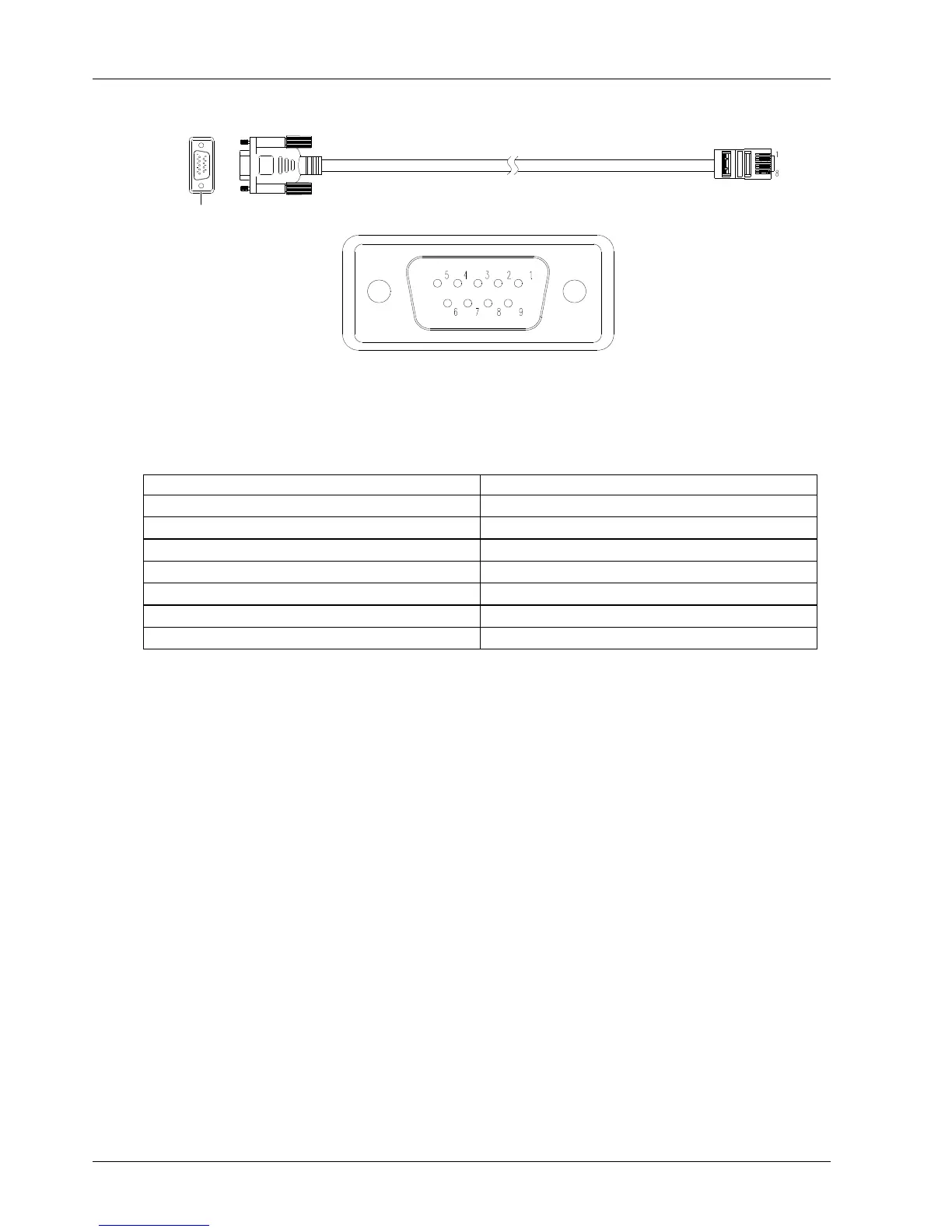

The specifications of RS232 cable of the two systems are the same. The RS232 cable is shown in Figure 2-1.
DB9
X1
RJ45
X2
A
A amplified view
Figure 2-1 RS232 cable
The definition of the RS232 cable connector is shown in Table 2-7. Users should make RS232 cable according to the
description in Table 2-7.
Table 2-7 Definition of the RS232 cable connector
DB9
RJ45
X1.2
X2.3
X1.3
X2.6
X1.4
X2.7
X1.5
X2.4 & X2.5
X1.6
X2.2
X1.7
X2.8
X1.8
X2.1
2.3 Mechanical Installation
1. Install brackets.
Fix the brackets on the power supply subrack with bolts. Users can choose proper installation position according to
actual instance.
2. Install the power supply subrack.
Fix the subrack in the cabinet with fixing screws. The installation dimensions are shown in Figure 2-2 and Figure 2-3.
