Chapter 1 Overview 1
NetSure 211 C45 Embedded Power Supply System User Manual
Chapter 1 Overview
This chapter introduces model description, composition and configuration, and features of NetSure 211 C45
embedded power supply system (abbreviated as ‘system’ hereinafter).
1.1 Model Description

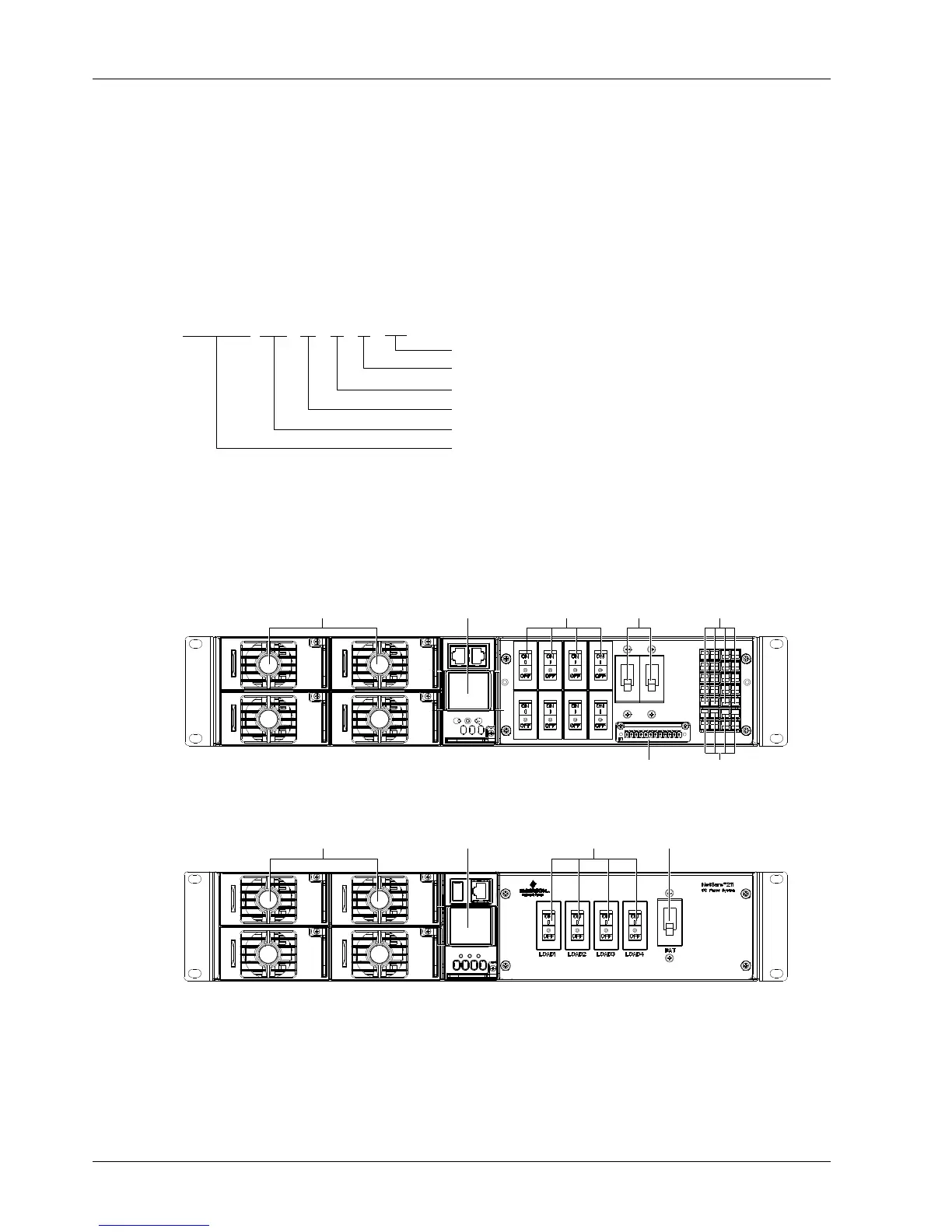

The model description of the system is given in Figure 1-1.
NetSure 211 C 4
Region: China
Type of the rectifier: R48-1000
Brand name of the system
5
Version No.
The number of the rectifier in the typical power supply system: 4
S1
Configuration
-
Figure 1-1 Model description
1.2 Composition And Configuration
NetSure 211 C45 power supply system has two models, NetSure 211 C45-S1 and NetSure 211 C45-S2. The
appearances of the two systems are shown in Figure 1-2 and Figure 1-3.
Rectifier Monitoring module Load MCB Load socket
Battery MCB
Battery socket
Dry contact and temperature
probe connection terminal
Figure 1-2 Appearance of NetSure 211 C45-S1 power supply system
Rectifier Monitoring module Load MCB Battery MCB
Figure 1-3 Appearance of NetSure 211 C45-S2 power supply system
